Back Panel Ports
Power Connect the Power Adapt0r that comes with your package.
Ethernet 1 x 10/100 Base-T Ethernet jack (RJ-45) to connect to your Ethernet
Network card or Ethernet Hub / Switch.
Reset To reset your ADSL Router to factory default settings. (All custom-
ised settings that you have saved will be lost!)
Please refer to the section below on how to use the
reset function.
ADSL Telephone jack (RJ-11) to connect to your
Telephone Wall Socket (ADSL line).
RJ11 for ADSL
connection to
telephone line
4 x RJ-45
Ports for 10/100
Ethernet LAN
Reset
factory
defaults
Power jack
for AC power
adaptor

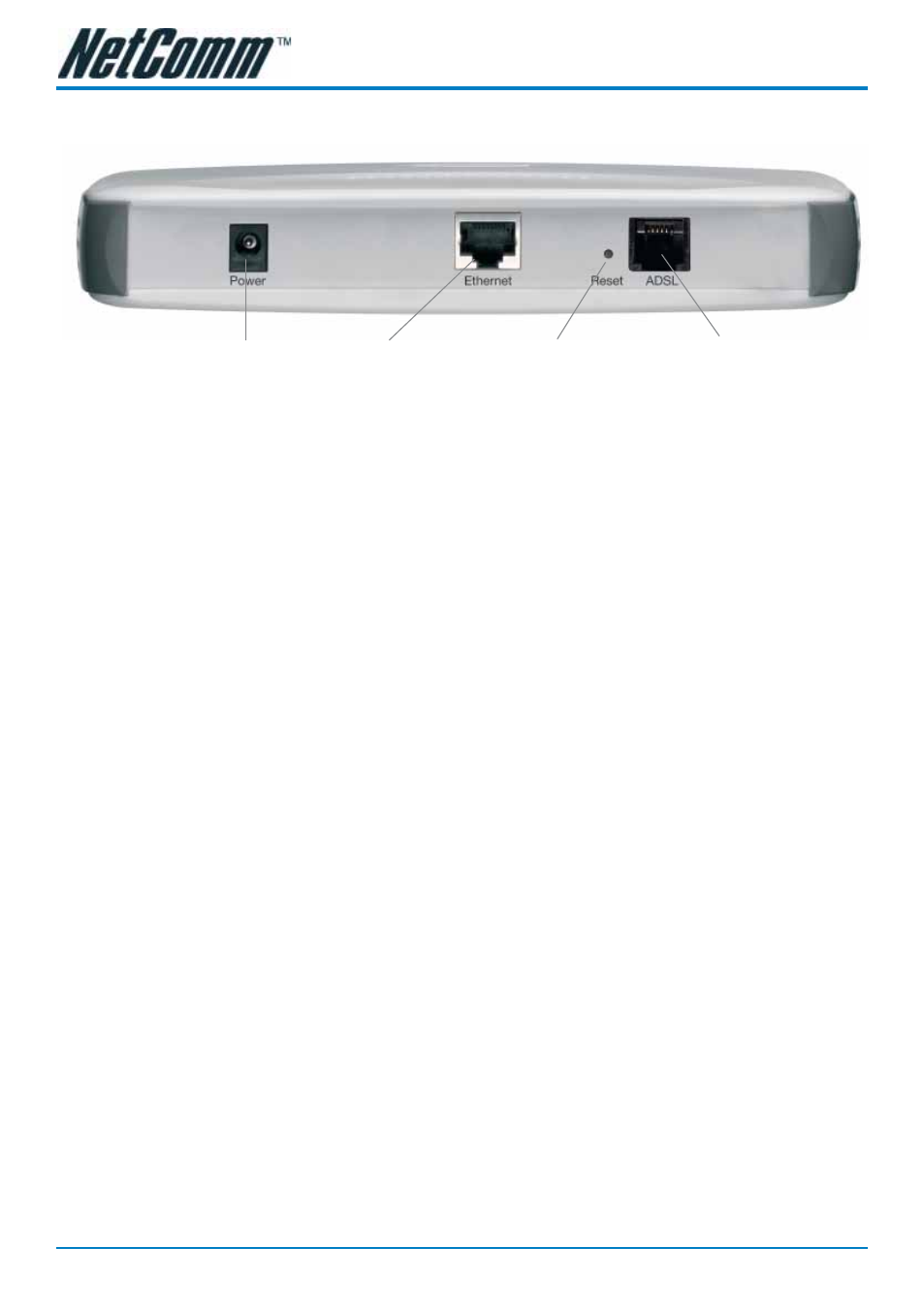

Rear Panel of the NB1
