ZR-4630 Source-Component Programming Worksheet
A completed source-component Programming Worksheet is required for each source-component included in
the system. The programming information that should be included is detailed in figures 44, 45, and 46.
53
PROGRAMMING OVERVIEW
5
PROGRAM FUNCTION KEY IR COMMANDS
FUNCTION KEY/BUTTON SOURCE IR COMMAND FUNCTION KEY/BUTTON SOURCE IR COMMAND
5
PROGRAM FUNCTION KEY IR COMMANDS
FUNCTION KEY/BUTTON SOURCE IR COMMAND FUNCTION KEY/BUTTON SOURCE IR COMMAND
5
PROGRAM FUNCTION KEY IR COMMANDS
FUNCTION KEY/BUTTON SOURCE IR COMMAND FUNCTION KEY/BUTTON SOURCE IR COMMAND

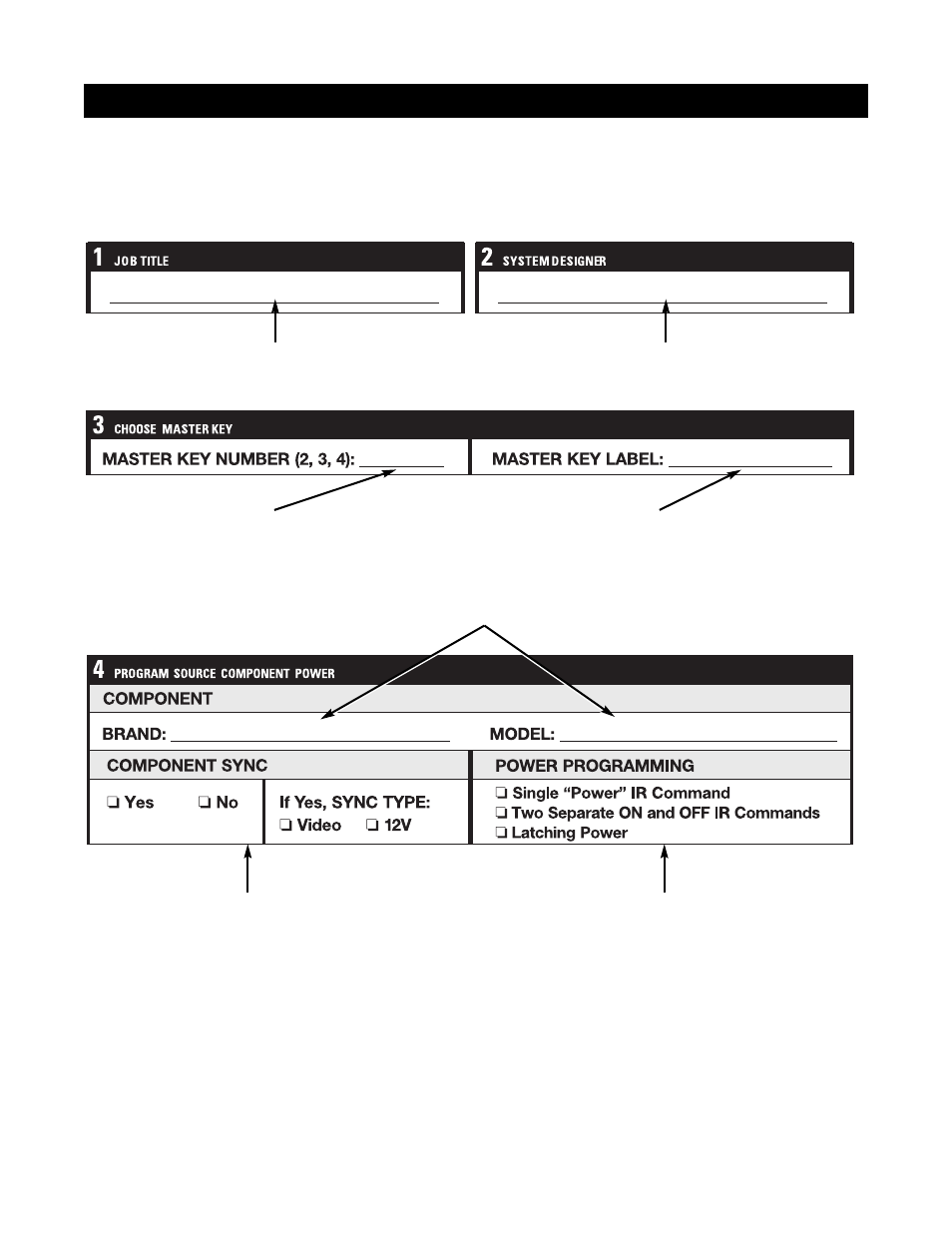

Document the customer’s name. Document the system designer’s name.
Document the number of the Master Key Document the label used for the Master Key
(i.e., source component, music category, or
DSS/Radio Station, etc.)
Mr. Smith Joe Installer
2 DVD
Denon DVD-2800
✗
✗
✗
Document the brand and model number of the source component that is associated with the Master Key
Document if the source-component is connected to a
sync input. If yes, document the sync type
Document the type of activation
the source component requires
Figure 44
