CONFIGURATION 6 – MULTIPLE SOLO ™ MASTER KEYPAD MODULES IN A ZONE
The single zone of a Niles ZR-4630 MultiZone Receiver can be expanded to contain multiple Solo ™ Master
Keypad Modules providing control from many locations within the zone. A Niles IntelliPad ® Ci Expander ™ is
required to connect multiple keypads in a single zone. A maximum of five Solo ™ Master Keypad Modules can be
included in a single zone using two Expanders.
In Figure 10, two Solo ™ Master Keypad Modules are installed on either side of a bed. When connected, all key-
pads in a zone work in tandem (i.e., all control the same zone and display the same Zone ON/OFF, Mute, and
Input Select Status.)
SYSTEM CONFIGURATIONS

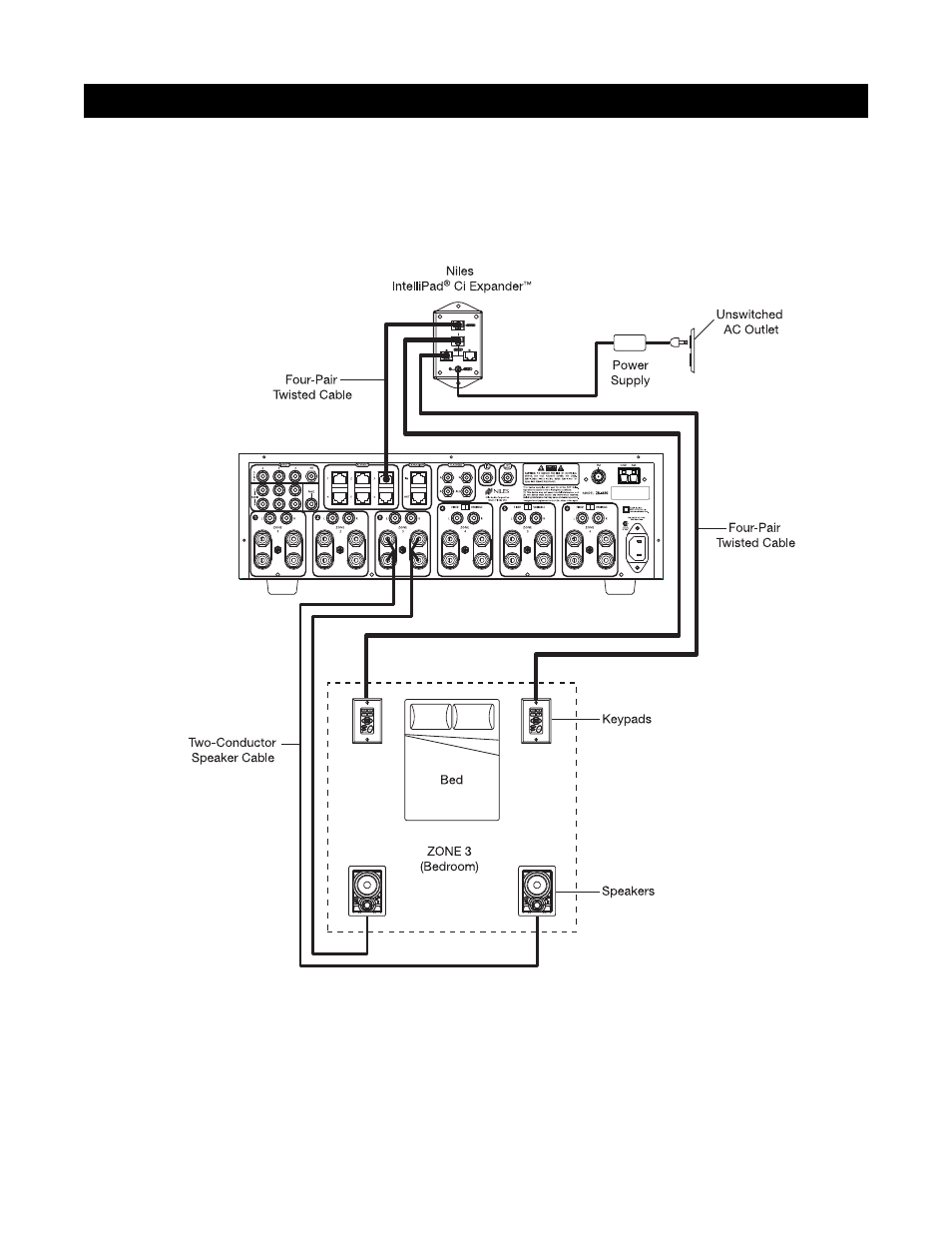

Figure 10
