ZR-4630 Programming Worksheet
A completed Tuner and Zone Label Programming Worksheet is required for each ZR-4630 installed in a system.

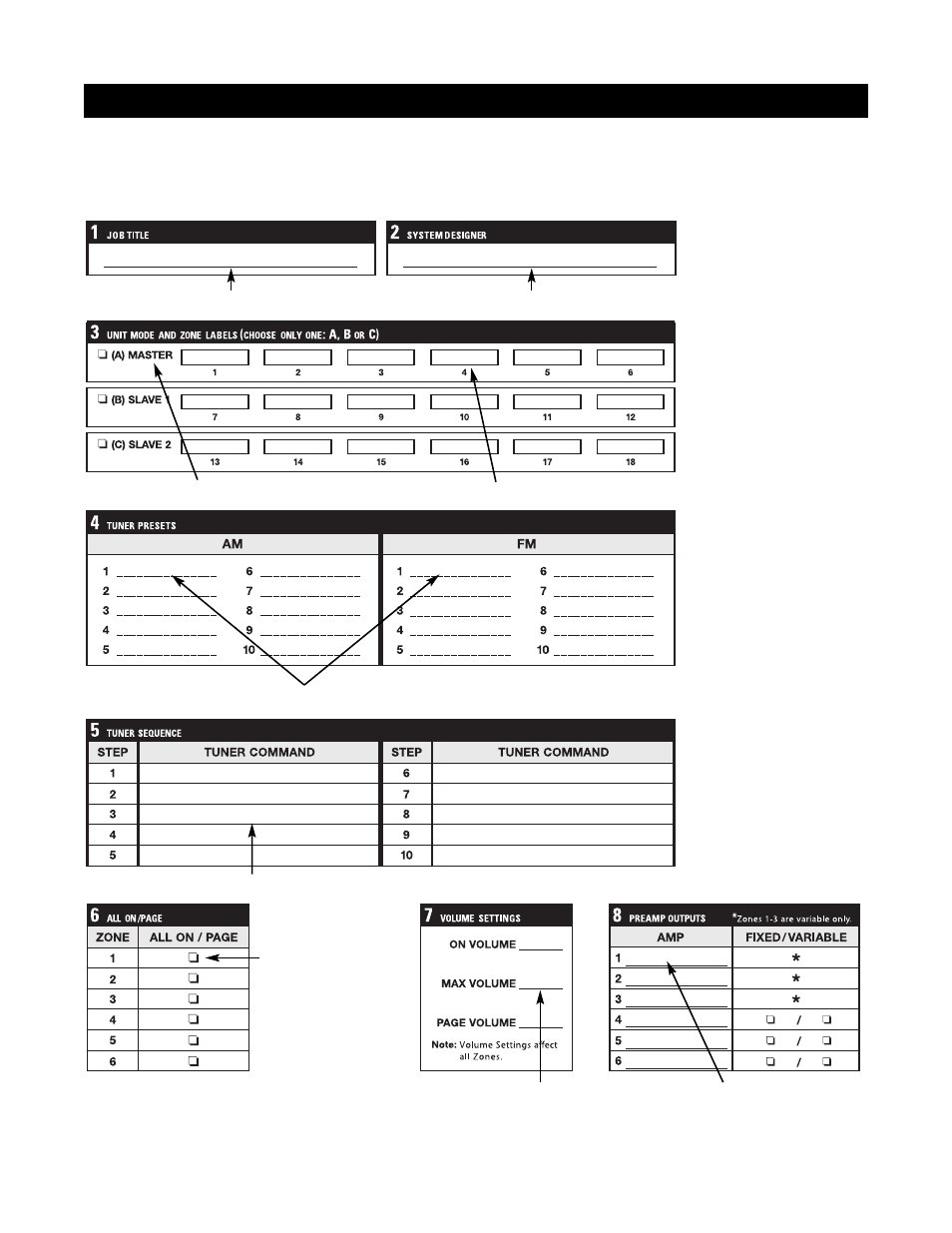

The programming information that should be included is detailed in figure 43.
52
PROGRAMMING OVERVIEW
Document the customer’s name. Document the system designer’s name.
Document the Master, Slave 1, or Slave 2 setting. Document the Labels used for the Zone Label slots.
Document the AM and FM Presets stored in the Tuner Memory.
Document the Tuner Sequence.
Mr. Smith Joe Installer
Kitchen
✗
Patio Jacuzzi Exercise Bedroom Terrace
620
830
910
1010
1050
93.9
94.9
96.5
100.7
102.3
1070
1090
1110
1140
1160 103.5
104.7
105.1
106.5
107.9
FM
Figure 43
Fav
1
There are DIP switches
on the front panel to
determine which zones
will be enabled to the
ALL-ON and PAGE fea-
tures.
Document the numeric value
for each volume setting. Document the amplifier to which the preamp
outputs are connected, and the mode selected
(i.e., fixed or variable for zones 4, 5, and 6). Check the ones that have been enabled to the
ALL-ON/PAGE feature.
