Page 46
CONNECTING IR SENSORS
An IR sensor can be connected to a Solo
™
Master Keypad Module with a CAT 5 cable. See Figure 34 for wiring
instructions employing T568A architecture.
46
CONNECTIONS
Connecting IR Receivers

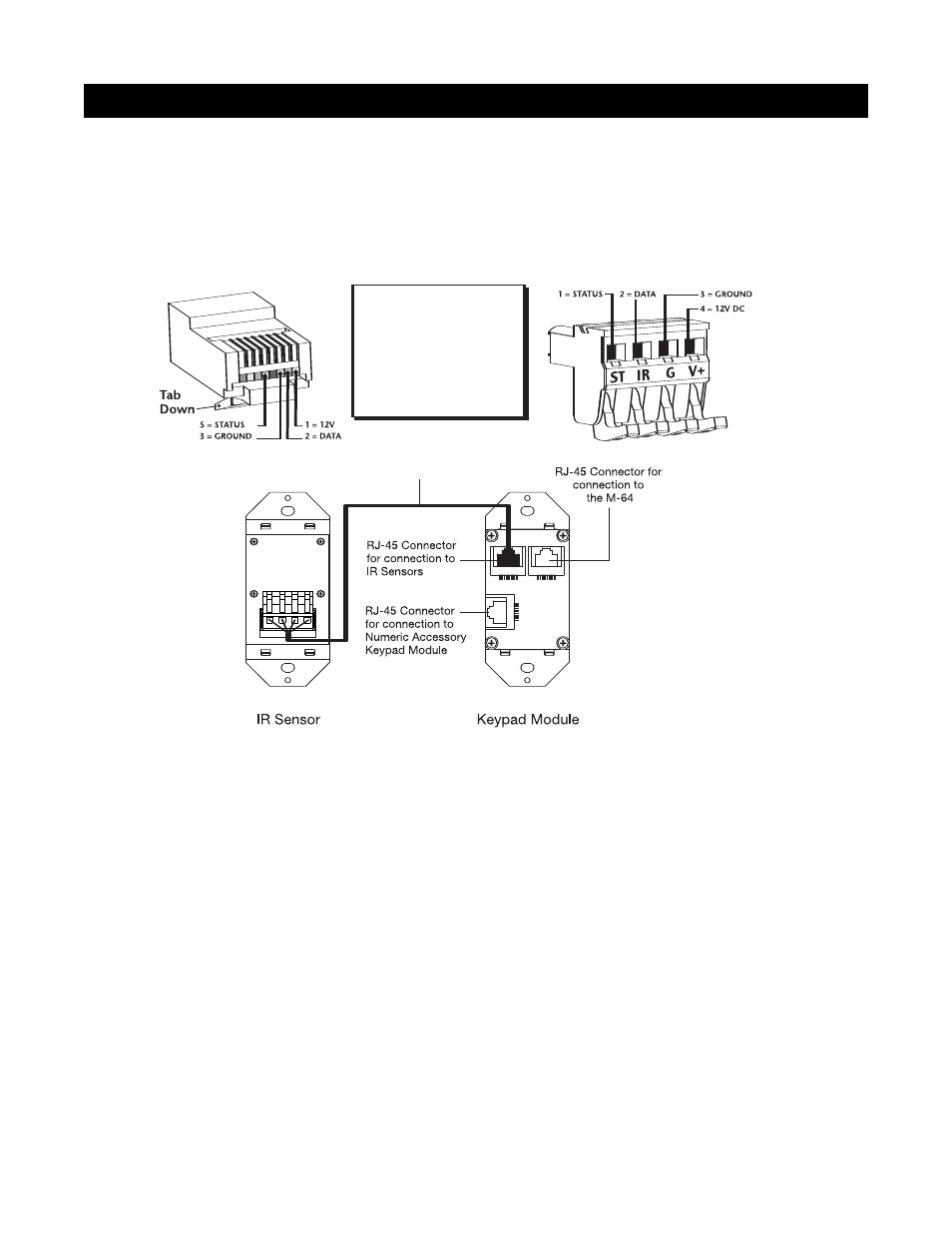

Figure 34
T568A
1 = Blue/White - 12V
2 = Green - DATA
3 = Orange/White - GROUND
4 = Green/White - EMPTY
5 = Blue/White - STATUS
6 = Orange - EMPTY
7 = Brown/White - EMPTY
8 = Brown - EMPTY
KEYPAD
ACCESORY
IR SENSOR
SYSTEM
CAT 5 Cable
WS-100
Solo Master
