Configuration options 61
• Multi-mode fiber supporting four superloops
• Multi-mode fiber supporting two superloops

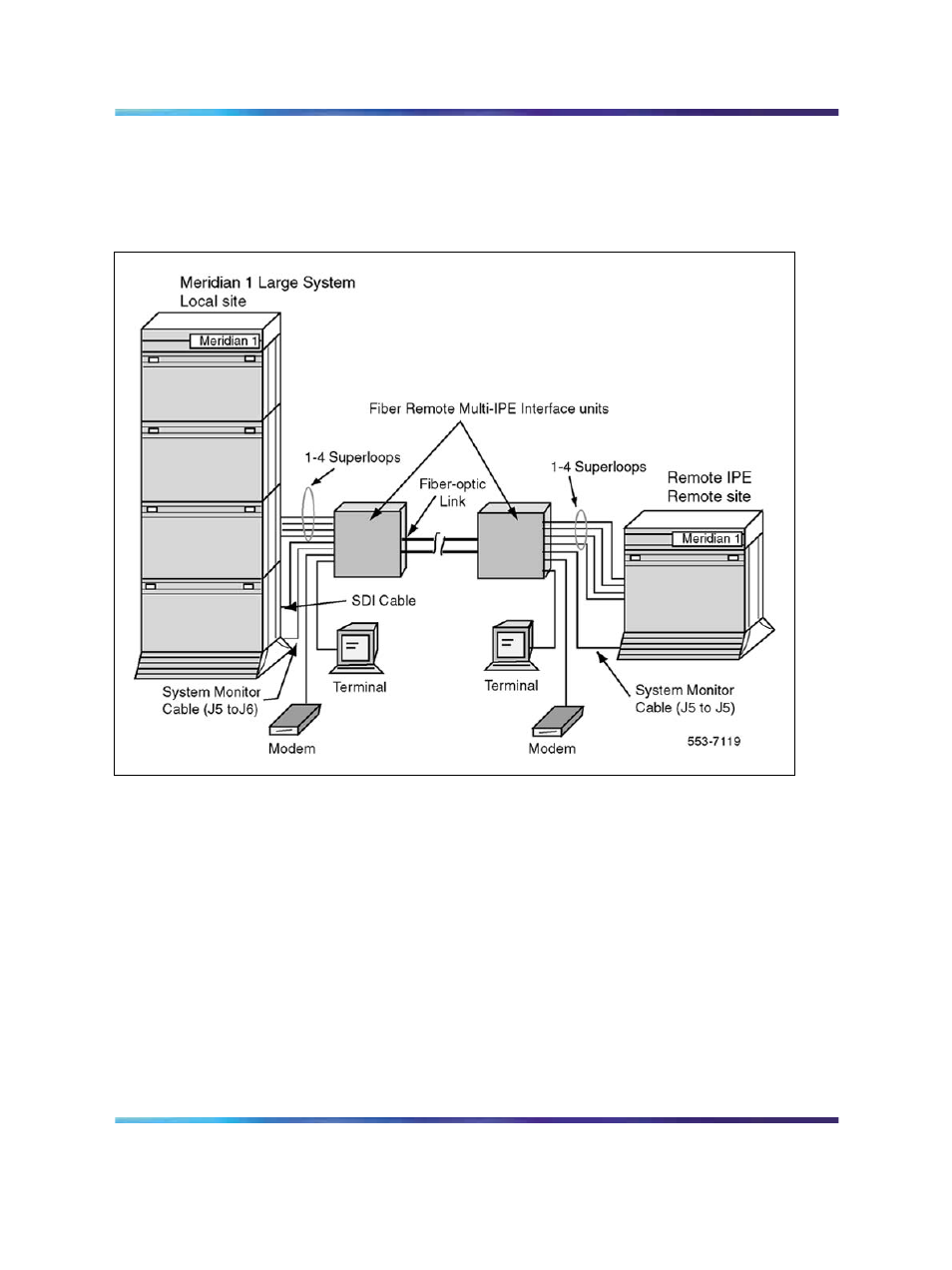

Figure 20
Meridian 1 Large System to Remote IPE connection over fiber-optic link
For more information on Fiber Remote IPE, seeFiber Remote IPE
Fundamentals (NN43021-554). For more information on the Fiber Remote
Multi-IPE Interface, see Fiber Remote Multi-IPE Interface Fundamentals
(N43021-556).
Carrier Remote IPE
The Carrier Remote IPE provides functionality by installing only IPE modules
and IPE cards at a distant site. The Remote IPE shares the system’s
Common and Network Equipment to provide the same functions and
features to remote subscribers that are available to local system subscribers.
