System architecture

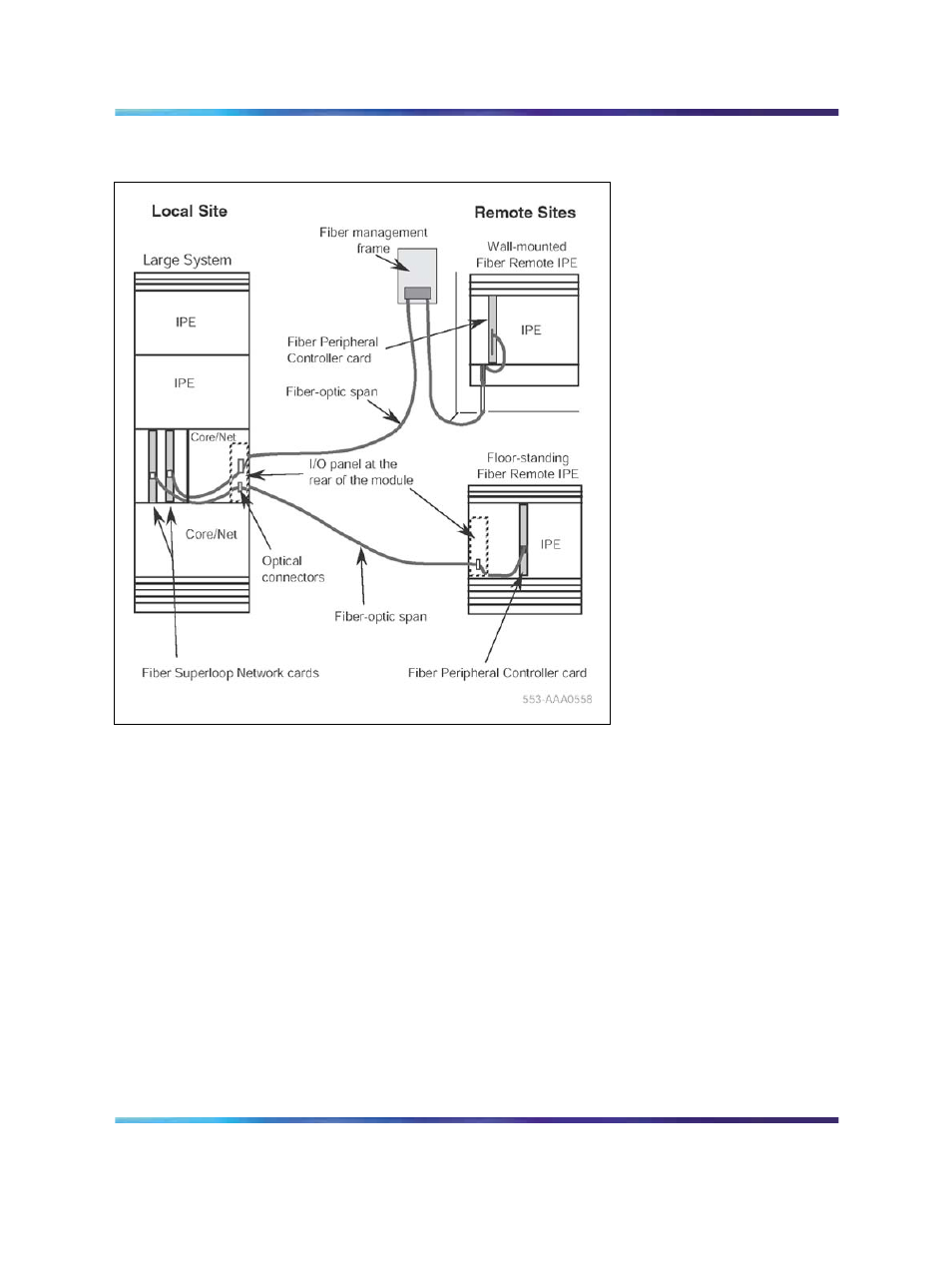

Figure 19
Large System to Remote IPE site
Fiber Remote Multi-IPE Interface
The Fiber Remote Multi-IPE Interface links a Large System with one or
more Remote IPE sites to provide Meridian 1 Large System functionality.
Since the remote IPE system uses the Common Equipment and Network
Equipment of the associated local Large System, it can deliver the same
features and functionality as the local system.
System to Remote IPE connection over fiber-optic link" (page 61)
illustrates
the fiber-optic connection between the local system and remote system.
The Fiber Remote Multi-IPE Interface links the local and remote systems
using a fiber-optic link over a single-mode optical fiber.
The Fiber Remote Multi-IPE Interface is available in four options which allow
the same configuration of the superloop connections at the remote site as
the configuration of the IPE modules at the local site:
•
Single-mode fiber supporting four superloops
•
Single-mode fiber supporting two superloops
