Hardware Installation
NVIDIA Corporation
October 17, 2007 | DU-03597-001_v01 21
Fan Connections

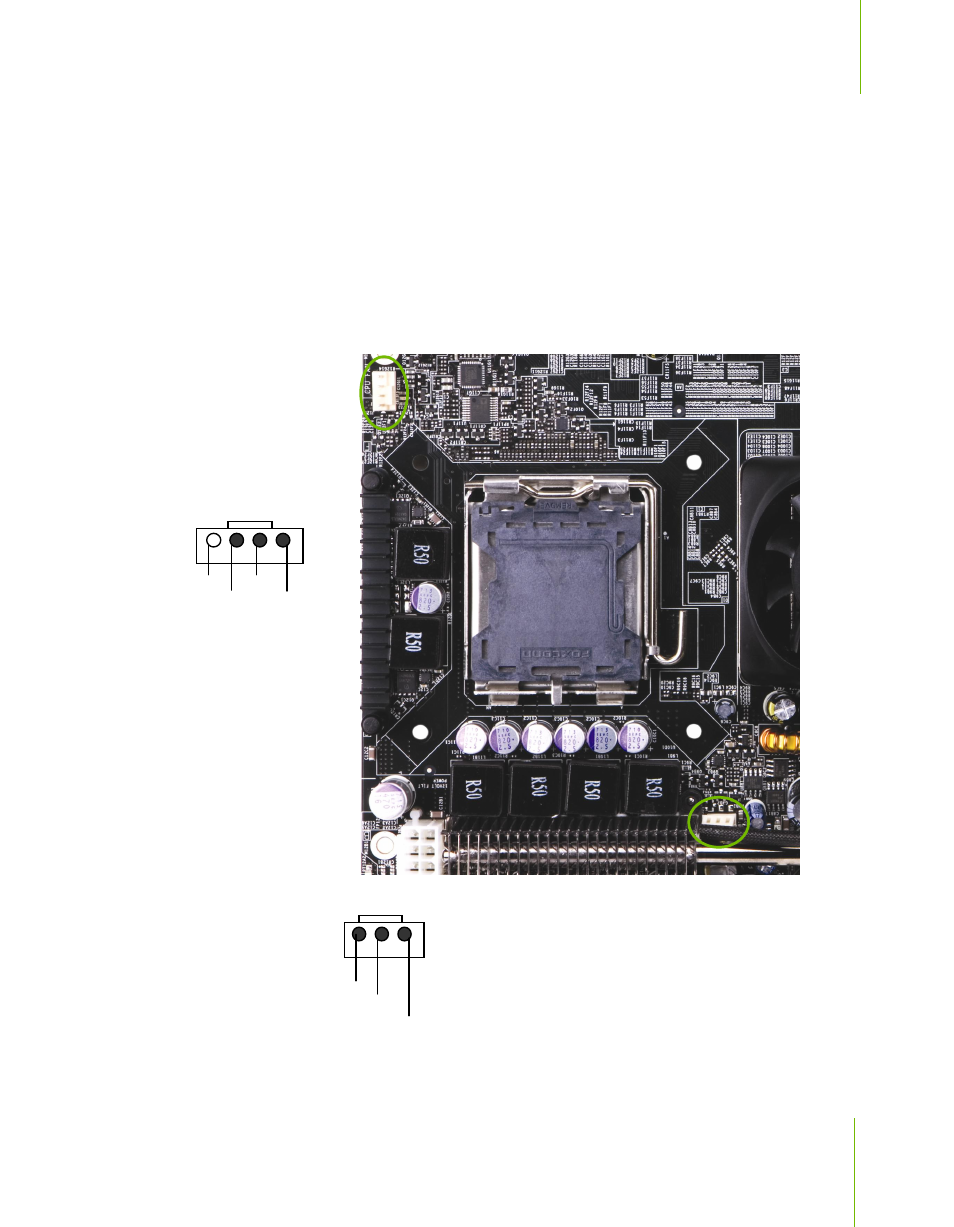

There are five fan connections on the motherboard. The fan speed can be
detected and viewed in the
PC Health Status section of the CMOS Setup. The
fans are automatically turned off after the system enters S3, S4 and S5 mode.
Note that the CPU fan cable
can be either a 3-pin or a
4-pin connector. Connect a
3-pin connector to pins 1,
2, and 3 on the
motherboard connector.
CPU Fan Connector
4 3 2
GND SENSE
PWR CONTROL
Install the fan over the nForce 780i SLI SPP to
draw heat from the MCP. The fans plug into a 3-
pin connector.
Fan Connector
3 2
1
GND
+12V
SENSE
nForce 780i SLI SPP/MCP fan connector.
