q FDD
q IDE
q Serial ATA II
q Chassis Fans
q Rear panel USB 2.0 Adapter
q Expansion slots
q CMOS jumper settings
See Figure 1 on page 5 to locate the connectors and jumpers referenced in the
following procedure.
Power Connections
To support 3-way SLI, this motherboard has the following specific power
supply requirements:
q Minimum 1000 W peak power
q Six PCI-E power connectors configured in either of the following
configurations (see Figure 3):
Ø Four 6-pin (3x2) and two 8-pin (4x2) PCI-E power connectors
or
Ø Six 6-pin (3x2) PCI-E power connectors

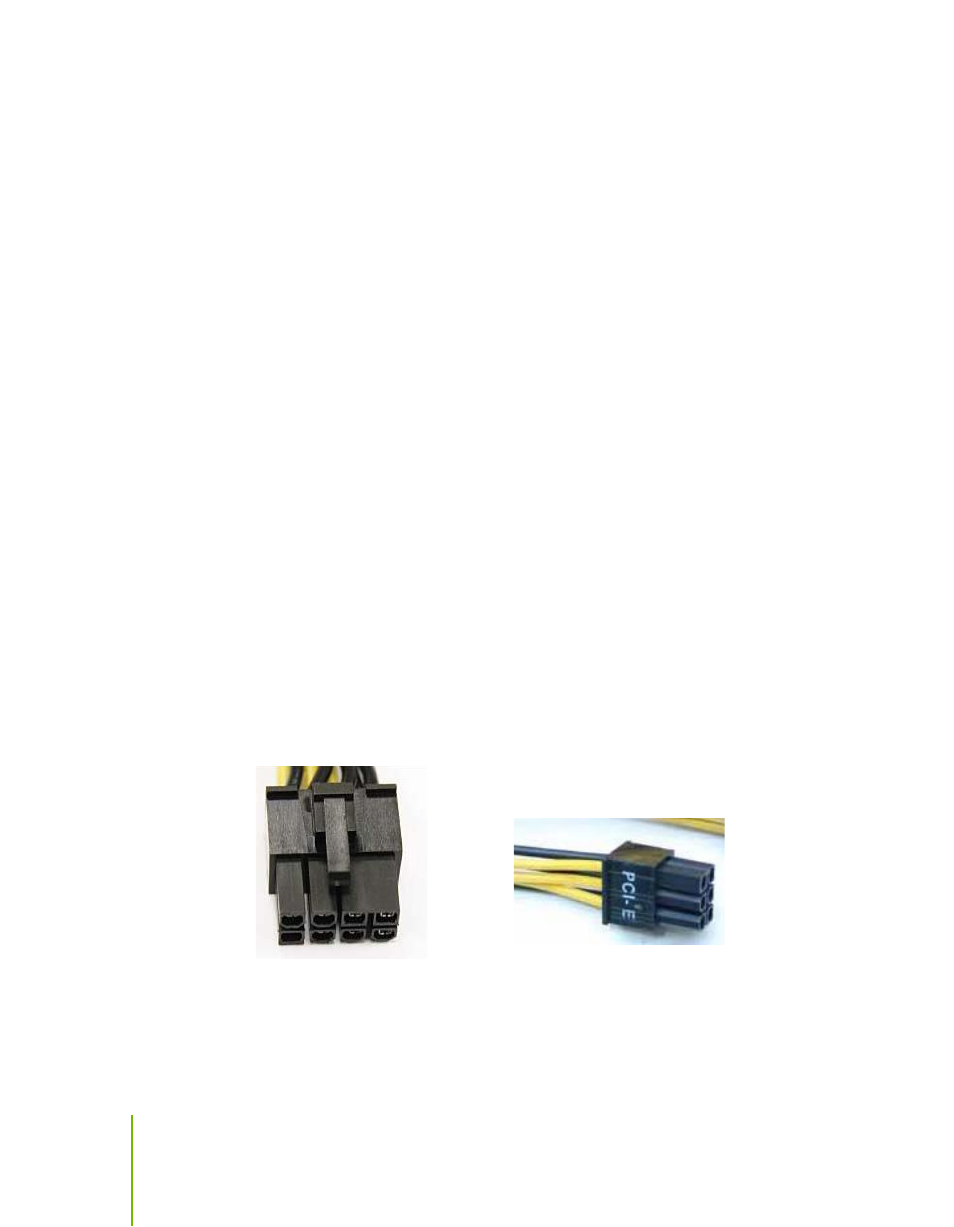

8-pin (4x2) PCT-E Connector 6-pin (3x2) PCI-E connector
Figure 3. Power Supply Connectors
