780i 3-Way SLI Motherboard
NVIDIA Corporation
6 October 17, 2007 | DU-03597-001_v01
1. PS/2 Mouse Port
2. PS/2 Keyboard Port
3. 1394a (Firewire) Port
4. USB 2.0 ports (SIX)
5. SPDIF output
6. Port
2-Channel 4-Channel 6-Channel/8-Channel
Blue Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In
Orange Center/Subwoofer
Black Rear Speaker Out Rear Speaker Out
Grey
7. Lan Port with LEDs to indicate status.
• Yellow/Light Up/Blink = 10 Mbps/Link/Activity
• Yellow and Green/Light Up/Blink = 100 Mbps/link/Activity
• Green/Light Up/Blink = 1000 Mbps/Link/Activity

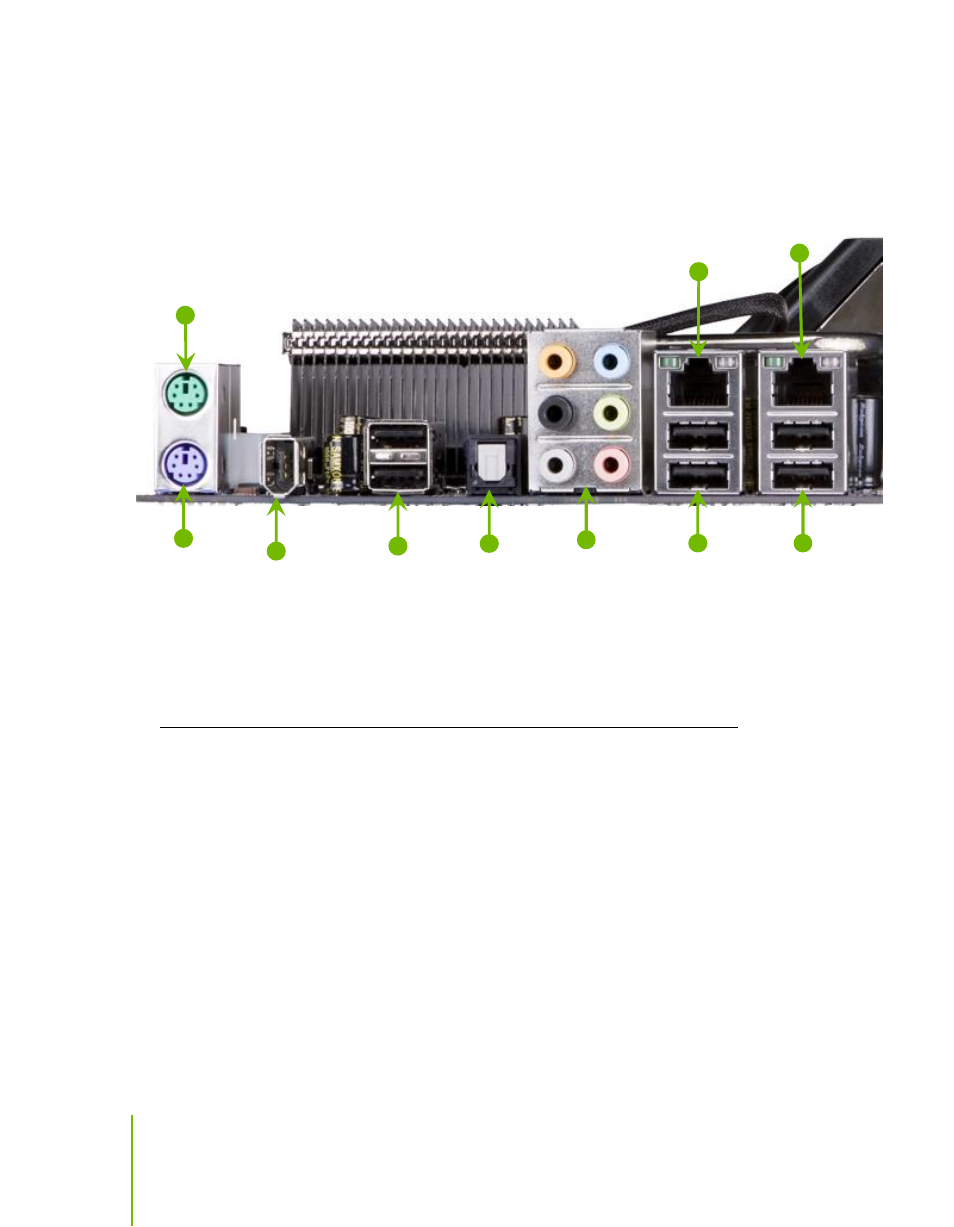

Figure 2. Chassis Backpanel Connectors
1
2
5
6
7
4
3
4
7
4
