Nvidia NFORCE 780I SLI User Manual
Page 15

nForce 780i SLI Motherboard
NVIDIA Corporation
October 17, 2007 | DU-03597-001_v01
5
1. CPU Socket
11. USB headers
21. SPDIF connector
2. NVIDIA SPP with Active fan
12. Motherboard battery
22. PCI slots
3. CPU fan connector
13. Fan connector
23. PCI Express x16 slots (SLI)
4. DDR DIMM Slots 0 - 3
14. Serial connector
24. 1394a connector
5. 24-pin ATX Power Connector
15. Front panel connector
25. PCI Express x1 slot
6. IDE Connector
16. Jumper
26. Backpanel connectors (Figure 2)
7. Serial-ATA (SATA) connectors
17. Power button
27. Heat dissipater
8. FDD connector
18. Reset Button
28. 8-pin ATX_12V power connector
9. NVIDIA MCP (passive heat sink)
19. Azalia HD Audio Header
29 MCP/SPP fan connector
10. Serial-ATA (SATA) connectors
20. FP Audio connector

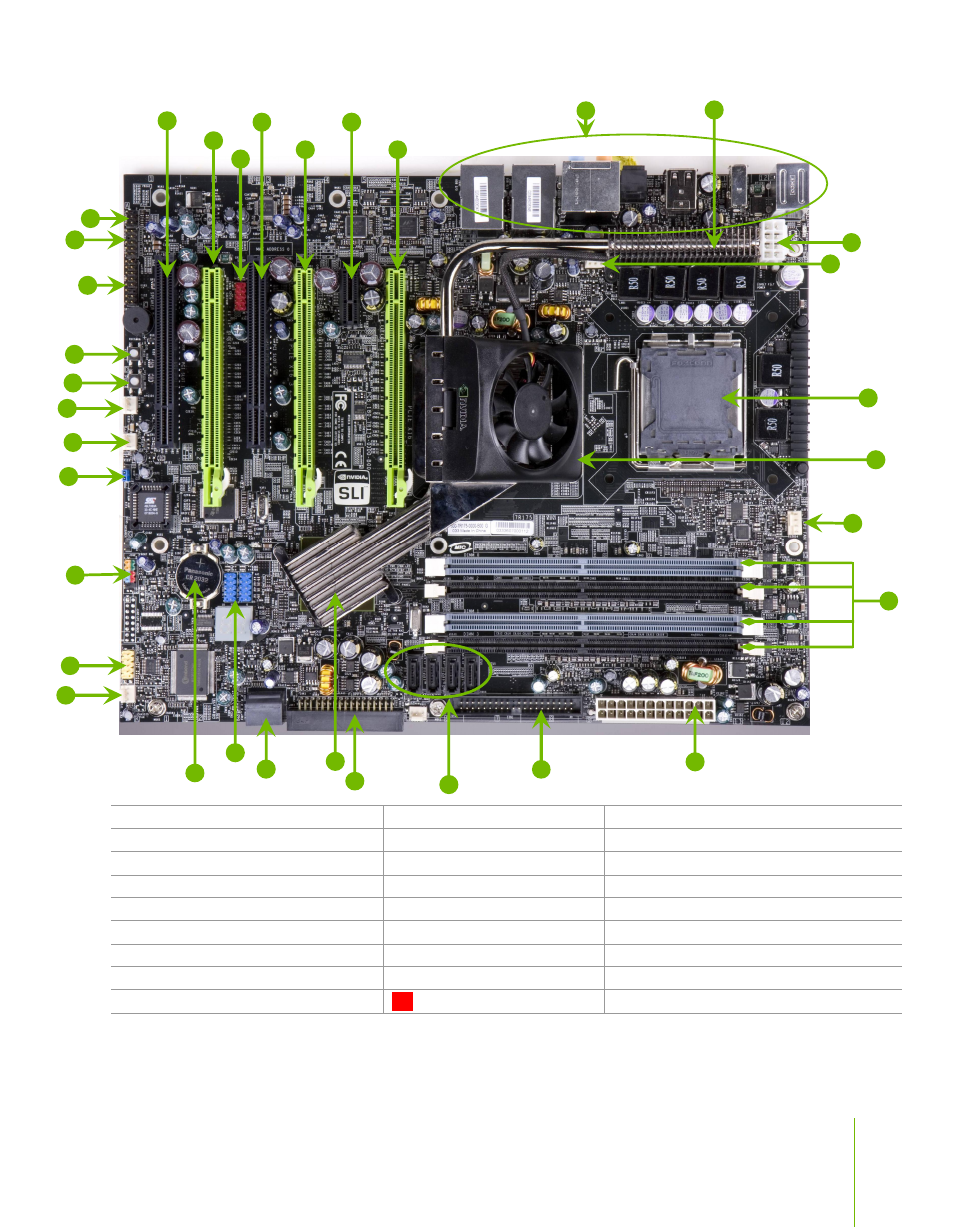

Figure 1.
NVIDIA nForce 780i SLI Motherboard Layout
2
1
4
3
5
10
8
9
7
6
4
13
14
15
16
22
23
22
25
23
26
28
11
12
20
23
24
17
13
13
27
29
19
21
18
