4

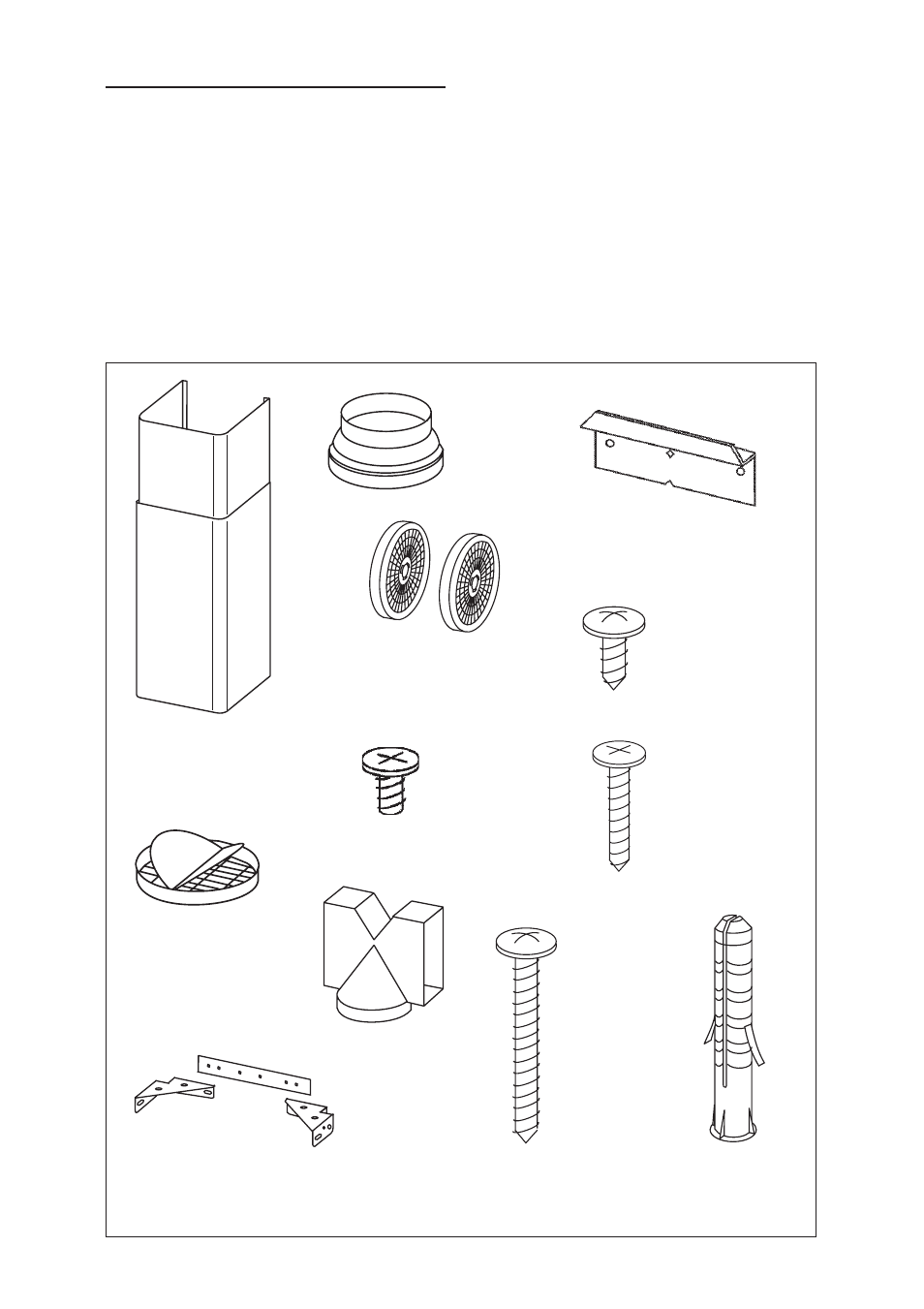

PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Adapter
2 - Non-ducted recirculation filters
1 - Parts Bag (B080810471) containing:
1 - Mounting Bracket
1 - Discharge Collar
1 - Flue Mounting Bracket
MOUNTING
BRACKET
DISCHARGE
COLLAR
FLUE MOUNTING BRACKET 8 MOUNTING SCREWS
(4.8 x 38mm Pan Head)
8 DRYWALL
ANCHORS
4 MOUNTING
SCREWS (3.9 x
9.5mm Pan Head)
DECORATIVE
FLUE
4 MOUNTING
SCREWS
(3.4 x 15mm Flat
Head)
8 - Mounting Screws
(4.8 x 38mm Pan Head)
4 - Mounting Screws
(3.9 x 9.5mm Pan Head)
8 - Drywall Anchors
1 - Plenum
4 - Mounting Screws
(3.4 x 15mm Flat Head)
2 - Mounting Screws
(3.9 x 6mm Flat Head)
1 - Installation Instructions
ADAPTER
NON-DUCTED
RECIRCULATION
FILTERS
PLENUM
fig.1
2 MOUNTING
SCREWS
(3.9 x 6mm Flat
Head)
