NEC T5 - Manual (Page 16)

Packard Bell EasyNote T5 Disassembly Manual Page 16

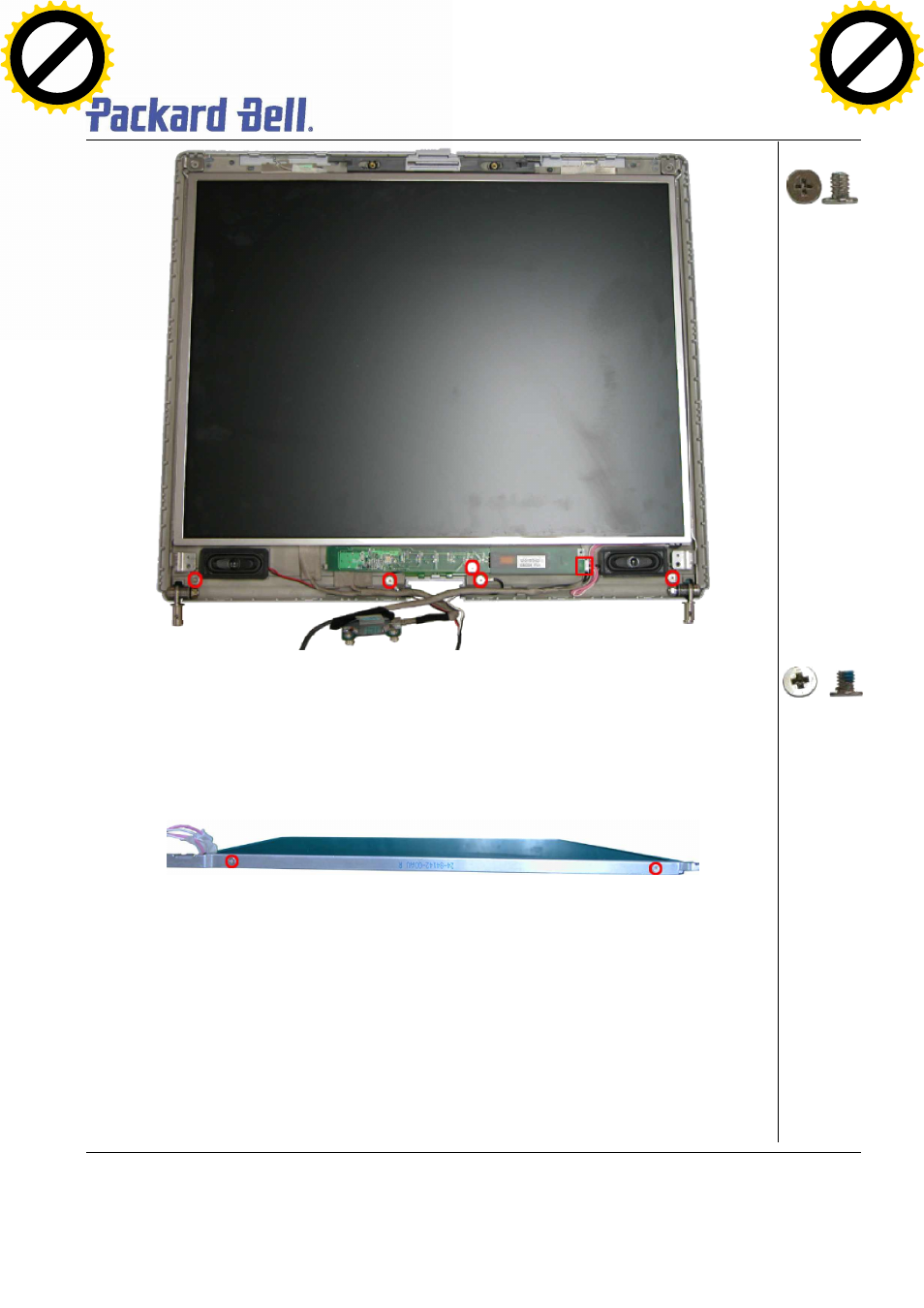

Fig. 24 Removing the inverter board screws
4. Carefully lift up LCD panel and disconnect the LCD cable from the penal.
5. Remove the screws at both sides of the LCD panel in order to release the LCD hinges as
shown in Fig. 25 .
Fig. 25 Removing the LCD Panel hinges
Removing the Top Cover
M2x5 Silver
M2x3.5 Silver
