Packard Bell EasyNote T5 Disassembly Manual
Page 11
Removing heat plate
), then perform the following steps:

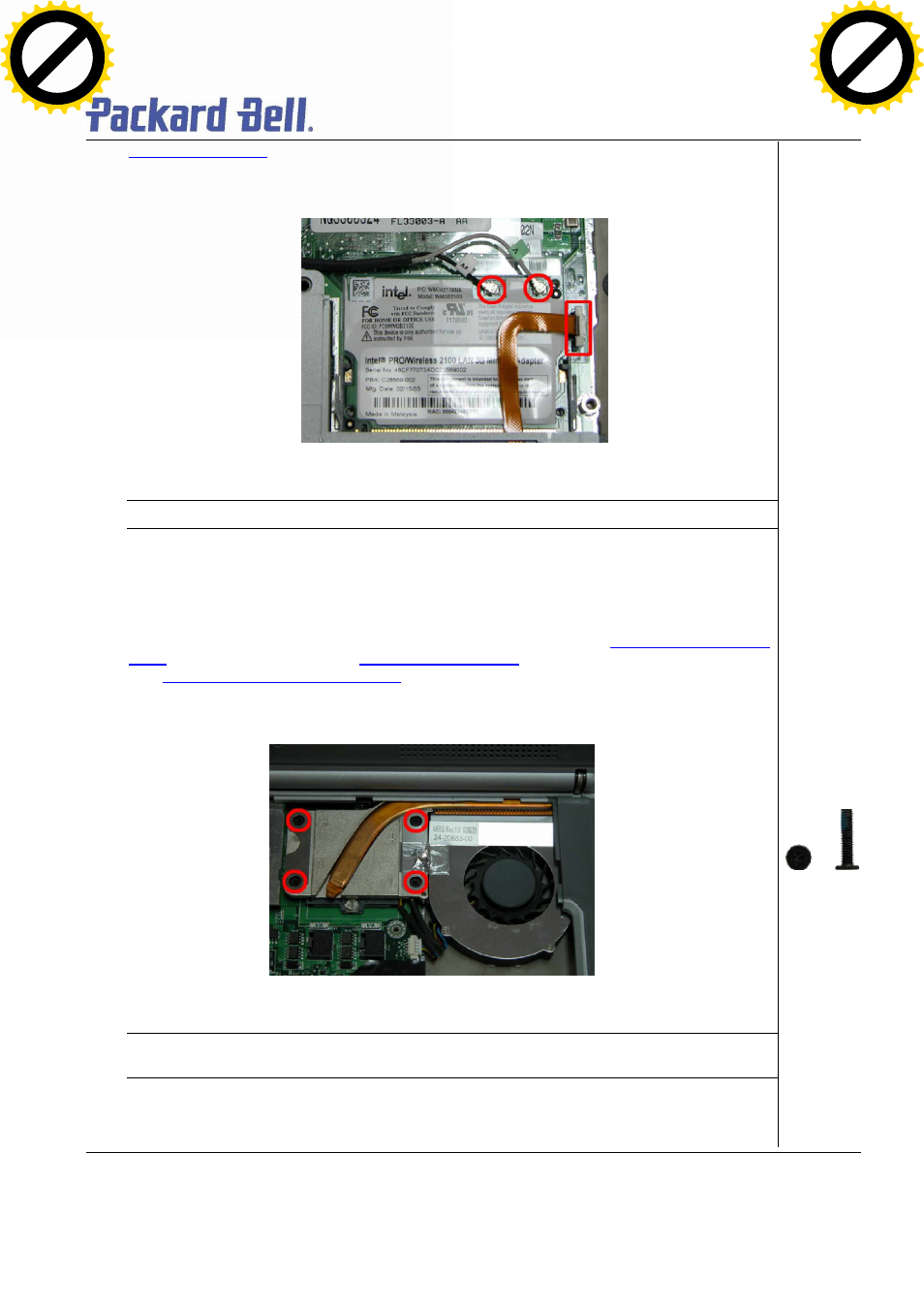

1. Disconnect the wireless antenna connectors as shown in Fig. 14
Fig. 14 Disconnecting the wireless antenna
Note: You might consider disconnecting the touch pad flat cable before removing the wireless module.
2. Unclip the wireless module to release it from slot and put it aside.
Removing Heat Sink & CPU
To remove the Heat Sink & CPU, first remove the Keyboard Cover (see
Removing the keyboard
cover
), remove the keyboard (see
Removing the keyboard
), remove optical drive & heat plate
(see
Removing optical drive & heat plate
) then perform the following steps:
1. Release the screws on the heat sink in descending order (4
а3а2а1) as shown in Fig. 15
Fig. 15 Releasing the heat sink screws
Note: When assembly the heat sink, tighten the heat sink screws according to the ascending order
(1
а2а3а4). This is to ensure a well distributed pressure over the CPU and to prevent damaging the CPU
2. Carefully remove the heat sink from the CPU socket as shown in Fig. 16
M2.5x11 Black
