Connection Status
Click the Connection Status button on the Router Status screen to view the connection status:
This screen shows the following statistics:
ADSL Link
Downstream or
Upstream
These statistics
might help your
technical support
representative if
there is a connection
problem. Connection Speed Typically, the downstream speed is faster than the upstream
speed.
Line Attenuation The line attenuation increases the further you are physically
located from your ISP’s facilities.
Noise Margin This is the signal-to-noise ratio and is a measure of the quality
of the signal on the line.
Poll Interval Specifies the interval at which the statistics are updated in this
window. Click Stop to freeze the display.

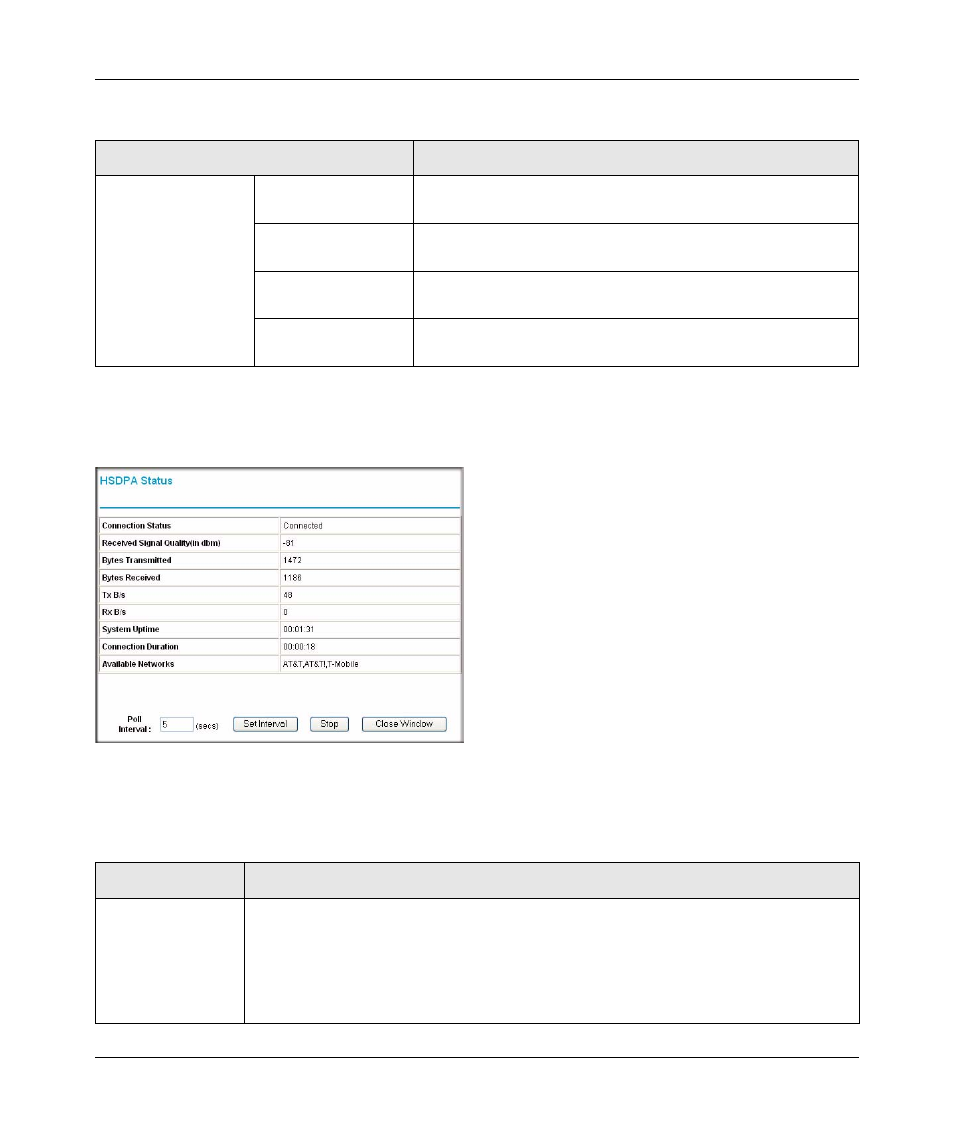

Figure 4-5
Table 4-3. Connection Status Fields for HSDPA Status
Field Description
Connection Status The status of the Internet connection.
• Scanning. The modem is scanning for broadband wireless networks in your area.
• Connected. The router is connected to the Internet.
• No USB Device Attached. The router does not detect a USB modem connected to
its USB port. Either the modem is disconnected, or it is not correctly seated. To
correct the problem remove the modem and reinsert it into the port.
Table 4-2. Router Statistics Fields (continued)
Field Description
