800TL Series Front-End Loader Specifications

Loaders for TM & TG Tractors

Page 5 of 7

LOADER MODEL

850TL

Loader type, NSL or MSL

NSL

MSL

NSL

MSL

TRACTOR FAMILY

TM (SS)

TRACTOR MODELS

120-155

Lift capacity @ max. height @ 800 mm, lb. (kg)

4300 (1950)

4650 (2109)

4300 (1950)

4650 (2109)

Lift capacity @ max. height @ pins, lb. (kg)

6050 (2744)

5350 (2427)

6050 (2744)

5350 (2427)

Lift capacity @ 59 in. high @ 800 mm, lb. (kg)

4750 (2155)

5100 (2313)

4750 (2155)

5100 (2313)

Lift capacity @ 59 in. high @ pins, lb. (kg)

6750 (3062)

5950 (2699)

6750 (3062)

5950 (2699)

Breakout force @ 800 mm, lb. (kg)

5000 (2268)

5350 (2427)

5000 (2268)

5350 (2427)

Breakout force @ pins, lb. (kg)

7200 (3266)

6300 (2858)

7200 (3266)

6300 (2858)

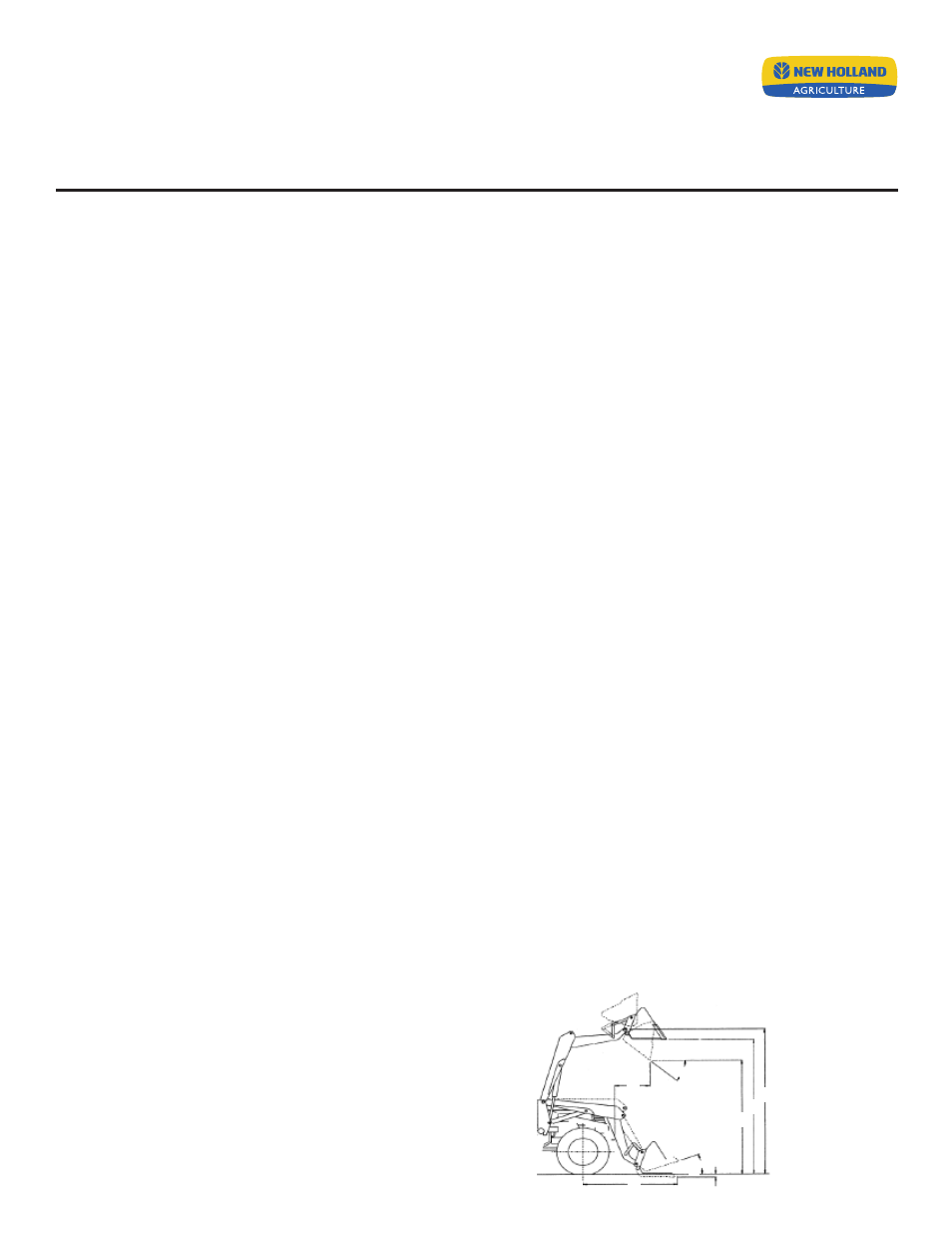

Max. lift height, in. (mm)

(A)..........................................................................................167 (4242).....................................................................................

Max. lift height under level bucket, in. (mm)

(B)..........................................................................................155 (3937).....................................................................................

Clearance w/bucket dumped, in. (mm)

(C)

129 (3277)

136 (3454)

Reach @ max. lift height, in. (mm)

(D)

31 (787)

38 (965)

Max. dump angle, degrees

(E)

Reach @ ground line, in. (mm)

(F)

107 (2718)

108 (2743)

107 (2718)

Bucket rollback angle, degrees

(G).................................................................................................43............................................................................................

Digging depth, in. (mm)

(H).............................................................................................5 (127)........................................................................................

Raising time, seconds

4.6

4.1

4.6

4.1

Lowering time, seconds

3.7

3.2

3.7

3.2

Bucket dump time, seconds

3.2

2.5

3.2

2.5

Bucket rollback time, seconds

...................................................................................................2.5 ...........................................................................................

Approx. weight, lb. (kg) (loader w/o bucket)

1385 (628)

1570 (712)

1385 (628)

1570 (712)

LOADER MODEL

860TL

870TL

Loader type, NSL or MSL

MSL

TRACTOR FAMILY

TG (SS)

TRACTOR MODELS

175-190

215-305

Lift capacity @ max. height @ 800 mm, lb. (kg)

4900 (2223)

5250 (2381)

Lift capacity @ max. height @ pins, lb. (kg)

5450 (2472)

5950 (2699)

Lift capacity @ 59 in. high @ 800 mm, lb. (kg)

5450 (2472)

6500 (2948)

Lift capacity @ 59 in. high @ pins, lb. (kg)

6300 (2858)

7550 (3425)

Breakout force @ 800 mm, lb. (kg)

5800 (2631)

7000 (3175)

Breakout force @ pins, lb. (kg)

6650 (3016)

8150 (3697)

Max. lift height, in. (mm)

(A)

176 (4470)

187 (4750)

Max. lift height under level bucket, in. (mm)

(B)

164 (4166)

175 (4445)

Clearance w/bucket dumped, in. (mm)

(C)

138 (3505)

150 (3810)

Reach @ max. lift height, in. (mm)

(D)

31 (787)

35 (889)

65 (1651)

Max. dump angle, degrees

(E)

Reach @ ground line, in. (mm)

(F)

115 (2921)

109 (2769)

Bucket rollback angle, degrees

(G)

Digging depth, in. (mm)

(H)

7 (178)

6 (152)

Raising time, seconds

4.6

3.4

Lowering time, seconds

3.7

2.7

Bucket dump time, seconds

2.9

1.8

Bucket rollback time, seconds

2.9

1.8

Approx. weight, lb. (kg) (loader w/o bucket)

1675 (760)

1780 (807)

NSL = non self leveling MSL = mechanical self leveling (ss) = SuperSteer

NOTES: Specification based on ASAE (S301.3) and are subject to change without notice.

Dimensional and performance specifications are based on typical tractors and tire sizes.
