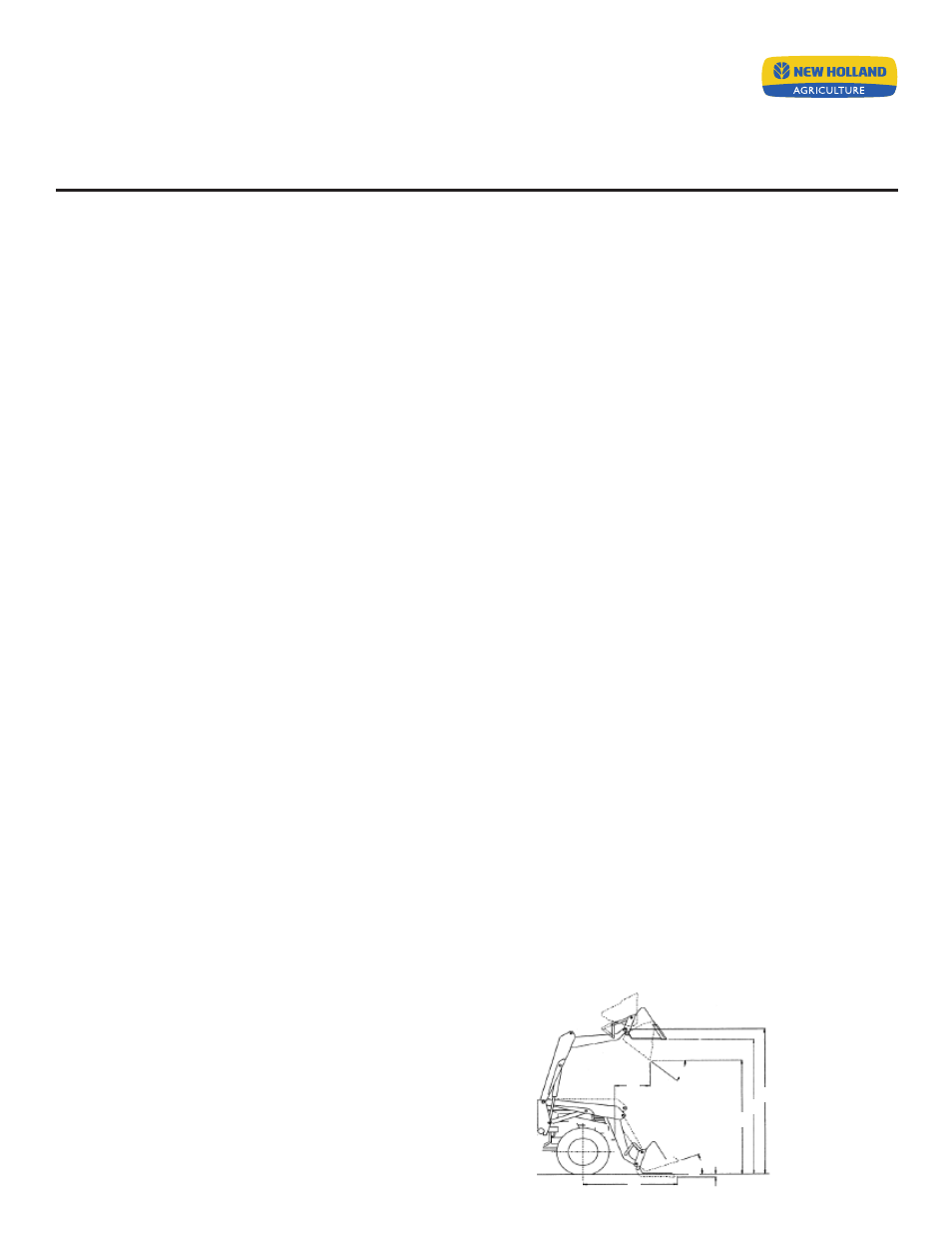

800TL Series Front-End Loader Specifications
Loaders for TS-A Tractors
Page 3 of 7
A
B
C
D
E
F
H
G
LOADER MODEL
830TL
830TL
Loader type, NSL or MSL
NSL
MSL
TRACTOR FAMILY
TS-A
TS-A
TRACTOR MODELS
100-110
100-110
Lift capacity @ max. height @ 800 mm, lb. (kg)
3150 (1429)
3350 (1520)
Lift capacity @ max. height @ pins, lb. (kg)
4750 (2155)
4100 (1860)
Lift capacity @ 59 in. high @ 800 mm, lb. (kg)
3550 (1610)
3800 (1724)
Lift capacity @ 59 in. high @ pins, lb. (kg)
5400 (2449)
4650 (2109)
Breakout force @ 800 mm, lb. (kg)
3800 (1724)
4100 (1860)
Breakout force @ pins, lb. (kg)
5850 (2654)
5000 (2268)
Max. lift height, in. (mm)
(A)
145 (3683)
145 (3683)
Max. lift height under level bucket, in. (mm)
(B)
133 (3378)
133 (3378)
Clearance w/bucket dumped, in. (mm)
(C)
107 (2718)
107 (2718)
Reach @ max. lift height, in. (mm)
(D)
31 (787)
31 (787)
Max. dump angle, degrees
(E)
63
62
Reach @ ground line, in. (mm)
(F)
92 (2337)
92 (2337)
Bucket rollback angle, degrees
(G)
43
43
Digging depth, in. (mm)
(H)
8 (203)
8 (203)
Raising time, seconds
4.1
3.6
Lowering time, seconds
3
2.5
Bucket dump time, seconds
3.4
2.6
Bucket rollback time, seconds
2.6
2.6
Approx. weight, lb. (kg) (loader w/o bucket)
1135 (515)
1290 (585)
LOADER MODEL
840TL
840TL
840TL
840TL
Loader type, NSL or MSL
NSL
MSL
NSL
MSL
TRACTOR FAMILY
TS-A
TS-A
TS-A (SS)
TS-A (SS)
TRACTOR MODELS
115-135
115-135
115-135
115-135
Lift capacity @ max. height @ 800 mm, lb. (kg)
3700 (1678)
3950 (1792)
3700 (1678)
3950 (1792)
Lift capacity @ max. height @ pins, lb. (kg)
5350 (2427)
4650 (2109)
5350 (2427)
4650 (2109)
Lift capacity @ 59 in. high @ 800 mm, lb. (kg)
4200 (1905)
4400 (1996)
4200 (1905)
4400 (1996)
Lift capacity @ 59 in. high @ pins, lb. (kg)
6050 (2744)
5250 (2381)
6050 (2744)
5250 (2381)
Breakout force @ 800 mm, lb. (kg)
4400 (1996)
4750 (2155)
4400 (1996)
4750 (2155)
Breakout force @ pins, lb. (kg)
6500 (2948)
5600 (2540)
6500 (2948)
5600 (2540)
Max. lift height, in. (mm)
(A)..........................................................................................154 (3912).....................................................................................
Max. lift height under level bucket, in. (mm)
(B)..........................................................................................142 (3607).....................................................................................
Clearance w/bucket dumped, in. (mm)
(C)
116 (2946)
116 (2946)
123 (3124)
123 (3124)
Reach @ max. lift height, in. (mm)
(D)
31 (787)
31 (787)
38 (965)
38 (965)
Max. dump angle, degrees
(E)
57
56
57
56
Reach @ ground line, in. (mm)
(F)
100 (2540)
100 (2540)
102 (2591)
102 (2591)
Bucket rollback angle, degrees
(G).................................................................................................45............................................................................................
Digging depth, in. (mm)
(H).............................................................................................8 (203)........................................................................................
Raising time, seconds
3.8
3.4
3.8
3.4
Lowering time, seconds
3
2.5
3
2.5
Bucket dump time, seconds
2.9
2.1
2.9
2.1
Bucket rollback time, seconds
...................................................................................................2.1 ...........................................................................................
Approx. weight, lb. (kg) (loader w/o bucket)
1220 (553)
1370 (621)
1220 (553)
1370 (621)
NSL = non self leveling MSL = mechanical self leveling (ss) = SuperSteer
NOTES: Specification based on ASAE (S301.3) and are subject to change without notice.
Dimensional and performance specifications are based on typical tractors and tire sizes.
