Setup and assembly
17
1. Press the tilt lever to adjust the stand angle on the IP Phone. You can
adjust the stand angle to maximum, instead of removing the stand.
See Figure 2.

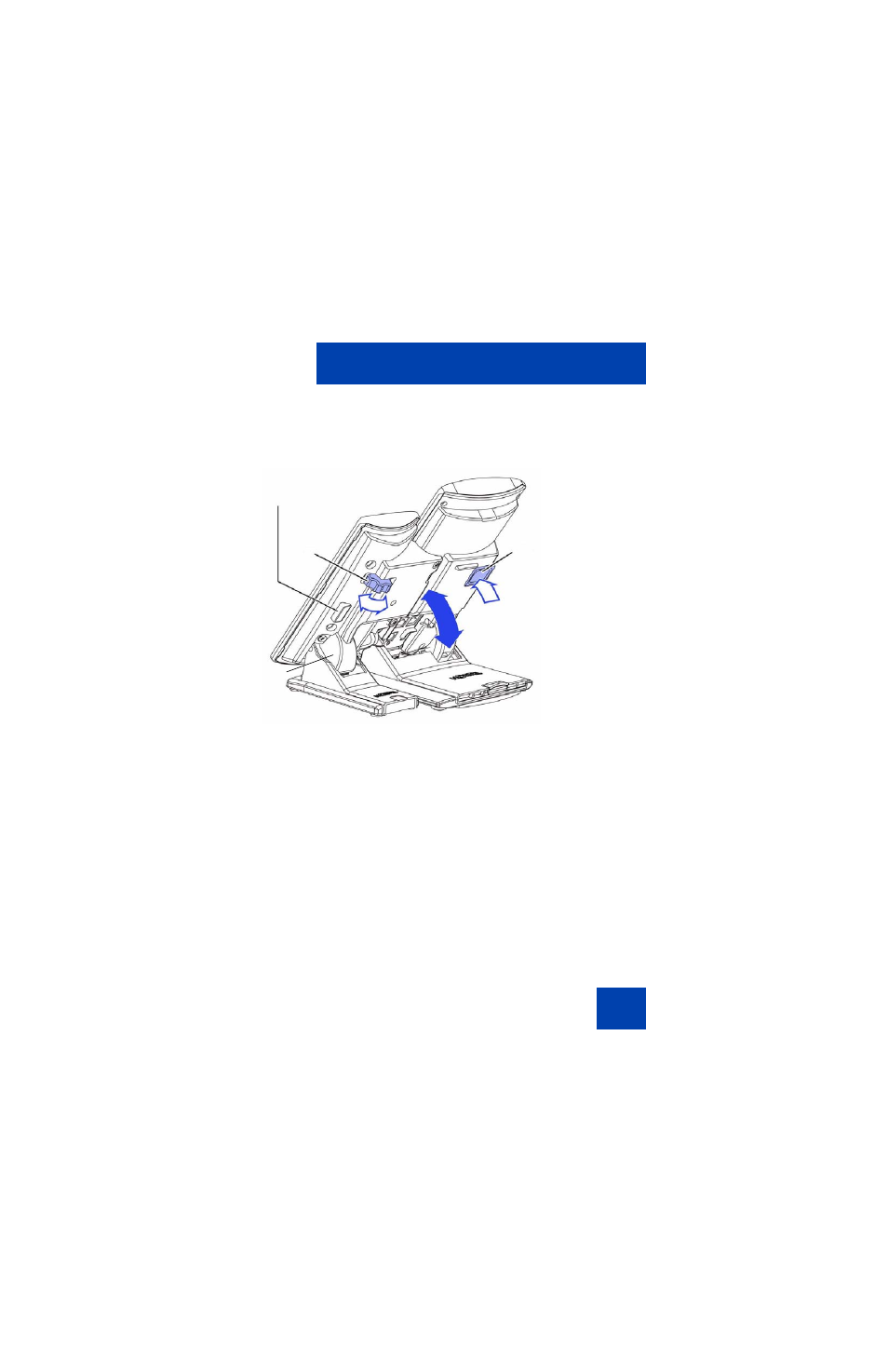

Figure 2: Adjusting the stand angle on the IP Phone
2. At the back of the IP Phone, remove the rubber plug from the AEM
port. Place the connecting arm of the Expansion Module behind the
IP Phone and align the Expansion Module connection plug to the
AEM port on the back of the IP Phone.
3. Insert the screws in to the top and bottom holes of the connecting arm of the
Expansion Module and tighten until snug. See Figure 3.
Wheel
Accessory Expansion Module (AEM) Port
Tilt
Lever
Clamp
