English
17

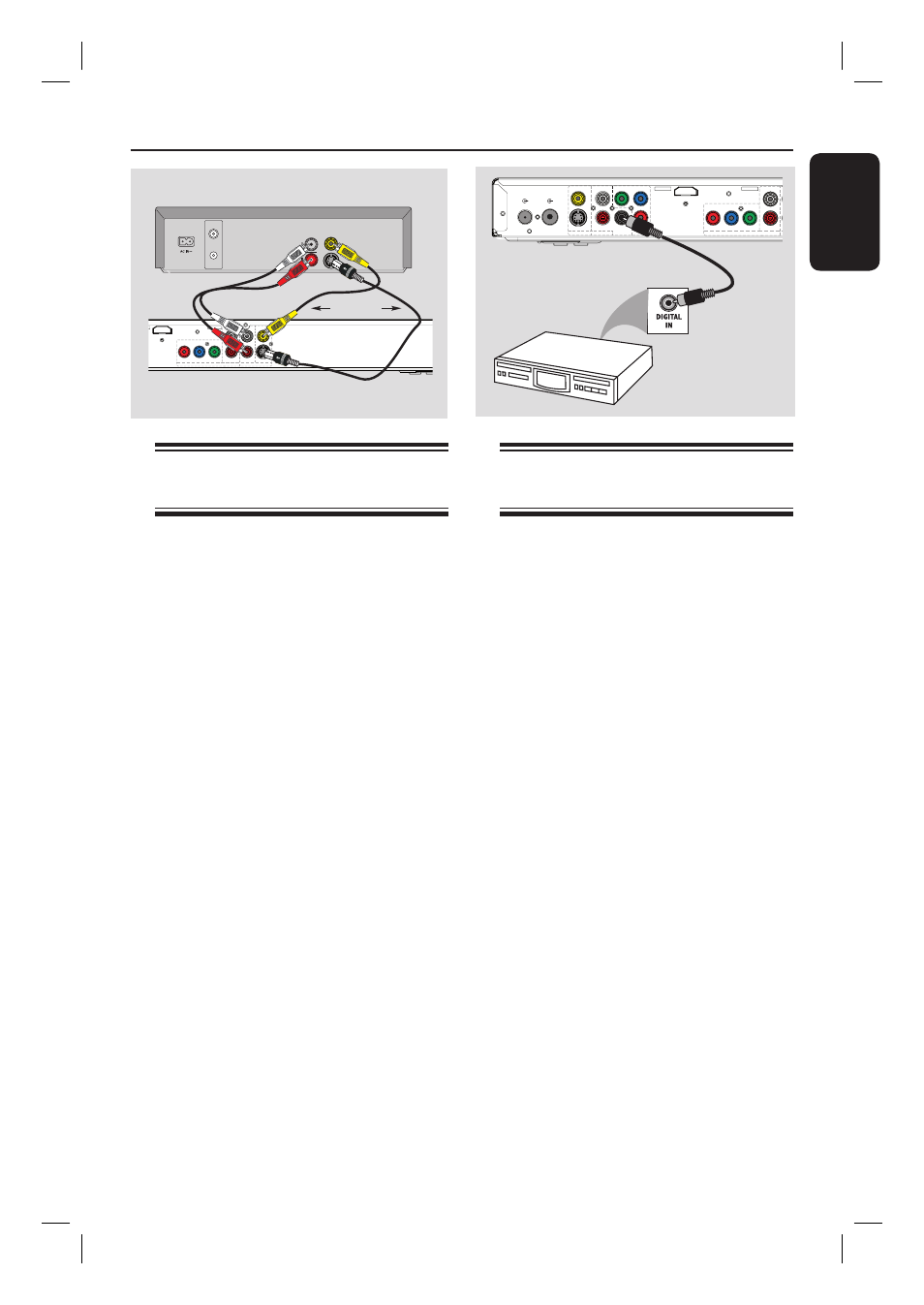

Connecting to a VCR or
other similar device
This connection enables you to record
from video tape to hard disk.
Note:
Your new recorder can replace the VCR
for all your recording needs. Just unplug
all the connections to your VCR.
A Connect the CVBS IN socket on the
recorder to the corresponding video
output sockets on the VCR or other
similar device.
Alternatively, you may use S-VIDEO
connection.
B Connect the AUDIO IN sockets on the
recorder to the corresponding audio
output sockets on the VCR or other
similar device.
Helpful Hints:
– Most commercial video cassettes and
DVDs are copy-protected and therefore
cannot be recorded.
– Connect the recorder directly to the TV. If
there is a VCR or an additional device in
between, the picture quality may be poor.
Connecting to an AV
amplifi er/receiver
You can connect the recorder to an AV
amplifi er/receiver in order to enjoy
multichannel surround sound.
Connect a coaxial cable (not supplied)
from the COAXIAL DIGITAL OUT
socket to the digital coaxial input socket
(or labelled as COAXIAL IN or DIGITAL
IN) of the connected device.
Helpful Hint:
– You have to set the appropriate Digital
Audio Output setting. Otherwise, no sound or
interference may occur. See ‘System Menu
Options - Audio settings’ for details.
Step 2: Optional Connections
(continued)
MI
T
CVBS IN
S-VIDEO IN AUDIO 2 AUDIO 1
R
L
P B P R Y
COMPONENT VIDEO IN
E X T 1
R
L
E X T 2
VHF/UHF
RF IN
VHF/UHF
RF OUT
VIDEO OUT
S-VIDEO OUT
AUDIO
OUT
VCR (example only)
ANTENNA-IN TV-OUT
HDMI
OUT
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT AUDIO OUT
AUDIO COMPONENT
VIDEO OUT
PB
PR
Y
R
L
AUDIO 1
R
L
PB PR Y
COMPONENT VIDEO IN
E X T 1
AV amplifi er/
receiver
OR
