Page 16: Cable box / satellite receiver
English
16
Step 2: Optional Connections
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an antenna output socket
(RF OUT or TO TV),
see ‘Basic Recorder Connections -
Connecting the antenna cables’ for
details.

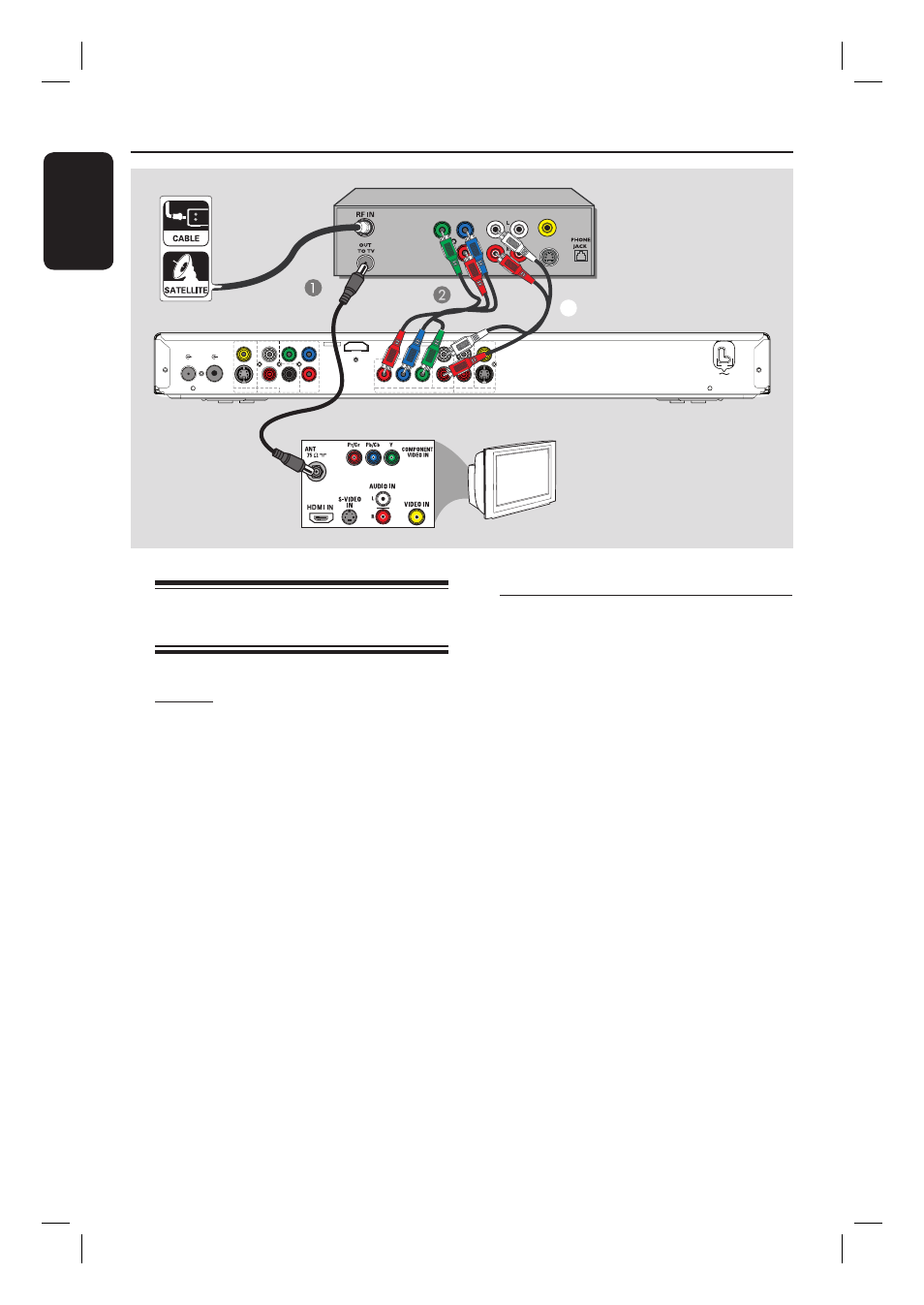

Option 2 (as shown on the above illustration)
If your Cable Box/Satellite Receiver
has other video output sockets
A
Keep the existing antenna connection
from the Cable Box/Satellite Receiver to
your TV.
B
Connect the COMPONENT VIDEO
IN sockets on the recorder to the
corresponding component video output
sockets on the Cable Box/Satellite
Receiver.
Alternatively, you may use VIDEO
(CVBS) or S-VIDEO connection.
C
Connect the AUDIO IN sockets on the
recorder to the audio output sockets on
the Cable Box/Satellite Receiver.
D
Make the video/audio connections from
the recorder to the TV. See ‘Connecting
the video/audio cable’ for details.
ANTENNA-IN
TV-OUT
HDMI
OUT
MAINS
COAXIAL
DIGITAL OUT
CVBS OUT
S-VIDEO OUT
VIDEO OUT
AUDIO OUT
AUDIO
COMPONENT
VIDEO OUT
PB
PR
Y
R
L
CVBS IN
S-VIDEO IN
AUDIO 2
AUDIO 1
R
L
PB
PR
Y
COMPONENT VIDEO IN
E X T 1
R
L
E X T 2
TV
C
COMPONENT
VIDEO OUT
PB
PR
Y
VIDEO OUT
AUDIO OUT
S-VIDEO OUT
??
???
?
??
??
???
?
???
Cable Box /
Satellite Receiver
