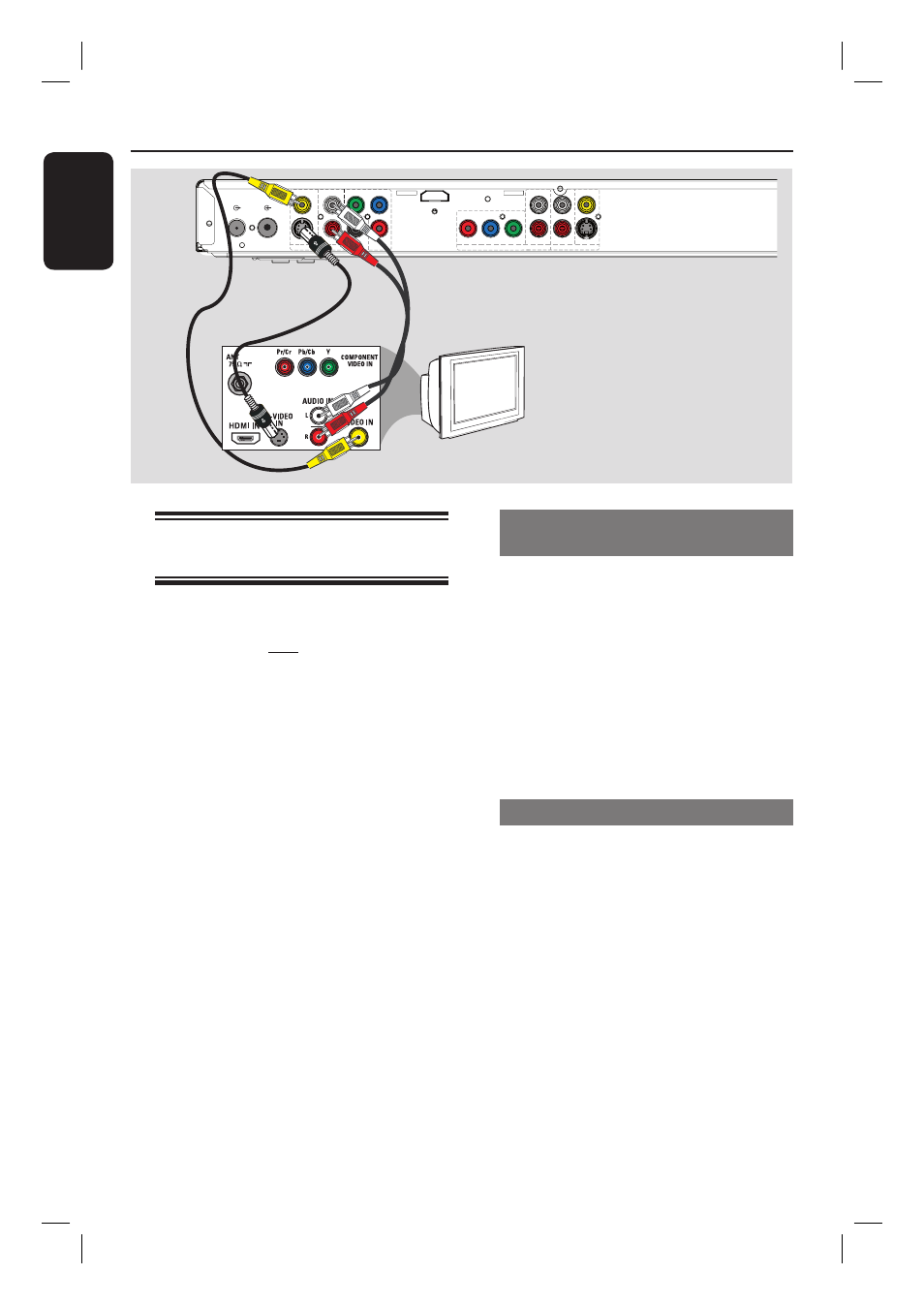

Step 1: Basic Recorder Connections
(continued)
Connecting the video/audio
cables
This connection enables you to view the
playback from this recorder. You only
need to choose one of the options
below to make your video connection.
– For a standard TV, follow option 1 or
2.
– For a progressive scan TV, follow
option 3.
– For a HDMI TV, follow option 4.
Option 1: Using the Video (CVBS)
socket
A Connect a composite video cable
(supplied) from the CVBS OUT socket
on the recorder to the video input
socket (usually labelled as A/V In, Video
In, Composite or Baseband) on the TV.
B Connect the audio cables (supplied) from
the AUDIO OUT sockets on the
recorder to the audio input sockets on
the TV.
Option 2: Using the S-Video socket
A Connect a S-video cable (not supplied)
from the S-VIDEO OUT socket on the
recorder to the S-Video input socket
(usually labelled as Y/C or S-VHS) on the
TV.
B Connect the audio cables (supplied) from
the AUDIO OUT sockets on the
recorder to the audio input sockets on
the TV.
