Panasonic SC-HT830V - Manual (Page 44)

44
RQT7921
Optional connections
≥The equipment connections described are examples.
≥Peripheral equipment and optional cables sold separately unless otherwise indicated.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥You need to subscribe to a cable TV or satellite TV service, to enjoy viewing their programming.
≥Consult your service provider regarding appropriate cable TV box or satellite receiver.
≥Select the applicable input on your television to view the output from your cable TV box/satellite receiver through this unit.
≥The signal from the cable TV box or satellite receiver passes through this unit to the television even when this unit is turned off.
≥You cannot do a timer recording unless the channel is first selected on the cable TV box or satellite receiver.
‘
Note]
When a home satellite system (Dishnetwork/DSS) is connected, auto
tuning and auto clock setting may not operate properly. Set the clock
manually (
l 36).
≥You can record and view simultaneously scrambled and
unscrambled channels if connections are made as shown in the
diagram below.
¢ For more information on connections ( l 7)
Use one of the following connections to suit the antenna lead.
≥If your TV has both lead and coaxial VHF terminals, use the lead
connection to minimize signal loss.
∫ A single twin lead
∫ A twin lead and a coaxial cable
∫ Two twin leads
Use one of the following connections to suit the antenna terminals on
your TV. Refer to the TV’s operating instructions.
∫ A twin lead and coaxial plug terminal
∫ A twin lead terminal
∫ Two twin lead terminals
∫ Multiple antenna terminals
≥Connect to one of ANT terminals, then change the TV’s setting as
necessary.

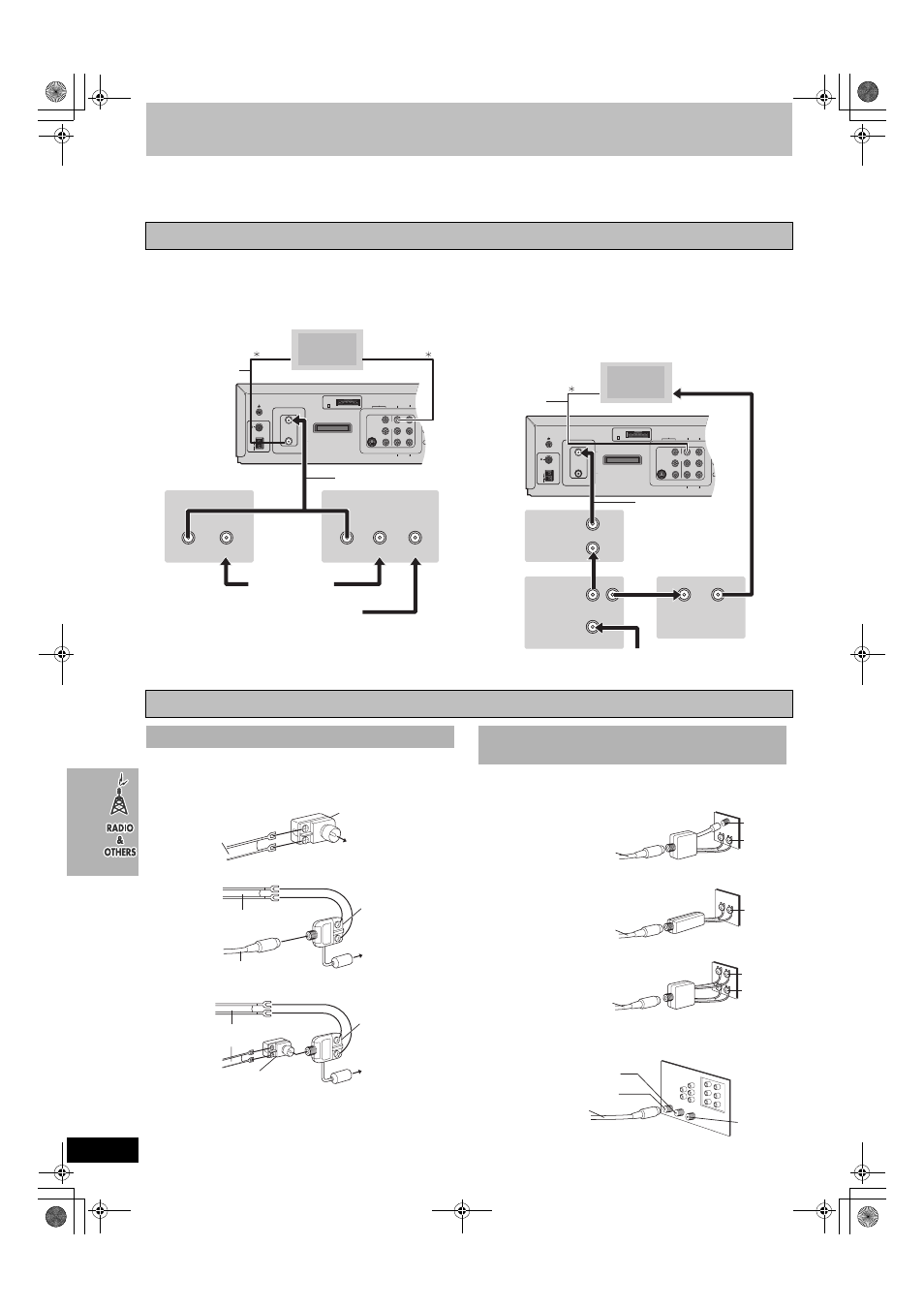

Connecting a cable TV box/satellite receiver
OUT IN OUT IN IN
RF IN
RF OUT LOOP
EXT
75
AM ANT
FM ANT
LOOP
ANT
GND A
DIGITAL TRANSMITTER
DVD/VHS EXT DVD
L
R
COMPONENT VIDEO OUT
Y
PB/ CB
PR/
CR
S-VIDEO OUT IN OUT
VIDEO
TO SB-WA830
Satellite receiver
75 ≠ coaxial cable
From antenna or
cable TV jack
Cable TV box
From satellite dish antenna
To VIDEO IN
TV
To VHF/UHF RF IN
75 ≠ coaxial cable
(Included)
OUT
IN
OUT IN OUT2 OUT1
IN
RF IN
RF OUT LOOP
EXT
75
AM ANT
FM ANT
LOOP
ANT
GND
A
DIGITAL TRANSMITTER
DVD/VHS EXT DVD
L
R
COMPONENT VIDEO OUT
Y
PB/ CB
PR/
CR
S-VIDEO OUT IN OUT
VIDEO
TO SB-WA830
2-way
splitter
Cable TV box
From cable TV jack
75 ≠ coaxial cable
To VIDEO IN
TV
Cable TV
box
To VHF/UHF RF IN
Video cable
(Included)
If the antenna connector doesn’t match
∫ Other antenna connections to the unit
300–75 ≠ transformer
(not included)
from the antenna
(Flat) Twin lead
300
≠ cable To this unit’s
RF IN terminal
from the antenna
(Flat) Twin lead 300 ≠ cable
To this unit’s
RF IN terminal
(Round)
75
≠ coaxial cable
VHF/UHF band mixer
(not included)
from the antenna
To this unit’s
RF IN terminal
300–75 ≠ transformer
(not included)
(Flat) Twin lead
300
≠ cable
VHF/UHF band mixer
(not included)
∫ Other antenna connections from the unit to
the TV
VHF/UHF band separator
(not included)
TV
75 ≠ coaxial cable
VHF
UHF
75 ≠ coaxial cable
75–300 ≠ transformer
(not included)
TV
VHF or
UHF
75 ≠ coaxial cable
VHF/UHF band separator
(not included)
TV
VHF
UHF
ANT 2
ANT 1
Split out
TV
75 ≠ coaxial cable
