VTrak M-Class Quick Start Guide
12
Step 5: Set Up Serial Cable Connections
The RS-232 Serial connection enables the Command Line Utility (CLU) on your
PC to monitor and control VTrak.

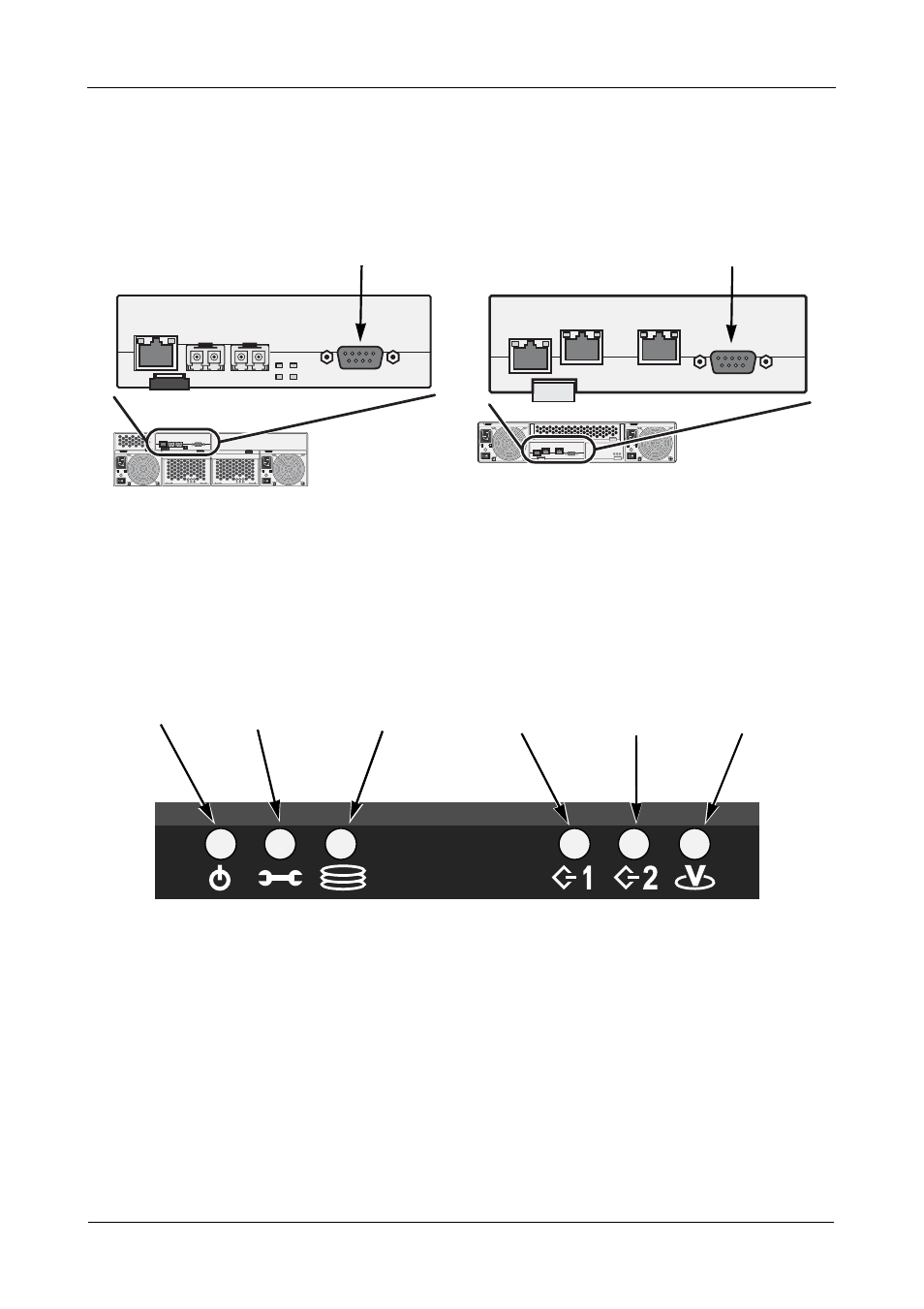

Figure 13. Serial connectors for VTrak M500f (left) and M300i (right)
Step 6: Connect the Power
Plug the power cords and switch on both power supplies on. When the power is
switched on, the LEDs on the front of the VTrak will light up.
Figure 14.VTrak M500f/i front panel LED display
Mgmt IOIOI
Controller
1 2 FC 1 FC 2
Mgmt
IOIOI
Controller
1 2
FC 1 FC 2
iSCSI 1 iSCSI 2
IOIOI
Controller
Mgmt
iSCSI 1 iSCSI 2
IOIOI
Controller Mgmt
DB-9 Serial
Connector DB-9 Serial
Connector
Power
FRU
Status
Logical Drive
Status
FC/iSCSI/
SCSI-1
Activity
FC/iSCSI/
SCSI-2
Activity
Controller
Heartbeat
