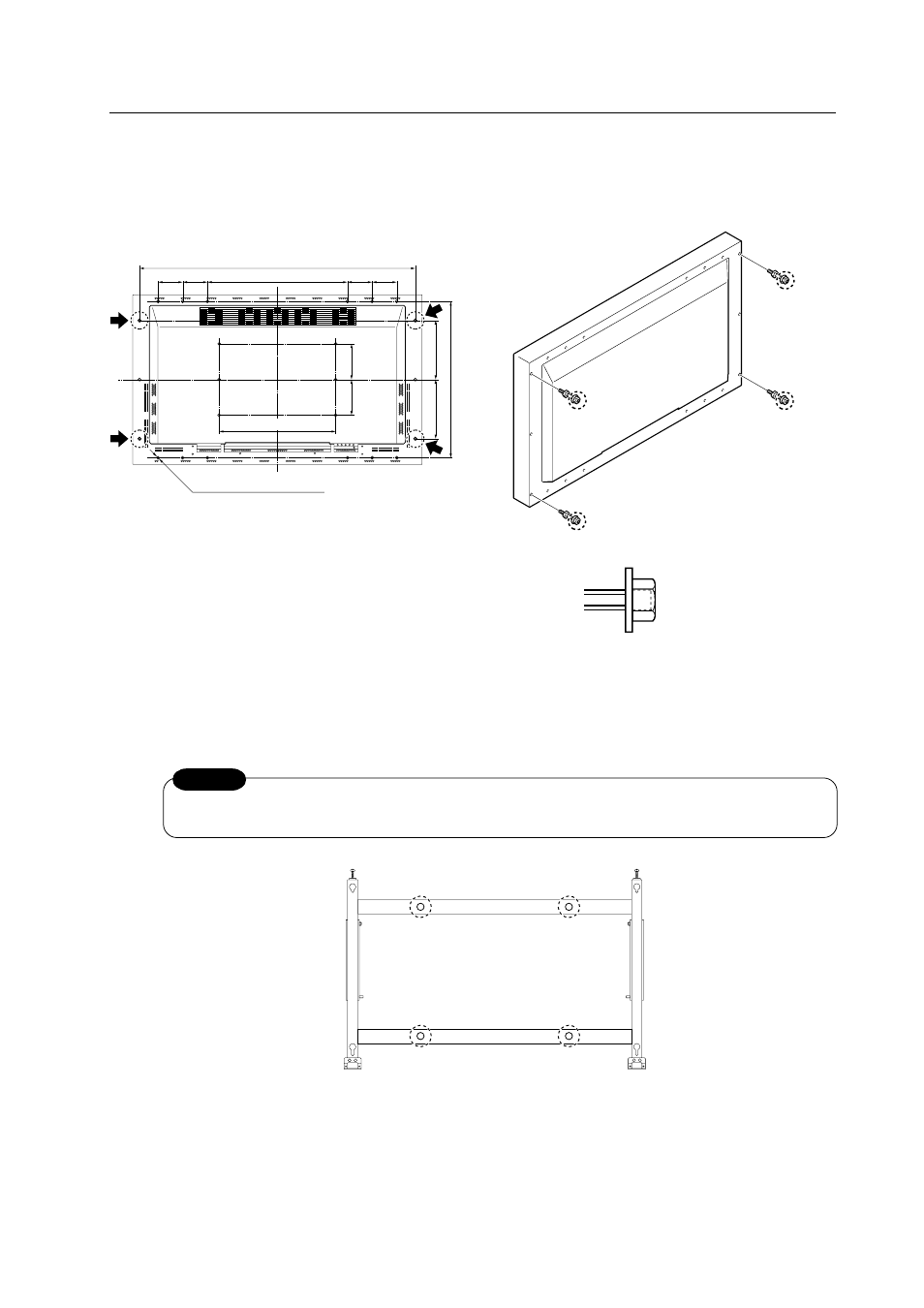

2 Mounting the assembled mounting hardware to the wall
1. Firmly fasten the mounting hardware to the wall at a minimum of four points b, using appropriate screws or bolts.
Make sure that the screws and bolts are appropriate for the wall’s strength and composition.
The nuts of the monitor-
fastening bolts should be
tightened so that their
surface is level with the
screw.
CAUTION
b b
b b
3) Mounting monitor-fastening bolts to the plasma display
1 Mount the monitor-fastening bolts to the four rear corners of the plasma display.
1162
590 104 104 104 104
150
150
590
250
250
660
24-M8 (with 16ø Hole rivet)
Monitor-
fastening bolt
Monitor-
fastening bolt
Monitor-
fastening bolt
Monitor-
fastening bolt
Before mounting to the wall, check that the fittings have adequate strength.
