Installation Conditions
3.2 Installation Conditions
3.2.1 Heat dissipation

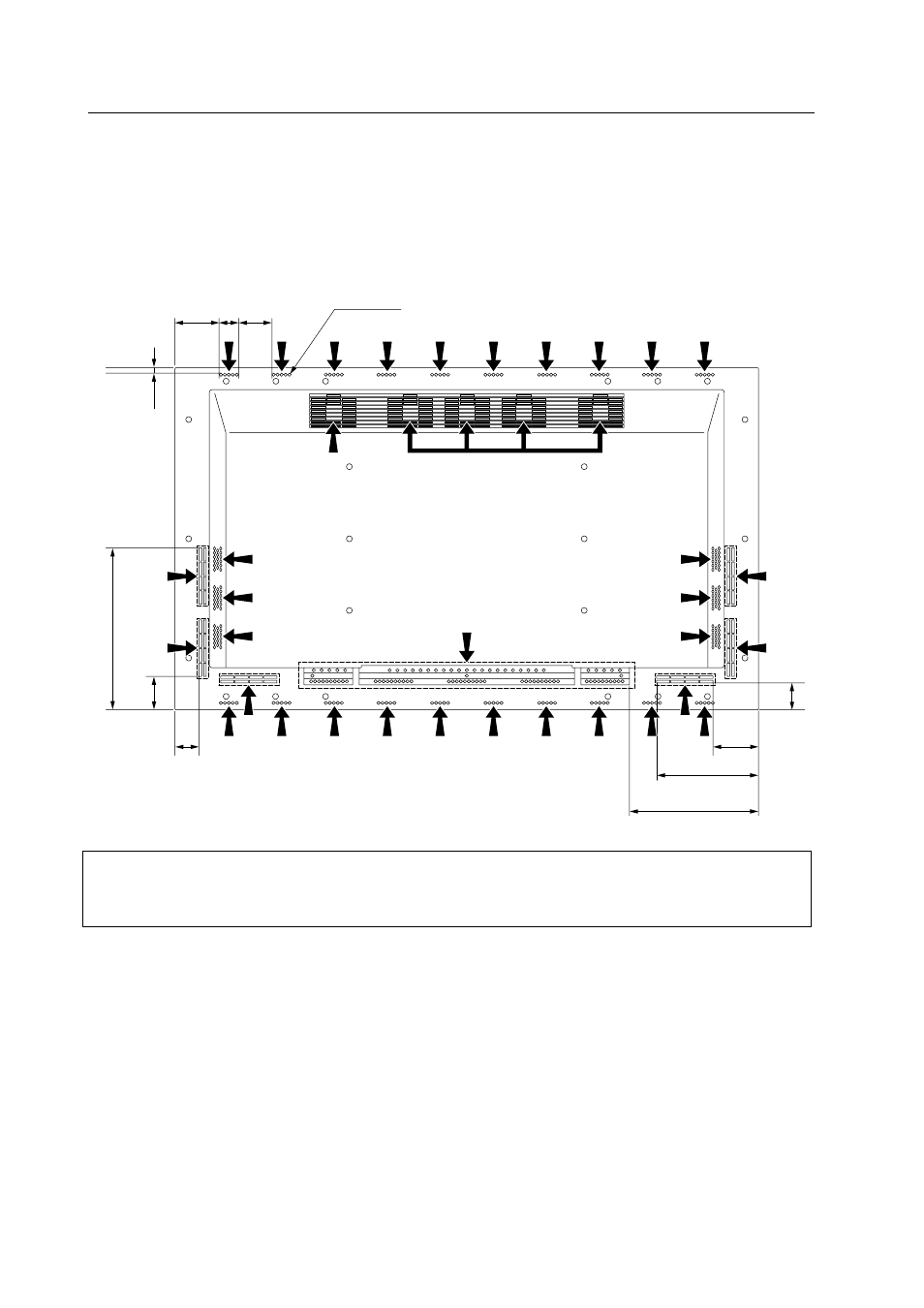

This unit has openings for effective ventilation at locations marked by arrows in the illustration below. To allow proper
dissipation of heat from the unit, avoid blocking or covering any of these openings.
Fan (4 in number)
Air flow through the openings: All four fans exhaust hot air from the unit. All openings not assisted by fans serve as
air inlets. If the unit is hung from or embedded into a wall, special operating temperature limits and other limitations
may apply. Refer to 3.4 Special Installation.
96.5 35 75
Ш 5
10
345
70
45
54
85
215
255
