– 20 –

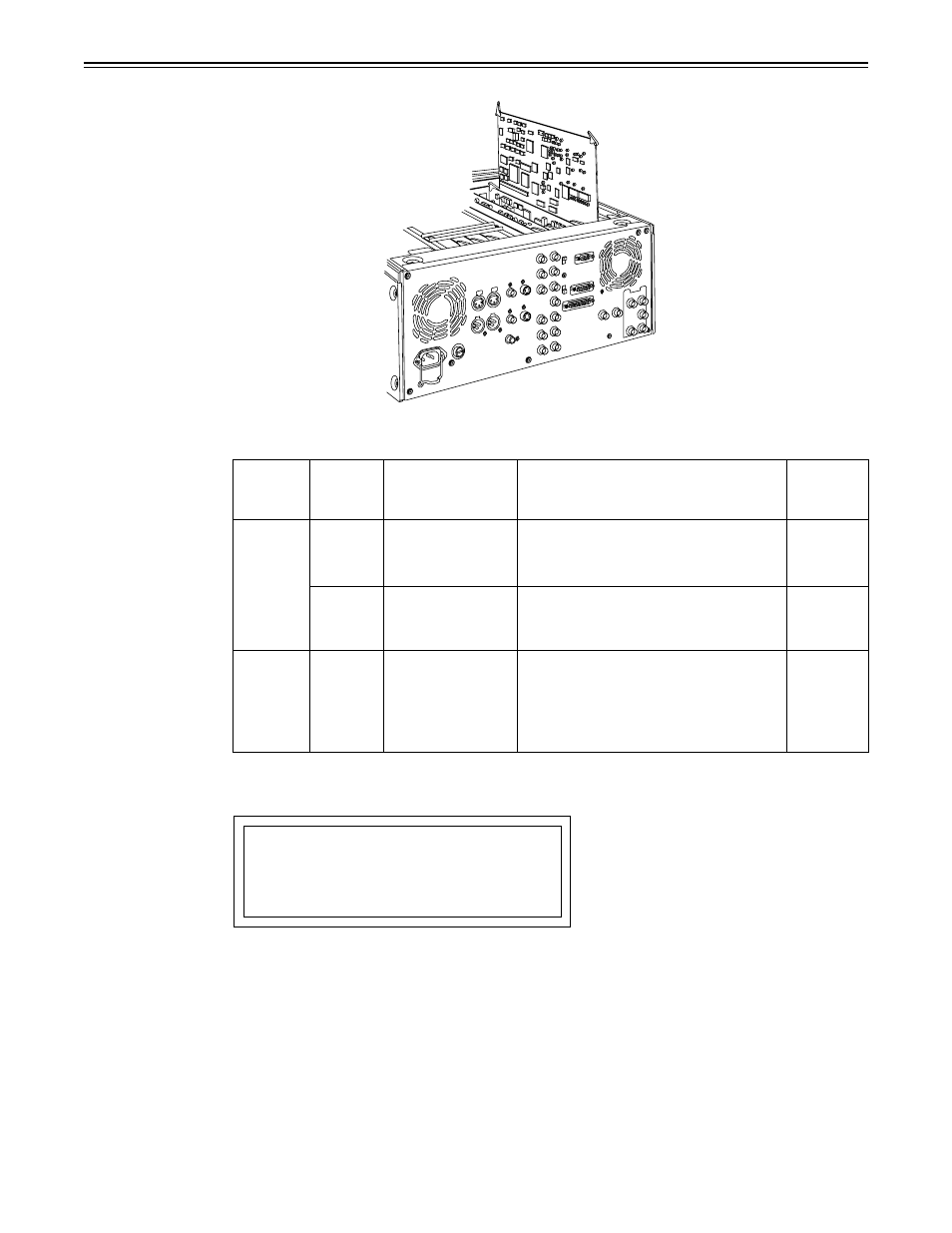

Printed circuit board
Printed
circuit
board
F8 board
ADDA-
CUE* SW1 Audio Input
Impedance SW
SW61
HIGH
This sets the CH1 audio input
impedance.
HIGH/600
Ω
HIGH
SW400
BETA
Abbr.
name
Full name Function
Factory
setting
F4 board
Audio Input
Impedance SW
Component P B /P R
Output level
selector
This sets the CH2 audio input
impedance.
HIGH/600
Ω
This sets the component P B /P R
output level when connecting with
the editor.
M
II : M II level
BETA : ß-CAM level
Component P
B /P R input levels are selected at No. 600 in the setup menu.*
CAUTION:
TO REDUCE THE RISK OF FIRE OF SHOCK
HAZARD, REFER CHANGE OF SWITCH
SETTING INSIDE THE UNIT TO AUTHORIZED
SERVICE PERSONNEL.
* Applicable only to
AJ-D450.
