Overview 5
EN

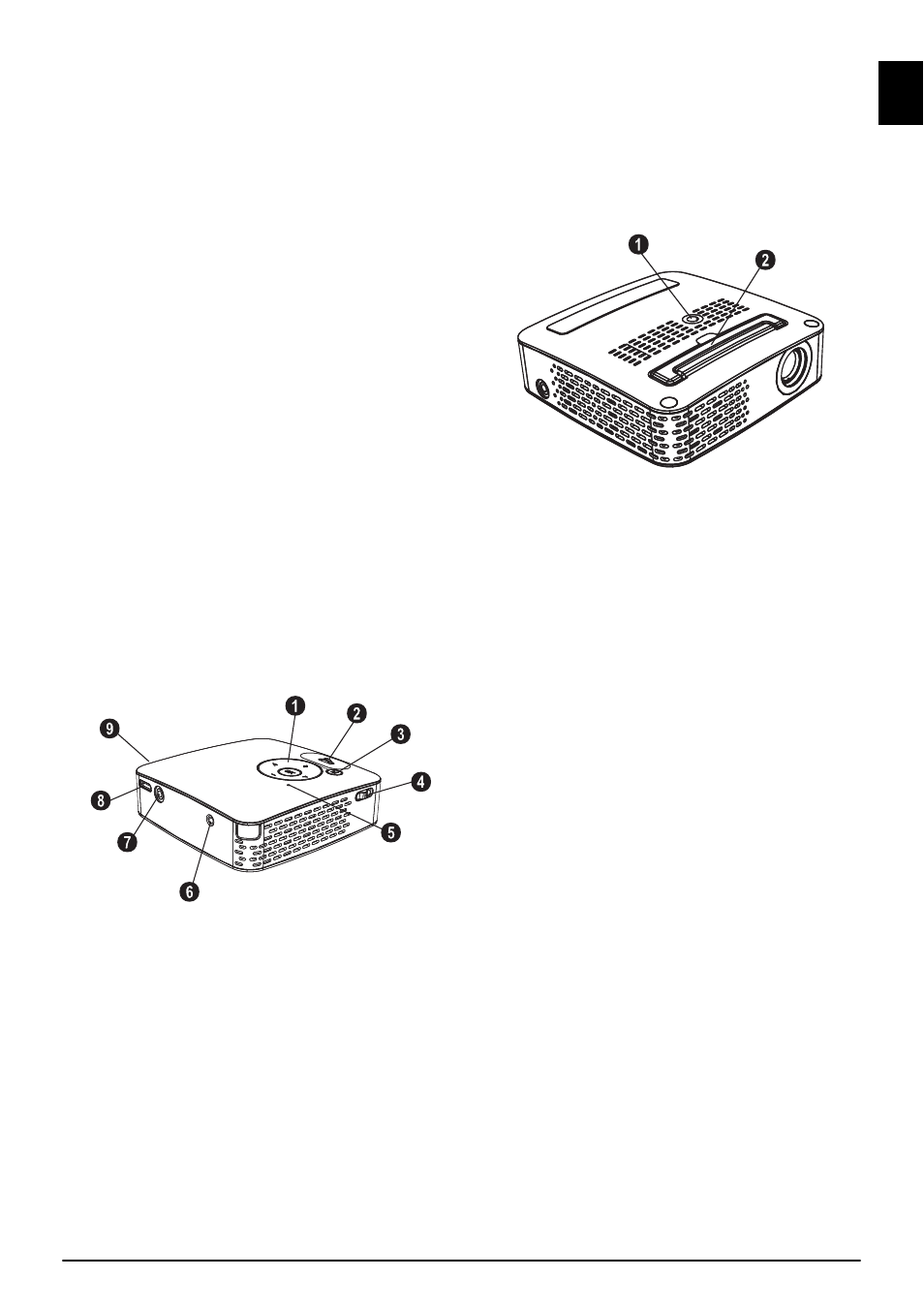

2 Overview
Top of the Device
‚ А/Б, ¡/¢, а—Navigation keys / OK key -
Navigate the menu, modify settings / Confirm entry
ƒ—Focus wheel for image sharpness. Please pay atten-
tion to the distance from the projection surface. Mini-
mum 0,2m maximum 3m. If the Pocket Projector is
located outside of this range, it will not be possible to
focus the image. Turn the focus wheel carefully so as to
avoid damaging the lens.
„ ¿—One menu step back / cancelling a function
… ON / OFF—On/Off switch
†—Battery status monitor: Red: battery empty,
Green: battery fully charged
Charge indicator with connected power supply: Red:
battery empty, Green: battery fully charged
‡ DC IN—Power supply connection
ˆ A/V—Audio/video input jack (composite / CVBS) –
Connection of a playback device with audio/video out-
put
‰ VGA / YPbPr—Component input (YUV/YPbPr) /
VGA input – Connection of a playback device with com-
ponent (YUV/YPbPr) output or a computer (VGA
audio) for image playback
Š Ï—Audio output – headphone connection or con-
nection for external speakers
P2 oben
Bottom of the Device
‚ Tripod socket
ƒ Fold-out base
PicoPix P3 Bottom
