11
RQT8552

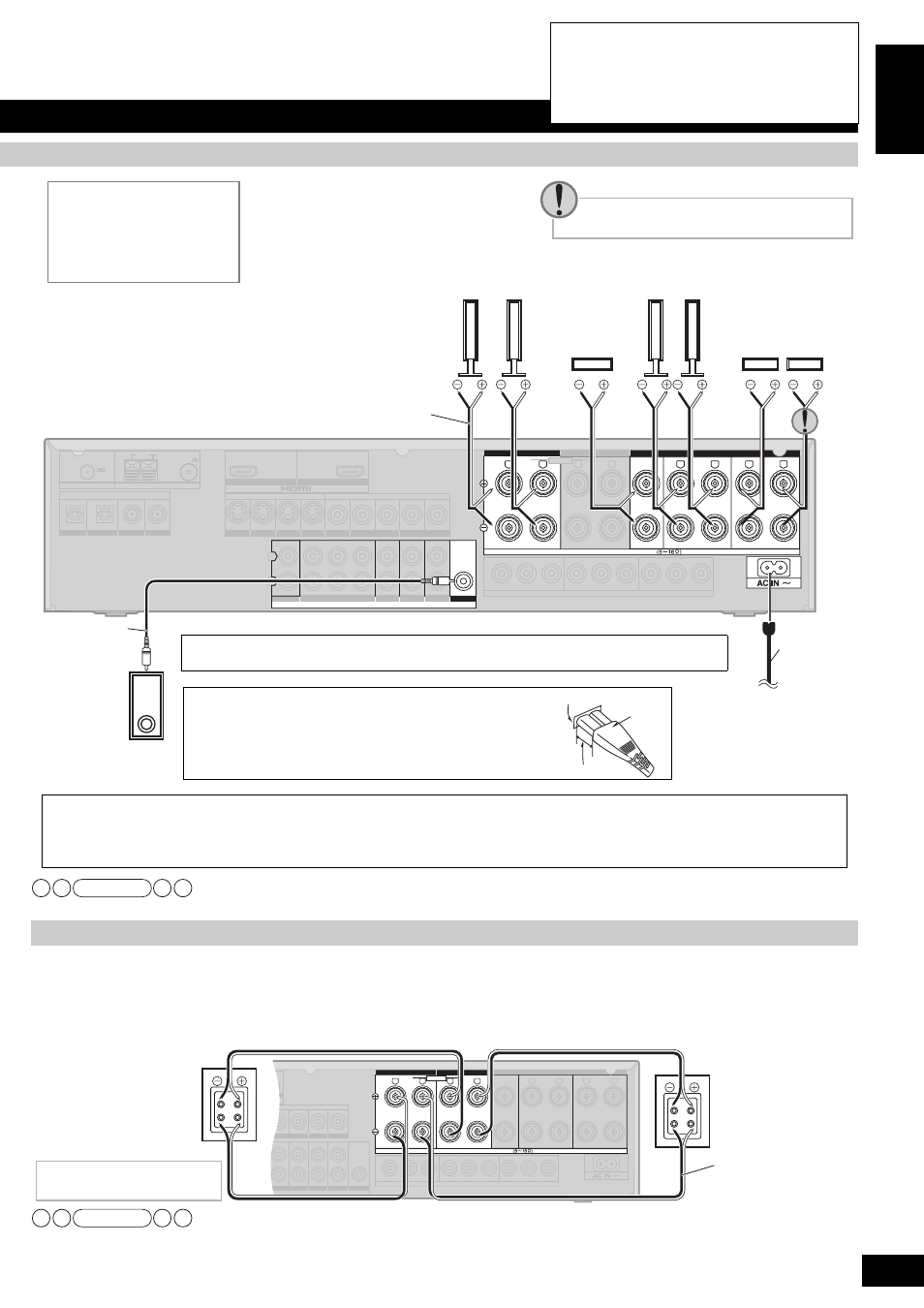

Do not forget to take steps instructed in “Detecting speakers automatically” (á page 14) after connecting a new speaker or making a similar change.
Speakers designed for bi-wiring have separate connection terminals for high frequency and low frequency signals.
• Bi-wiring prevents high frequency and low frequency signals from interfering with each other. It offers playback in high audio quality.
• Different amplifiers for high frequency and low frequency signals produce bi-amp stereo sounds that are clearer and higher in audio
quality when you play sources containing analogue audio and 2-channel PCM signals (á page 18).
• HF and LF stand for high frequencies and low frequencies, respectively.
• Make sure to connect speakers’ HF terminals with the unit’s FRONT B terminals, and speakers’ LF terminals with the unit’s FRONT A
terminals. “Correcting the HF and LF difference” (á page 32) becomes unavailable when you make reverse connections.
• Make sure to select “ YES ” in “Setting bi-wiring connections” (á page 31) when you connect the unit to speakers designed for bi-
wiring. The speakers do not produce adequate sounds unless you make this setting.
(TV/STB)
OPTICAL1
Y P B P R Y Y P B P R P B P R
LF HF
DIGITAL IN
(DVD RECORDER) (DVD PLAYER) (CD)
OPTICAL2 COAXIAL1 COAXIAL2
OUT (DVD RECORDER) IN
S VIDEO
OUT
TV MONITOR
IN
DVD PLAYER
IN
DVD RECORDER
IN
TV/STB
OUT
VIDEO
TV MONITOR DVD PLAYER
IN IN
DVD RECORDER
IN
VCR
IN
TV/STB
L
R
IN
CD
CENTER
SUBWOOFER SURROUND FRONT
DVD/DVD 6CH IN
AUDIO
IN
DVD RECORDER
IN
VCR
IN
TV/STB
OUT
SUBWOOFER
L R
FRONT A FRONT B
L R
CENTER SURROUND
L R
SURROUND BACK
L R
TV MONITOR OUT DVD RECORDER IN
COMPONENT VIDEO
TV / STB IN
BI-WIRE
LOOP EXT LOOP EXT LOOP EXT
AM ANT FM ANT
LOOP ANT
GND
SPEAKERS
Connect AC mains lead after all other cables and cords are connected.
• The included AC mains lead is for use with this unit only. Do not use it with other equipment.
• Do not use an AC mains lead from other equipment.
• If the unit is left unplugged for longer than two weeks, all settings will revert to the factory settings. Perform the settings again if this occurs.
Speaker impedance
Front A:
6 to 16 Ω
Center: 6 to 16 Ω
Surround: 6 to 16 Ω
Surround back: 6 to 16 Ω Front speakers
(R) (L)
Center
speaker
Surround speakers
(R) (L)
Surround back
speakers
(R) (L)
Active
subwoofer
Speaker cable
The unit’s rear view
Use the terminal for the left speaker when you
connect one surround back speaker only.
Monaural
connection
cable
To household
mains socket
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
AC mains
lead
(included)
Insertion of connector (Except the United Kingdom)
Even when the connector is perfectly inserted, depending on the
type of inlet used, the front part of the connector may jut out as
shown in the drawing.
However there is no problem using the unit. Appliance inlet
Connector
Approx. 6 mm
Note
Connecting speakers designed for bi-wiring
Y P B P R Y Y P B P R P B P R
BI-WIRE LF HF
VIDEO
DVD PLAYER
IN IN
DVD RECORDER
IN
VCR
IN
TV/STB
FRONT
VD 6CH IN
AUDIO
IN
DVD RECORDER
IN
VCR
IN
TV/STB
OUT
SUBWOOFER
L R
FRONT A FRONT B
L R
CENTER SURROUND
L R
SURROUND BACK
L R
TV MONITOR OUT DVD RECORDER IN
COMPONENT VIDEO
TV / STB IN
SPEAKERS
HF
HF
LF
LF
Speaker cable
Speaker impedance
BI-WIRE:
6 to 16 Ω
The unit’s rear view
Front speaker (L)
Rear view Front speaker (R)
Rear view
Note
Hom
e Th
ea
ter
connectio
ns
E
N
GL
IS
H
• Turn off all components before making any
connections.
• Peripheral equipment and cables sold separately
unless otherwise indicated.
• To connect equipment, refer to the appropriate
operating instructions.
