6

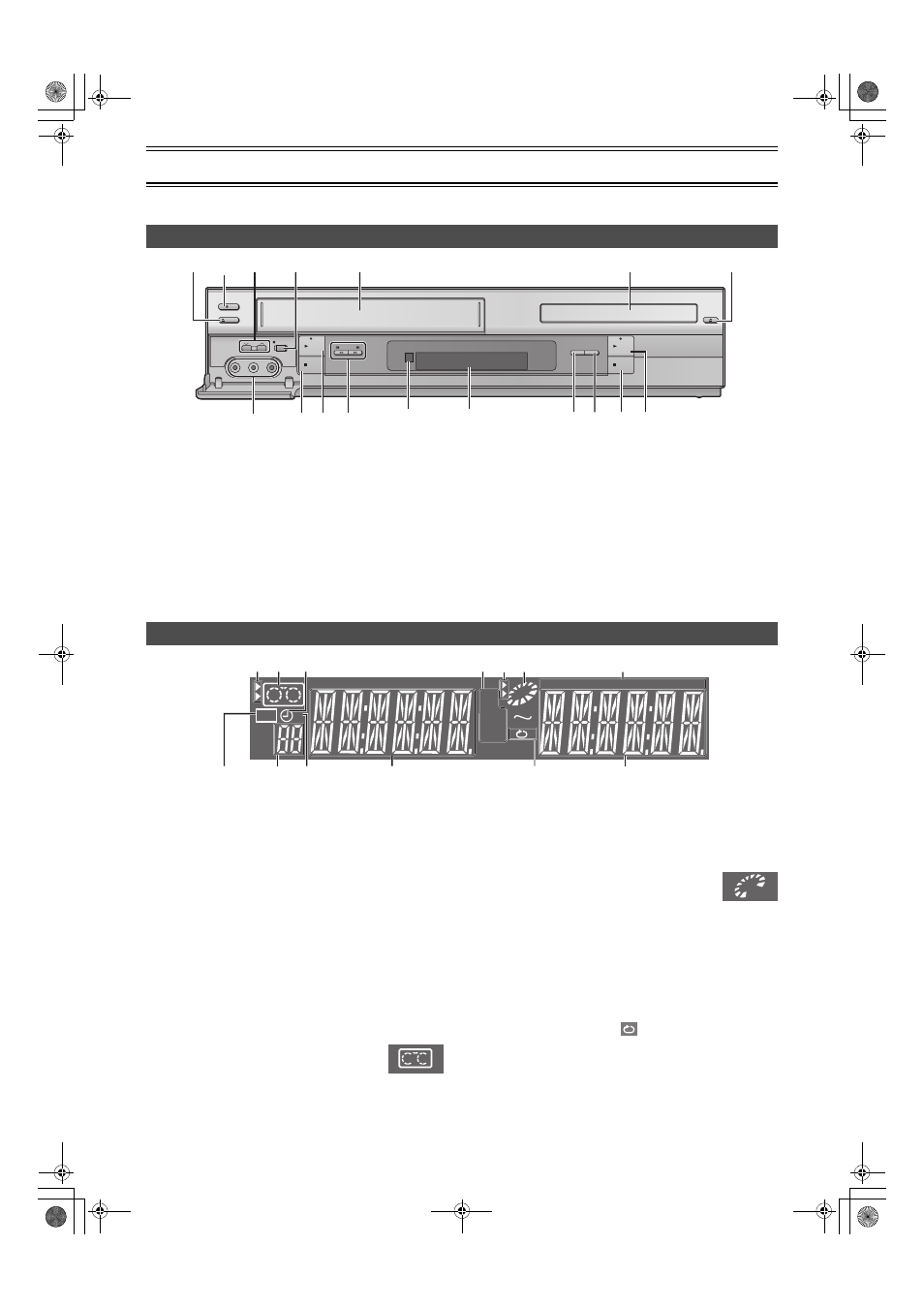

Control Reference Guide
Operations in these instructions are described mainly for the remote control, but you can do the operations on the main unit if the
controls are the same.
ª Common section
[A]
Power
button
(
Í
/I)
≥Press [Í/I] to switch this unit from on to standby mode or
vice versa. In standby mode, the unit is still connected to the
main AC power.
[B]
Infra-red remote control receiver window
[C]
Display
ª VHS section
(1) Tape eject button (
<EJECT).................................... (
(2) Channel up/down buttons (CH
JI)................. (l 15, 16)
(3) Recording/One-Touch Recording button
(
¥REC/OTR) ........................................................ (
(4) Cassette compartment
(5) AV2 IN (AUDIO/VIDEO) sockets ...............................(
l 17)
(6)
∫STOP button ...........................................................(
l 14)
(7)
1PLAY button ...........................................................(
l 14)
(8) Fast-forward/rewind buttons
(
6/REW FF/5, 6 5) ........................................(l 14)
ª DVD section
(1) Disc tray
(2) Disc tray open/close button (OPEN/CLOSE
<)
.........(
l
)
(3) DVD-RAM Dubbing button
(DVD-RAM DUBBING) ...............................................(
l 42)
(4) AV Enhancer button (AV ENHANCER) ....................(
l 29)
(5)
∫STOP button ...........................................................(
l 26)
(6)
1PLAY button ...........................................................(
l 26)
ª Common section
[A]
Main display
≥Current time/VHS recording and play counter/Timer
recording start time/Miscellaneous messages, etc.
[B]
Main display
≥Disc play counter/Timer recording end time/Disc type (
l 5)/
Miscellaneous messages, etc.
PL:
Play list number
PG:
Programme number
C:
Contents number (HighMAT discs
l 33)
G:
Group number (HighMAT discs
l 33)
ª VHS section
(1) VHS selector indicator
≥Lights up when the VHS section is active. It flashes for about
5 seconds immediately after selection is made.
(2) Operation status of VHS section
≥Lights up when a cassette is inserted.
≥Flashes when recording or timer recording is attempted with
no cassette inserted.
≥Displays play status graphically.
Rotating: Playing
Stopped: Paused
(3) Timer programme recording indicator.................... (
l 18)
(4) Recording mode indicator ....................................... (
l 16)
(5) Recording indicator .................................................. (
l 16)
(6) Channel display ........................................................ (
l 16)
(7) Repeat playback indicator ....................................... (
l 14)
ª DVD section
(1) DVD selector indicator
≥Lights up when the DVD section is active. It flashes for about
5 seconds immediately after selection is made.
(2) Operation status of DVD section
≥Lights up when a disc is inserted.
≥Displays play status graphically.
Rotating: Playing
Stopped: Paused
(3) The display mode of the main display section
GRP: Group number
TTL: Title number
PRG: Lights up during programme play.
RND: Lights up during random play.
TRK: Track number
CHP: Chapter number
(4) A-B repeat indicator .................................................(
l 39)
≥Lights up during A-B repeat play.
*During repeat play, only
is lit.
Main Unit
/ I
EJECT
OPEN/CLOSE
FULL-OPEN
PLAY
/REW
FF/
DVD-RAM
DUBBING
AV
ENHANCER
STOP
PLAY
STOP
CH
REC/OTR
L
R
j AUDIO j
VIDEO
AV2 IN
(7)
(1)
(8)
(4)
(4)
(2)
(1)
(3)
(6)
(5)
[A]
[C]
[B]
(3)
(2)
(6)
(5)
The Unit’s Display
GRP
TTL
PRG
RND
TRK
CHP
SP
S
LP
EP
R
REC
A
B
[B]
(3)
(7)
(1)
(3)
(6)
(5)
(4)
(2)
(1) (2)
[A]
(4)
