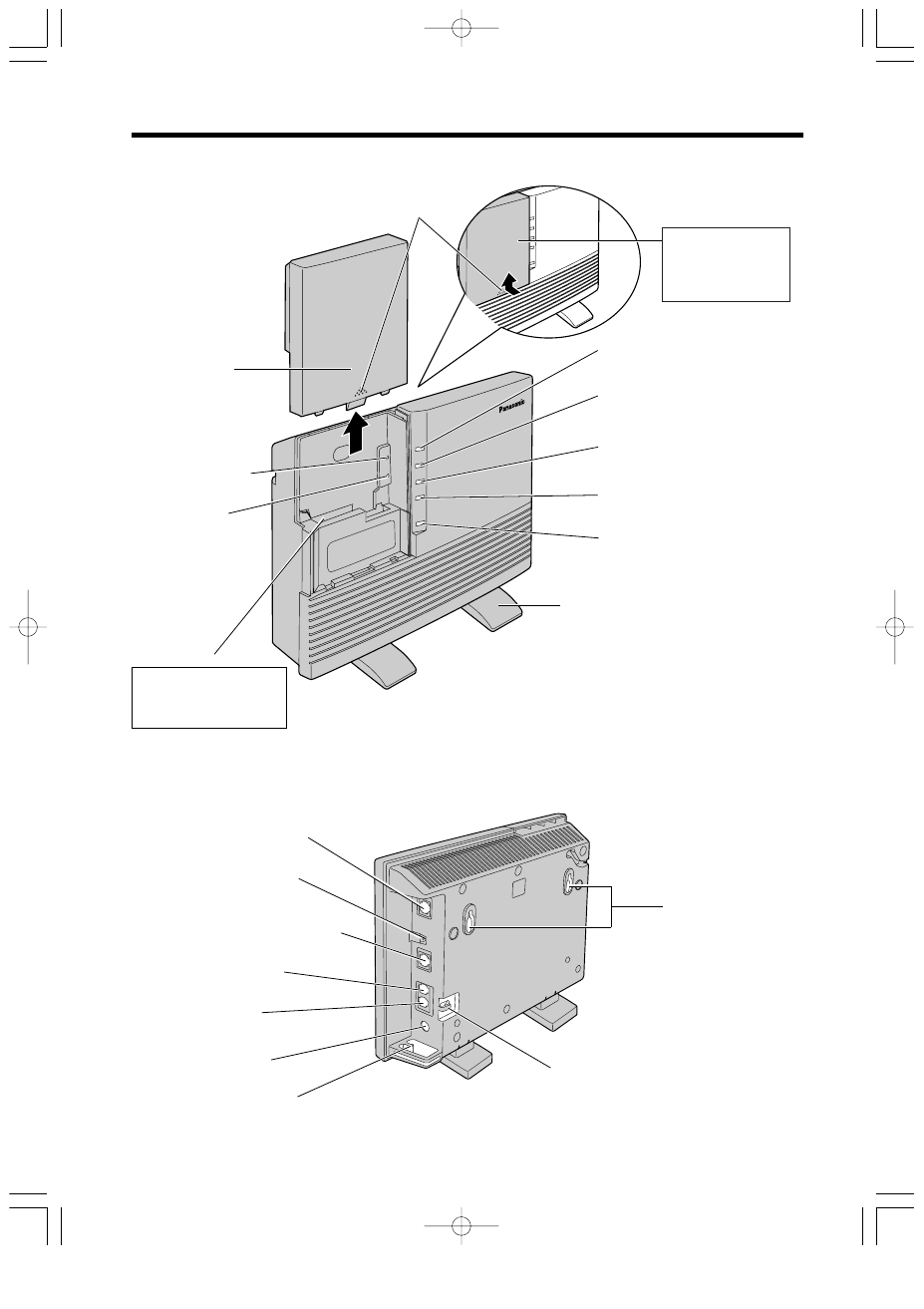

Part Names
INTERNET
ETHERNET
HomePNA
POWER
KX-HGW200
WIRELESS
Remove the
cover by sliding it
up while pressing
the arrow mark.
Cover ( ☞ p. 46)
Arrow mark
CLEAR SETTING
button (
☞ p. 46)
RESET button
(
☞ p. 46)
INTERNET indicator
(
☞ p. 11)
ETHERNET indicator
(
☞ p. 11)
HomePNA indicator
(
☞ p. 11)
POWER indicator
(
☞ p. 11)
Stand ( ☞ p. 57)
TO MODEM port
(
☞ p. 14)
HUB/PC switch
(
☞ p. 17, 18)
TO COMPUTER/
ETHERNET HUB port
(
☞ p. 17, 18)
PHONE jack
(
☞ p. 16)
Hook ( ☞ p. 57)
used for the AC adaptor
while the KX-HGW200 is
wall mounted.
Rear View
Front View
LINE jack
(
☞ p. 15)
Used for
mounting the
unit on the wall
(
☞ p. 58).
DC IN jack
(
☞ p. 19)
WIRELESS indicator
(
☞ p. 11)
PC card slot
Use only Panasonic
wireless PC card,
model KX-HGC200.
Hook ( ☞ p. 19)
used for the AC adaptor
while the KX-HGW200 is
utilized with stands.
