Page 44
2.2 Installation of the PBX
44
Installation Manual
2.2.8
Wall Mounting (KX-TAW848)

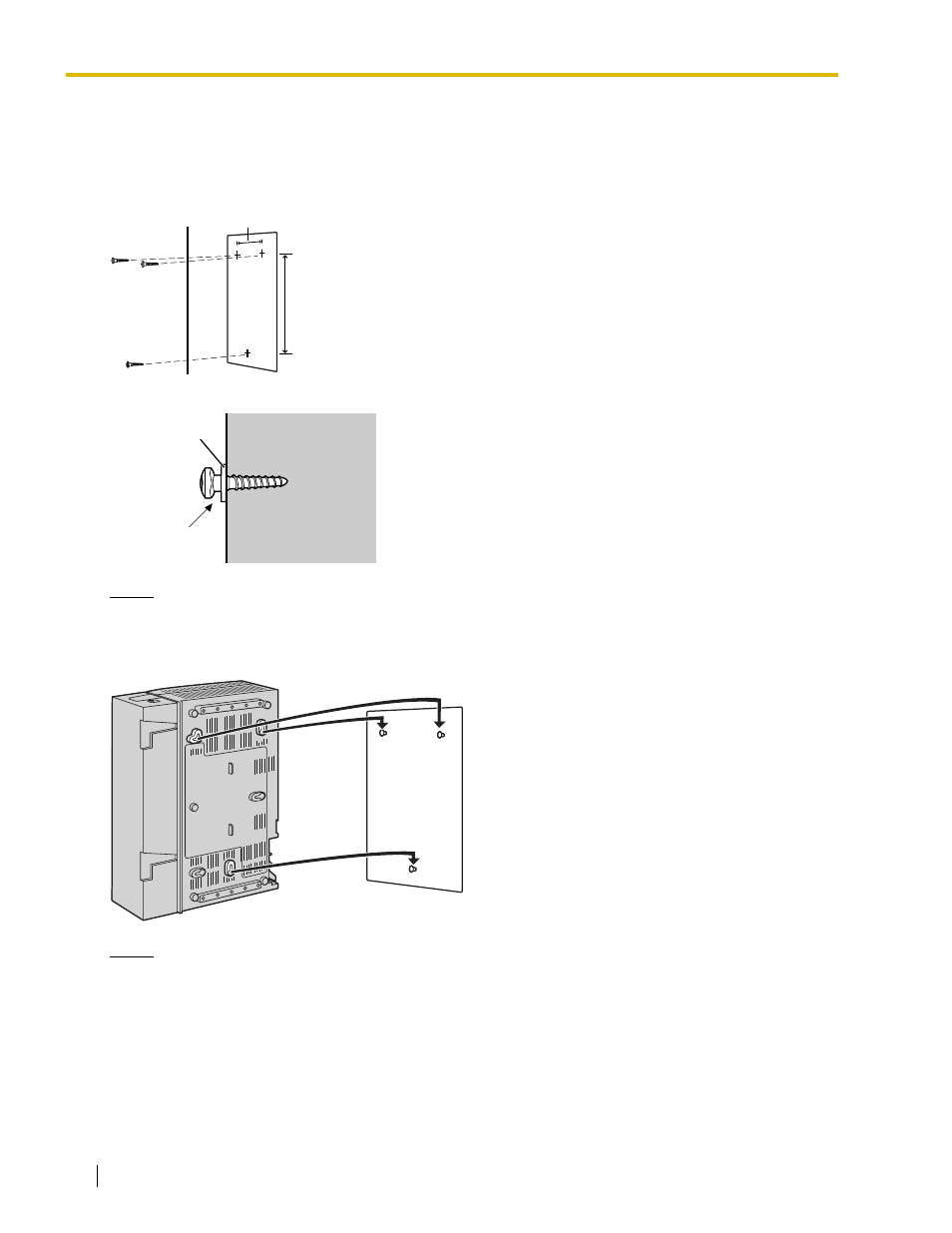

Mounting on Wooden Wall
1.
Place the reference for wall mounting on the wall to mark the three screw positions.
2.
Install the screws and washers (included) in the wall.
Notes
•
Make sure that the screw heads are at the same distance from the wall.
•
Install the screws perpendicular to the wall.
3.
Hook the main unit on the screw heads.
Notes
•
Do not block the openings of the cabinet. Leave at least 20 cm (8 in) of space above and 10 cm (4
in) to the sides of the PBX for ventilation.
•
Make sure that the wall behind the cabinet is flat and free of obstacles, so that the openings on the
back of the cabinet will not be blocked.
•
Be careful not to drop the cabinet.
250 mm
(9-13/16 in)
130 mm (5-1/8 in)
Washer
Drive the screw
to this position.
