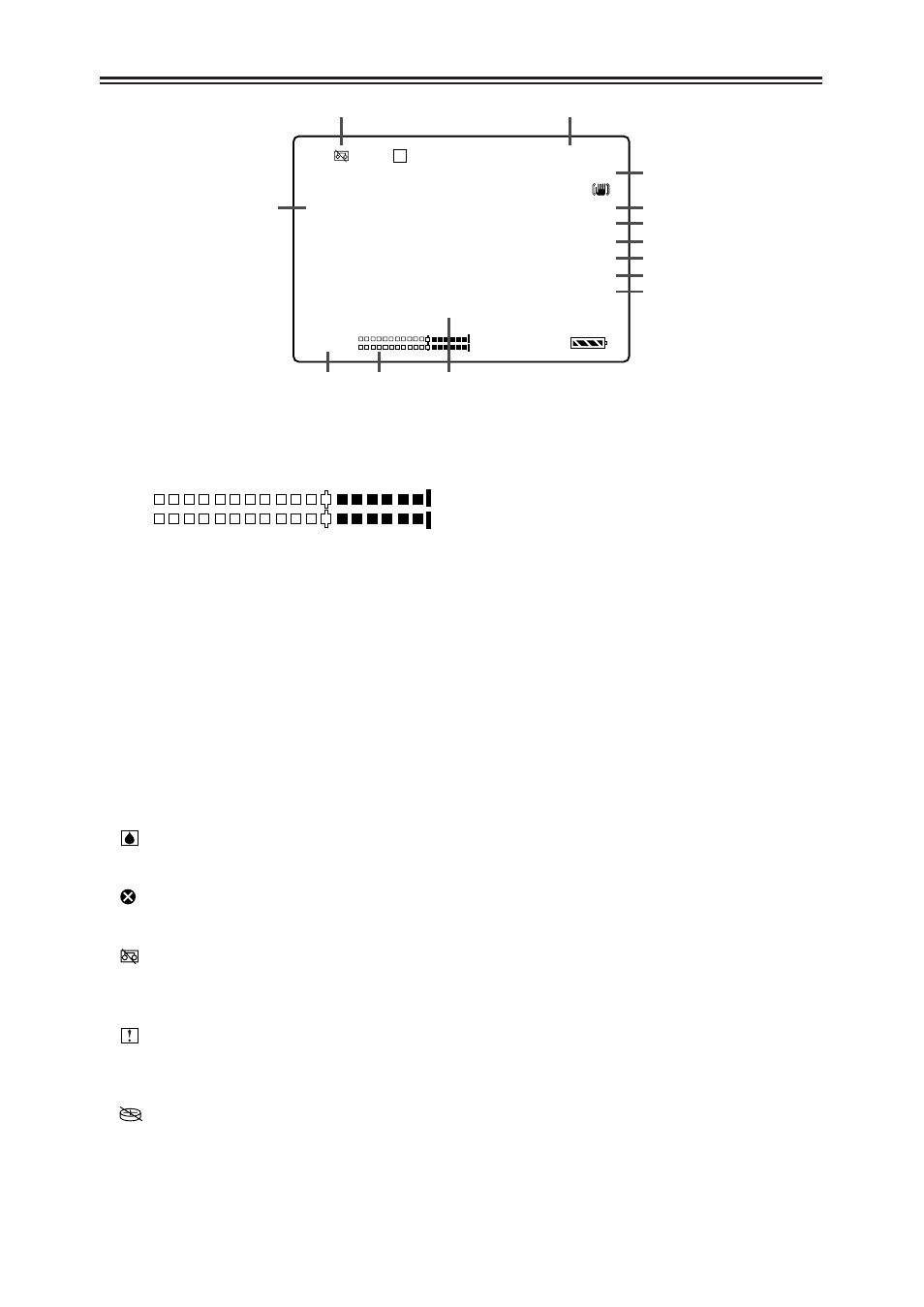

Screen displays
= Zoom position display
The zoom position from Z00 (max. wide
angle) to Z99 (max. telephoto) appears here.
> AWB information display
The white balance information appears here.
? Focus control information display
The focus control information from 99 to 00
appears here.
95 (focal length: infinity)
:
50 (focal length: approx. 1 meter)
Under 49 (macro range)
:
00 (focal length: approx. 2 cm)
O Depending on the zoom position, the focus
may not be within the macro range.
Similarly, depending on the zoom position,
the lower limit of the macro range may
differ.
@ Macro control display
A Iris display
The F-number appears here.
B Gain display
The gain value setting of the video amplifier
appears here.
C ND filter display
The selected ND filter appears here.
“ND – –” appears on the display when the ND
FILTER switch has shifted out of position (to
a position other than OFF, 1/8 or 1/64).
Check the ND FILTER switch position.
D Recommended ND filter display
Displayed here is the ND filter which is
recommended under the current shooting
conditions.
A I – P A U S E U S E R - 1
DV
ALC
O T C 1 2 : 3 4 : 5 6 : 0 0 Z 7 8
S P
2 4 P A M F 2 5
2 2 2 2 2 2 2 2 2 2 2 2 2 2 M A C R O
2 2 2 2 2 2 2 2 2 2 P 3.2 K
2 2 2 2 2 2 2 2 2 2 2 2 2 2
2 2 2 2 2 2 2 2 2 2 2 2 2
2 2 2 F 5 . 6
2 2 2 2 1 8 dB
S P O T L OW L I G H T ND 1/ 64
1/ 1 2 3 . 4 ND 1/ 64
0 2
I N D E X
A U G 3 1 2 0 2 3 : 5 9 : 5 9
4 8 K
2 2
m i n CH1
CH2
; ?
A
C
=
@
>
B
<
D
:
8 9
CH1
CH2
–12 dB –34 dB 0 dB
9 Audio sampling frequency display
: Scene filename display
; Progressive display
The information on the frame rate when
shooting in the progressive mode is displayed
here.
< Warning information displays
REMOTE:
This flashes when the component for which
the wireless remote control unit is set is the
wrong one.
:
This lights when condensation has formed
inside the camera recorder.
:
This flashes when the cylinder head is
dirty.
:
This flashes when the cassette tape has
not been inserted or when it has been set
to the recording inhibit mode.
:
This lights if a problem occurs in the
camera recorder when face-to-face
shooting is performed in the mirror mode.
:
This lights when the internal battery used
for the calendar has run down.
8 Audio level meter display
