DVR User’s Manual
63
A. Select to set up the service.
B. Enter the name of the setting in the Name field: DVR 1.
C. Enter Private IP: 167
D. Choose as the Protocol Type.
E. Enter Private Port: 80.
F. Enter Public Port: 80.
G. Click for the Schedule setting.
H. Click .

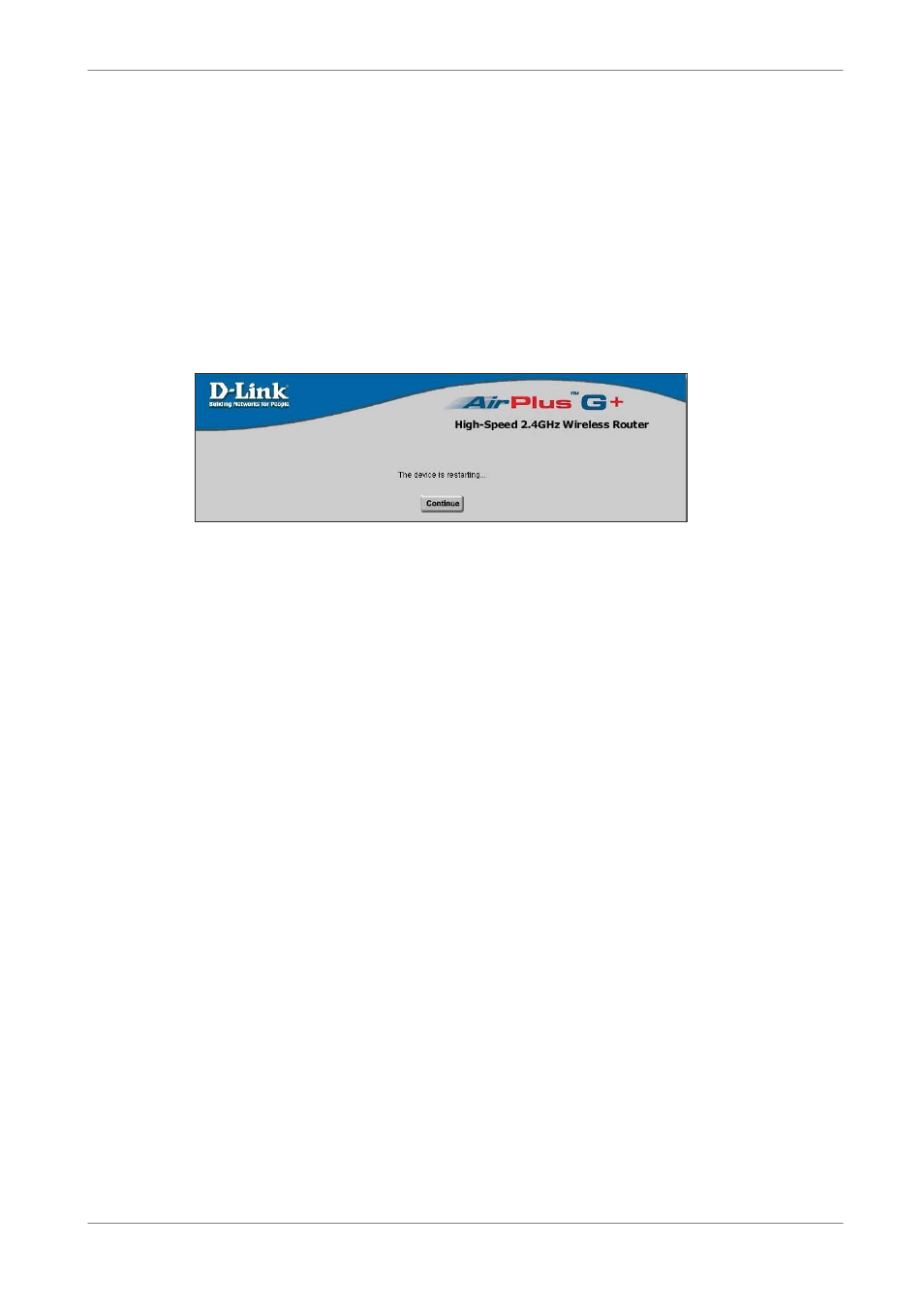

• Click to go on when the following screen displays.
• Follow the steps to set up web port forward to DVR 2.
A. Click to set up the service.
B. Enter the name of the setting in the Name field: DVR 2.
C. Enter Private IP: 200
D. Choose as the Protocol Type.
E. Enter Private Port: 81.
F. Enter Public Port: 81.
G. Click for the Schedule setting.
H. Click .
• Now you can see DVR 1 via http://218.160.54.13:80 and DVR 2 via
http://218.160.54.13:81.
• If there are more than one DVR behind the router, repeat the steps for port mapping
setting.
