A9

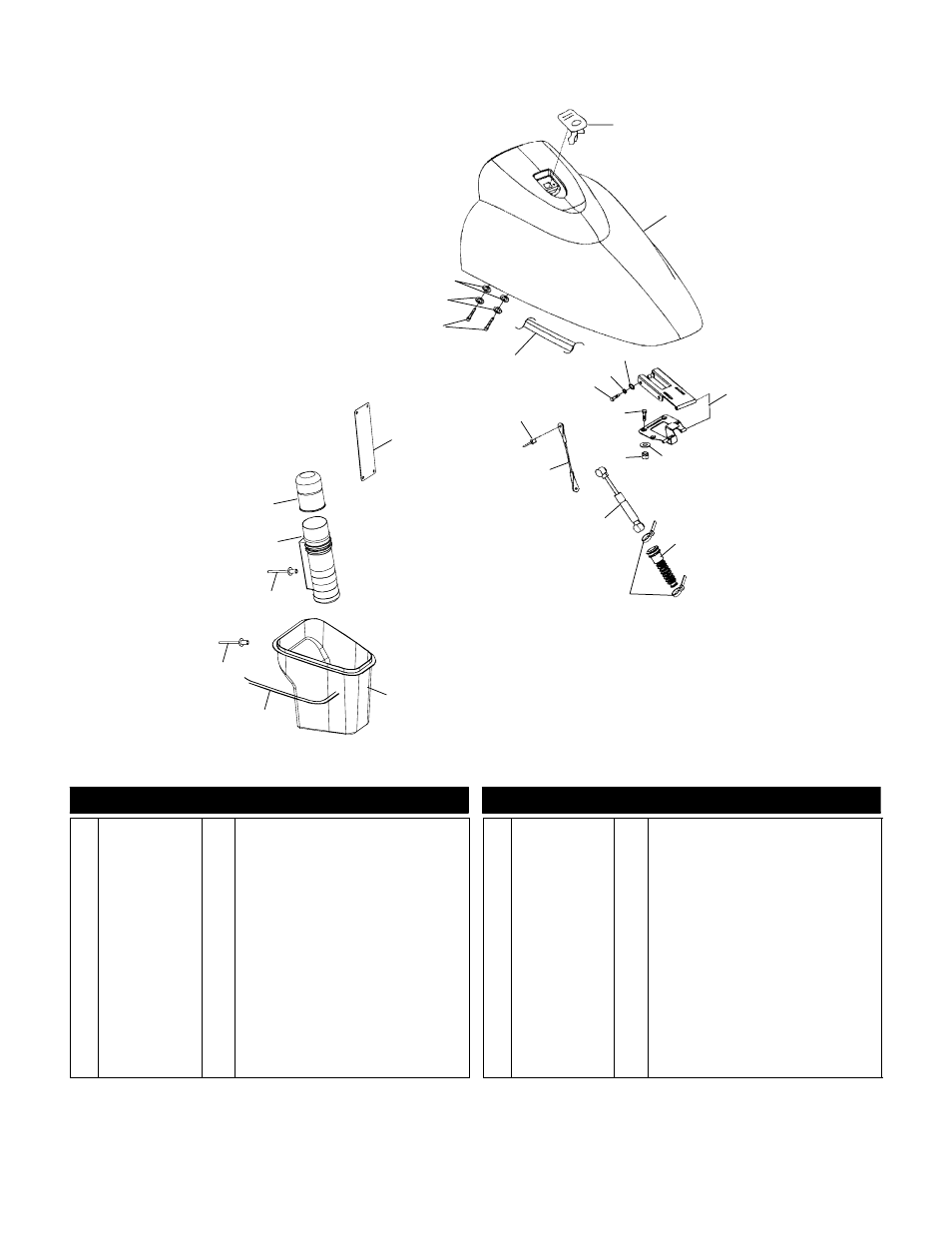

FRONT STORAGE COMPARTMENT
VIRAGE W005197D and INT’L VIRAGE W005197I
11
20
21
9
19
7
12
16
3
1
17
2
13
15
14
8
24
10
6
18
4 5
22
23
22
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 2653012 1 Latch, Door
2 5433710-311 1 Door, Compartment
3 1013282 1 Asm., Door Hinge
4 7555890 5 Washer
5 7546704 5 Nut
6 7517669 5 Screw
7 7516805 4 Screw
8 7552613 4 Washer, Lock
9 7555839 4 Washer
10 7555837 2 Washer
11 7552615 2 Washer, Lock
12 7512045 2 Screw
13 5521565 1 Seal, Door
14 7621235 2 Rivet
15 7080853 1 Cable, Limiter, Hinge
16 7041758 1 Spring, Gas
17 5411559 1 Boot, Gas Spring
18 7080483 2 Cable Tie
19 5211740 1 Plate, Fire Extinguisher
20 5431842 1 Cover, Fire Extinguisher
21 1060114
5431841
1
1
Asm., Fire Extinguisher Container
(Incl. 20 and Container)
Container, Fire Extinguisher
22 7621452 4 Rivet
23 5411865 1 Seal, Bucket, Front
24 5433464 1 Bucket, Front Storage
3/01
