B11

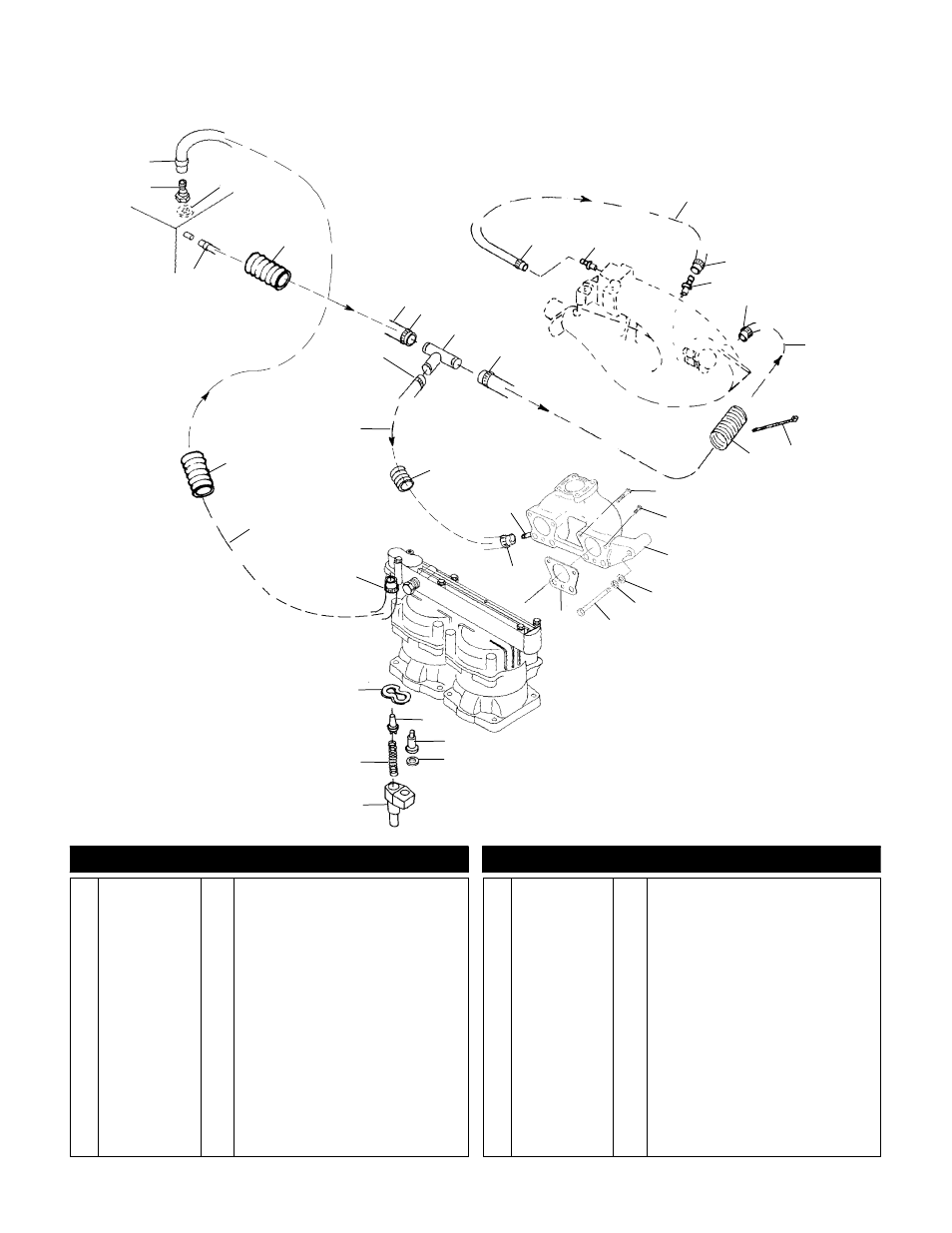

COOLING SYSTEM
VIRAGE W005197D and INT’L VIRAGE W005197I
3
15
1
5
1
9
28
6
8
27
22
26
23
1
1
7
7
7
24
19
12 4
1
1
25
16
17
18
13
14
20
4
4
11
9
2
10
21
7
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7080475 6 Clamp, Hose
2 5431444 1 Fitting, Thru-Hull
3 5811317 1 Gasket
4 5521287-63 4 Conduit, Flex
5 5411049 1 Hose, Outlet, Pump
6 5431784 1 Fitting, Tee
7 7080476 4 Clamp, Hose
8 7052128 1 Fitting, Screen, Exhaust
9 8450054-100 1 Hose, Water
10 5020747 1 Fitting, Injector, Exhaust
11 5411050 1 Hose, Inlet
12 7080138 10 Cable Tie
13 7516727 2 Screw
14 7516725 4 Screw
15 1260694 1 Asm., Exhaust Manifold
16 7555856 1 Washer, Flat
17 7552611 1 Washer, Lock
18 7517004 1 Screw
19 5811045 2 Gasket, Exhaust
20 5020746 1 Fitting, Drain Exhaust
21 5521398-13 1 Conduit, Flex
22 5432799 1 Valve, Pop-Off
23 7051008 1 Thermostat, 143 Degrees F.
24 5410781 1 Gasket, Thermostat
25 5131008 1 Cover, Thermostat, Machined
26 7041310 1 Spring, Compression
27 5410860 1 Seal, Thermostat Housing
28 5411479 1 Hose, Water Out
10/99
