A14

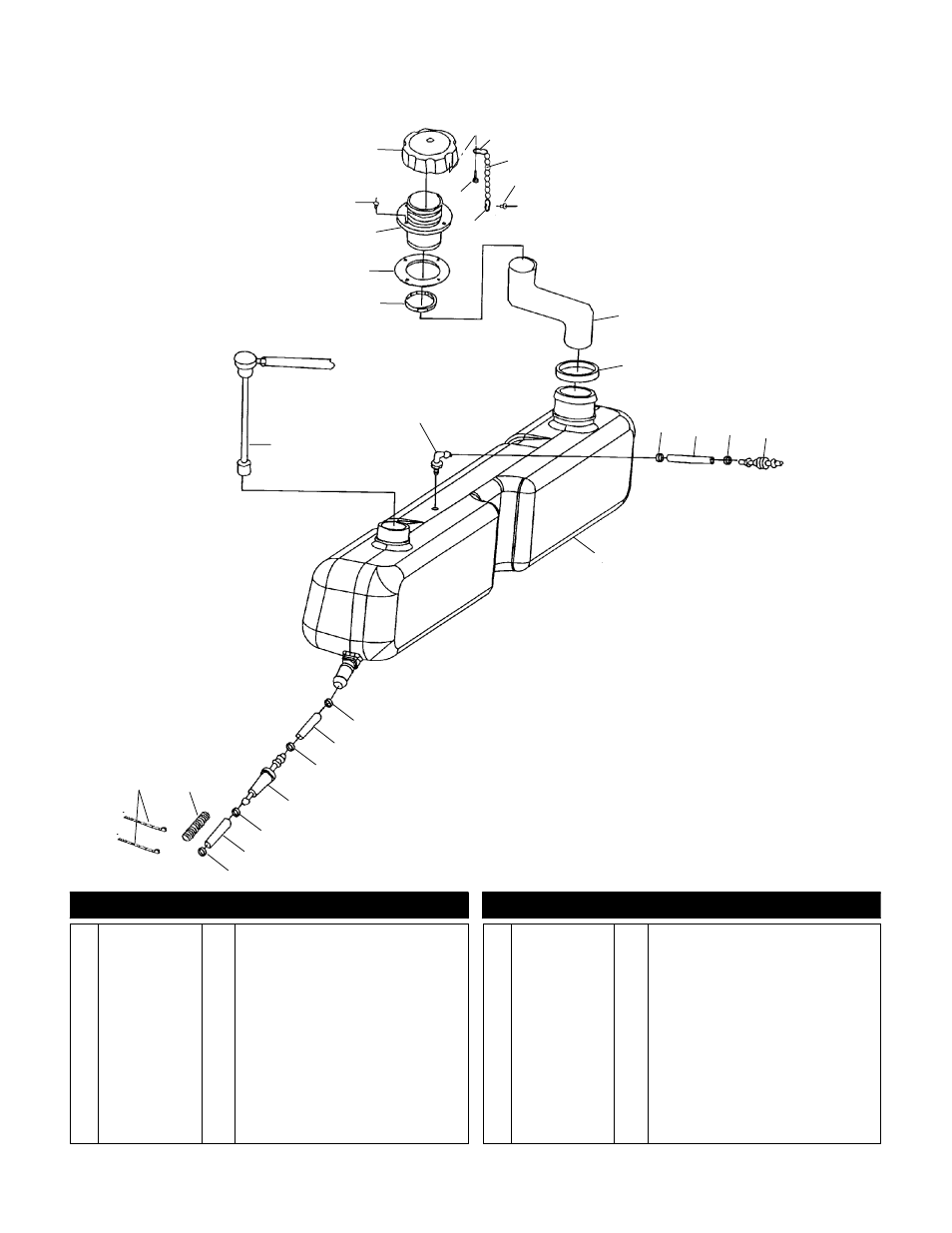

OIL TANK
VIRAGE W005197D and INT’L VIRAGE W005197I
11
5
8
19
9
16
20
7
10
6
22
17
9
15
18
14
14
21
21 15
17
1
2
3
4
1
12
13
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7080442 2 Coupling
2 7517241 1 Screw
3 7621229 1 Rivet
4 7080710 1 Chain
5 5432843 1 Cap, Oil Tank
6 7661038 4 Rivet
7 5433601 1 Inlet, Oil
8 5811554 1 Gasket, Oil Inlet
9 7080481 2 Clamp, Hose
10 7052130 1 Elbow, 90 Degree
11 2410131 1 Sender, Oil Level
12 7080138 2 Cable Tie
13 4010051-30 1 Conduit
14 7080307 2 Clamp, Hose
15 8450003-1525 AR Line, Fuel
16 2530015 1 Filter, Oil
17 7080474 2 Clamp, Hose
18 8450059-150 AR Line, Fuel
19 5433083 1 Tank, Oil
20 7052118 1 Valve, Check, Vacuum
21 7080483 2 Cable Tie
22 5411756 1 Hose, Oil Fill
7/00
