C9 starting motor – Polaris VIRAGE W005197D User Manual
Page 37

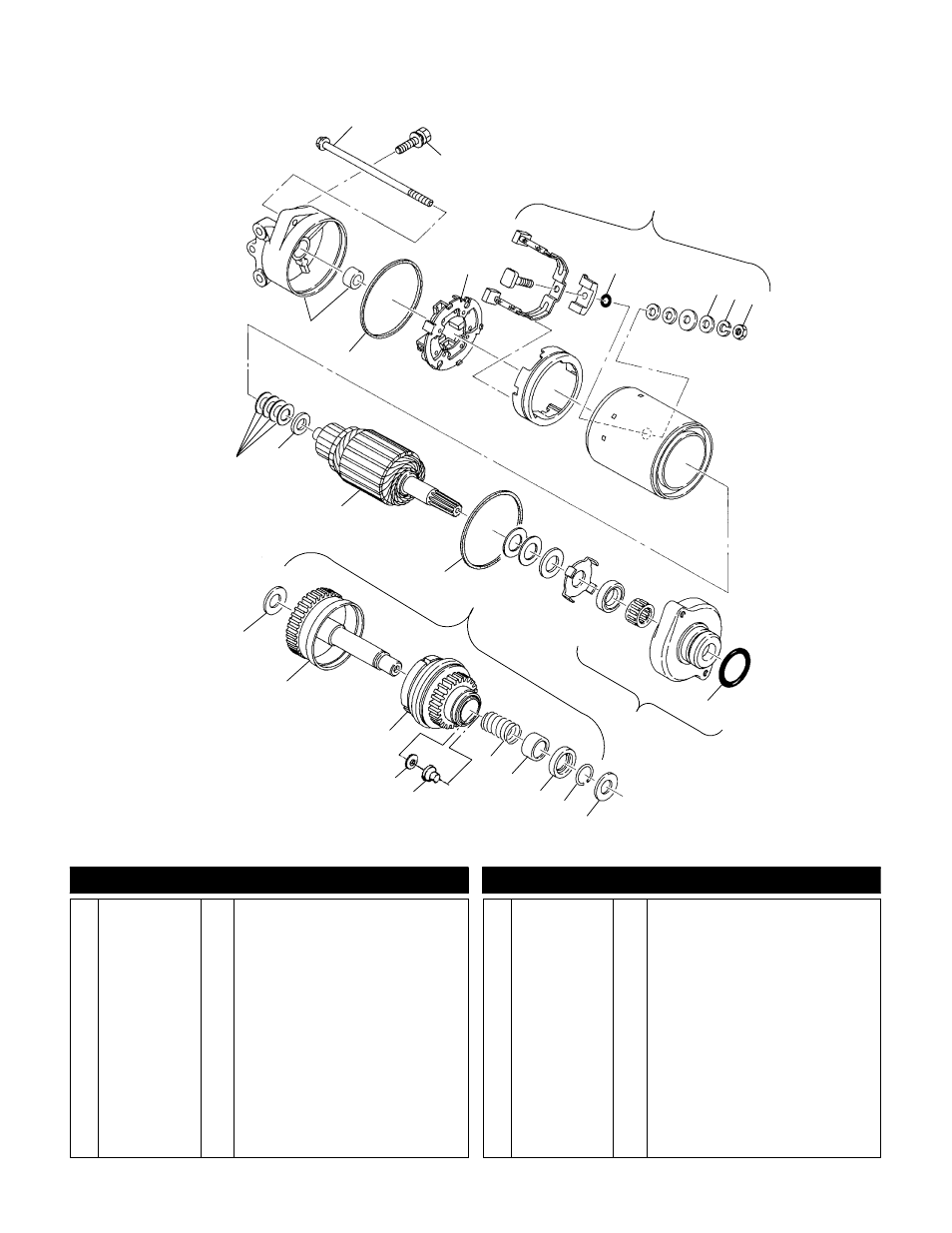

C9
STARTING MOTOR
VIRAGE W005197D and INT’L VIRAGE W005197I
12
1
2
3
5
6 7 8
9
11
9
16
17
18
19
20
21
25
17
13
15
10
22
23
14
4
24
Ref. Part No.
Qty.
Description
Ref. Part No.
Qty.
Description
4060118
1 Starter, Big Bore
1 3240113
2 Bolt, Through
2 7516807
2 Screw
3 3240111
4 Spring, Brush
4 3240115
1 Asm., Brush (Incl. 3-8)
5 3084408
1 O-Ring
6 3240119
1 Washer
7 3240117
1 Washer, Spring
8 3240116
1 Nut
9 3084405
2 Ring, Rubber
10 3240207
1 Asm., Rear Bracket
11 3240118
AR Washer, Thrust
12 3240112
1 Washer, Thrust
13 3240205
1 Asm., Armature
14 4060119
1 Asm., Bendix (Incl. 17-25)
15 3240206
1 Asm., Front Bracket
16 3240114
1 O-Ring
17 3083737
1 Washer
18 3240126
1 Ring, Snap
19 3240125
1 Stopper
20 3240123
1 Cover
21 7041457
1 Spring
22 3574214
1 Bushing, Flanged
23 7555908
1 Washer, Thrust
24 3240122
1 Asm., Gear
25 3240120
1 Asm., Gear (Incl. 17-24)
10/99
