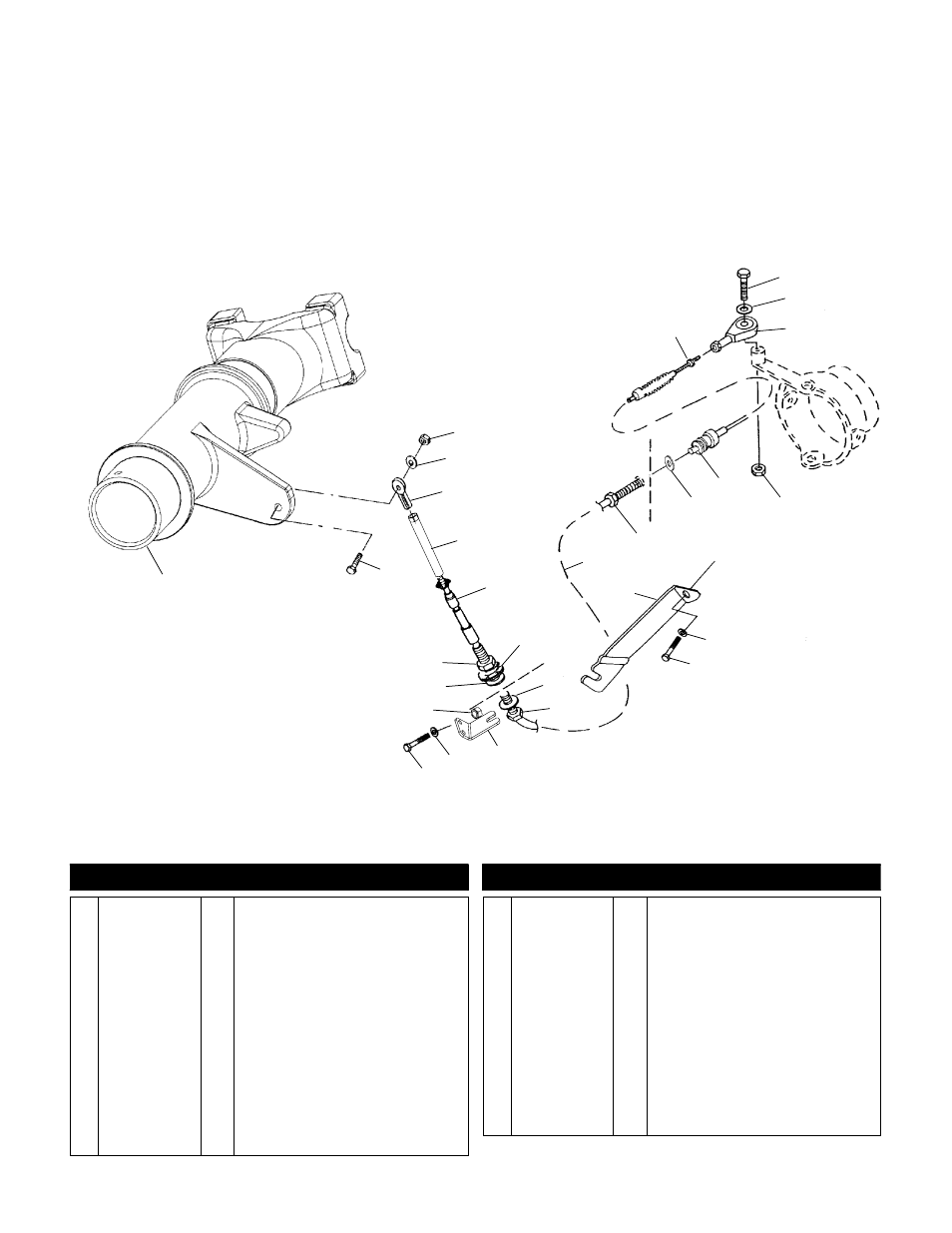

B2
STEERING
VIRAGE W005197D and INT’L VIRAGE W005197I
2
3
4
5
9
18
19
20
1
8
13
14
16
15
13
21
17
6
14
22
24
10
11
12
23
11
12
7
Ref. Part No.
Qty.
Description
Ref. Part No.
Qty.
Description
1 7542150
1 Nut
2 7515120
1 Screw
3 7555839
1 Washer
4 7060170
1 Rod End
5 7542133
1 Nut, Nylok
6 1860115
1 Washer, Steering Seal
7 1860117
1 Ring, Stopper
8 1860114
1 Nut, Steering Cable (Special)
9 7080723
1 Cable, Steering
10 5244681
1 Brace, Steering Cable
11 7555891
2 Washer
12 7516717
2 Bolt
13 7542528
2 Nut
14 1860103
2 Washer
15 7571625
1 Washer, Lock
16 1860105
1 Cover
17 7080931
1 Tube, Guide
18 7060154
1 Rod End
19 7555837
1 Washer
20 7541931
1 Nut
21 7512041
1 Screw
22 --------------
1 Column, Steering
(See Steering Pg. B1, Ref. 15)
23 7546704
2 Nut
24 5244290
1 Bracket, Steering Cable
10/02
