Polaris VIRAGE W005197D - Manual (Page 23)

B9

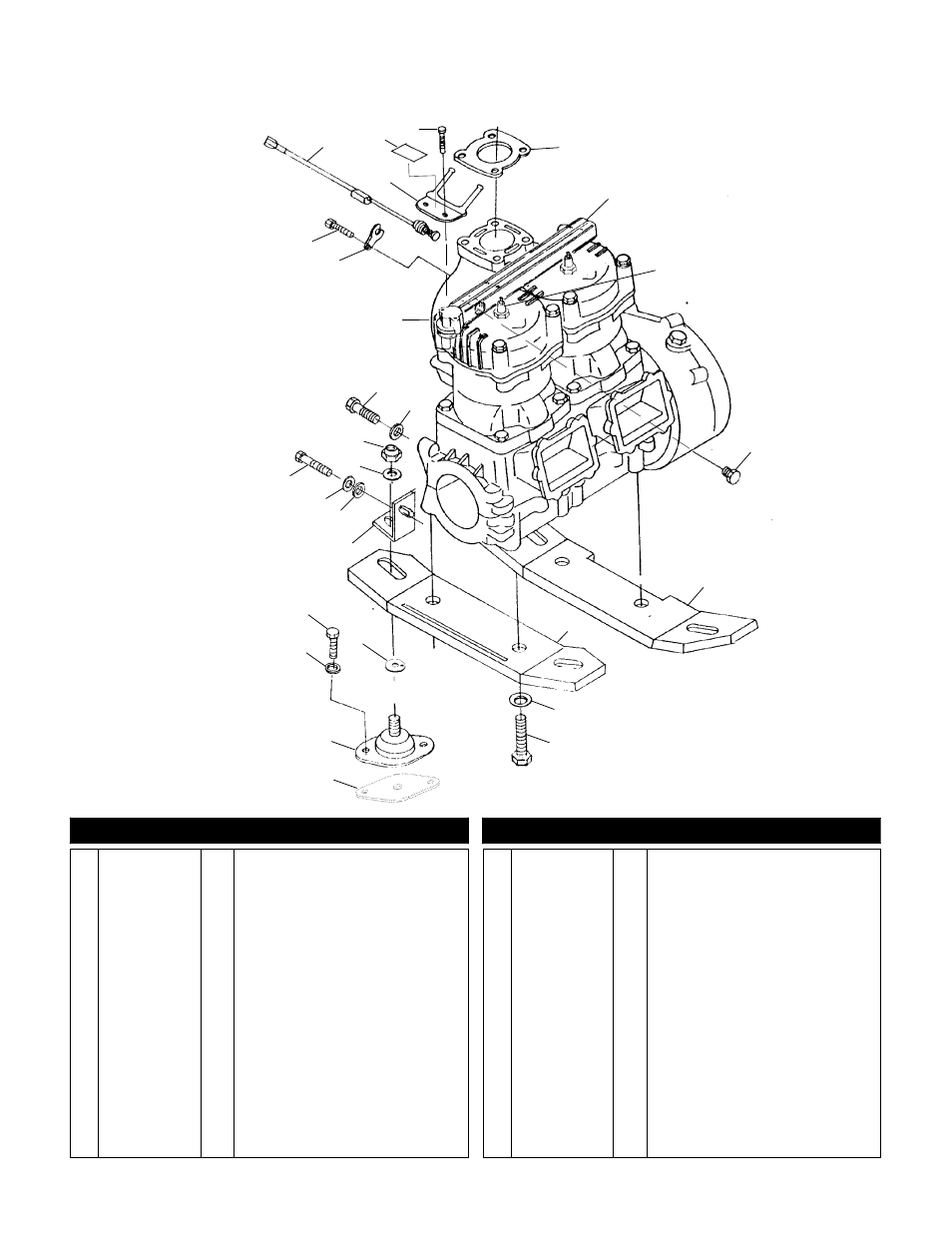

ENGINE MOUNTING
VIRAGE W005197D and INT’L VIRAGE W005197I
25
21
12
5
26
27
1
18
20
19
14
11
15
6
7
9
10
17
16
16
22
2
4
23
24
3
8
13
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 2410187 1 Asm., Temperature Switch
2 5242488 1 Ground, Spark Plug
3 7077026 1 Decal - Spark Plug
4 7515149 2 Screw
5 5830051 1 Gasket, Exhaust
6 -------------- 1 Decal - Warning (See Cylinder and
Manifold Pg. C4, Ref. 1)
7 -------------- 2 Spark Plug, NGK BPR8ES (See Cylin-
der and Manifold Pg. C4, Ref. 5)
8 7051527 1 Plug, Pipe
9 5630585 1 Plate, Front Mount
10 5630584 1 Plate, Rear Mount
11 7552609 4 Washer, Lock
12 7517330 4 Screw
13 5244508 2 Plate, Repair
14 3021103 4 Mount, Engine
15 5211727 AR Shim, Engine Mount
16 7552610 10 Washer, Lock
17 7517627 8 Screw
18 1060142 1 Bracket, Rear Muffler
19 7555835 2 Washer, Flat
20 7515357 2 Bolt
21 7555848 4 Washer, Flat
22 7542725 4 Nut
23 7556055 1 Washer, Lock
24 7517497 1 Bolt
25 2201620 1 Engine, Short Block NOTE: The Short
Block assembly contains a crankcase
assembly, cylinder, and cylinder head
assembly.
26 5240876 1 Clip, Retainer
27 7516603 1 Bolt
11/99
