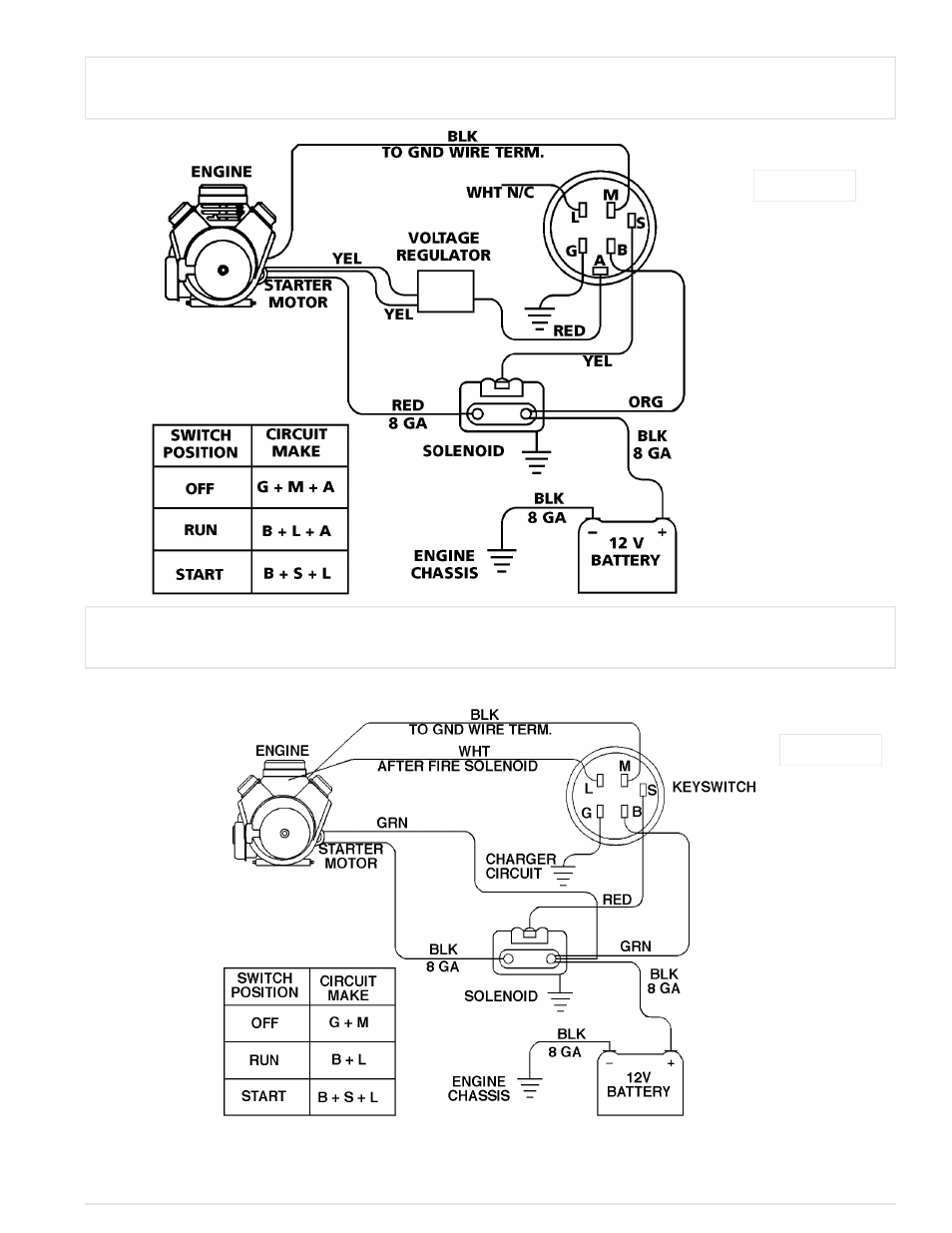

BASIC WIRING DIAGRAM

Electric Start Models (Models with Key Switch on Engine)

BASIC WIRING DIAGRAM

Electric Start Models (Models with Key Switch on Panel)

FIGURE A

9

English

FIGURE B
