S-Video Equipment
Note : Progressive-scan DVD players can be connected to the AV4 or
AV5 inputs only.

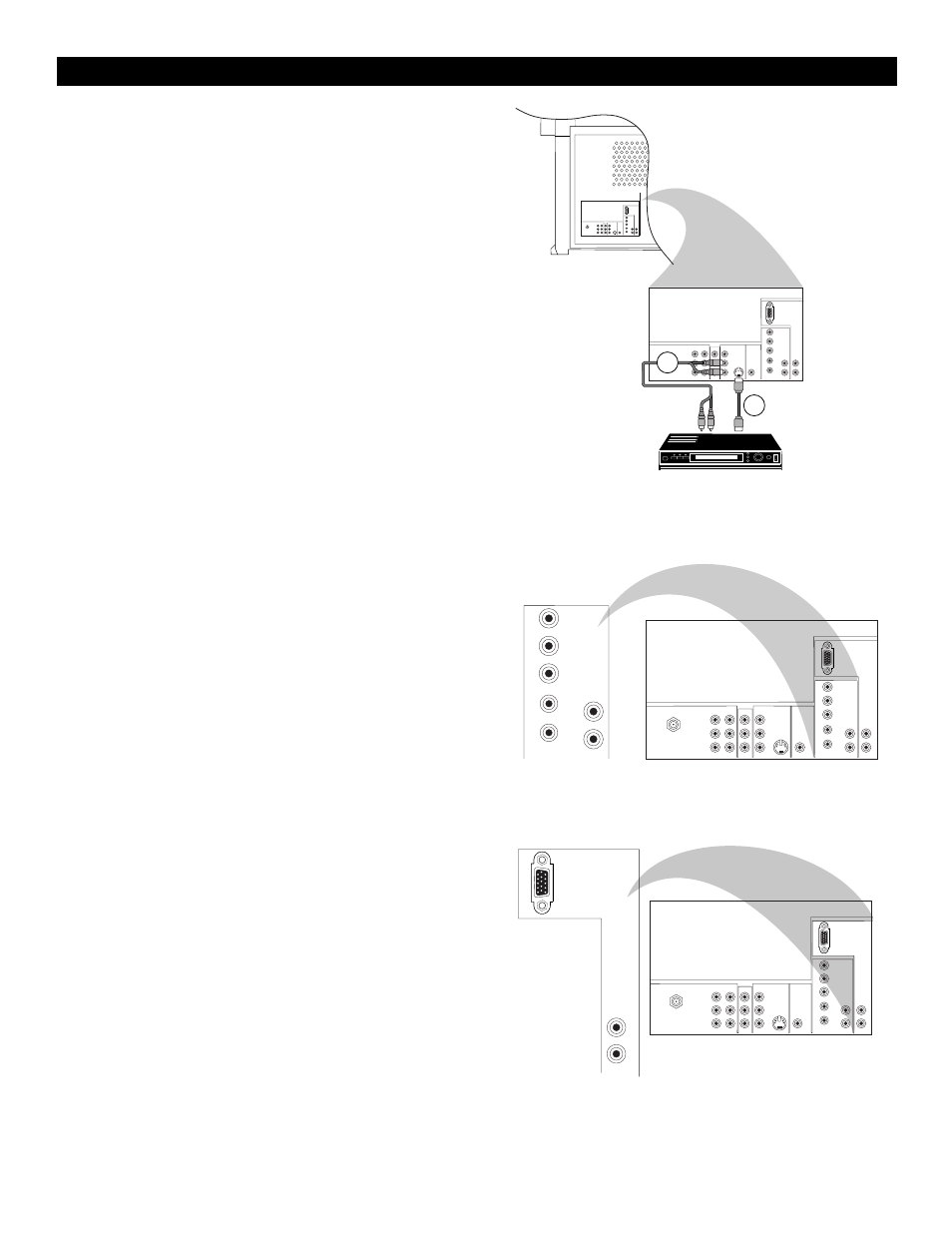

1 Connect an S-VIDEO cable to the INPUT-AV 2 S-VIDEO
input.
2 Connect the audio cables to the equipment’s AUDIO L (mono)
and AUDIO R sockets and to the INPUT-AV 2 AUDIO L
(mono) and AUDIO R sockets on your TV.
AV4 and AV5 Digital High-definition Inputs
When you have digital equipment with 1080i or 480p signal output
(60Hz) or 576p signal output (50Hz), connect it to the AV4 or AV5
inputs on your TV. Examples of such equipment are digital set-top boxes
and progressive-scan DVD players.
Connecting to AV4
Connect digital equipment with component video output (usually labeled
Y-Pb-Pr) or with RGB output (phono-type connectors) to the AV4
inputs for video and audio left and right. Also connect to the H and V
SYNC inputs on the TV if required for your digital equipment.
Note : The AV4 sockets are compatible with some digital equipment hav-
ing RGB outputs with “sync on green” or RGB with “separate H and V
sync.” Output standards for digital equipment, however, may vary by
manufacturer. No industry standards have been established for HD televi-
sion RGB signal systems, timing, synchronization, and signal strengths. If
the digital equipment you want to connect to your TV offers both compo-
nent video and RGB outputs, component video is the suggested connec-
tion to use. See the handbook for the digital equipment.
Connecting to AV5
Connect digital equipment with RGB or Y-Pb-Pr output to the AV5
inputs for video and audio left and right. A DB15 cable or adaptor cable
with a DB15 connector is required.
Note : The AV5 input cannot be used to connect a computer or any other
VGA device.
Notes regarding connecting to either AV4 or AV5 :
• For connections to either AV4 or AV5, be sure the TV’s color-space
setting matches the output (Y-Pb-Pr or RGB) of the digital equipment
you have connected to the AV4 or AV5 inputs. See instructions for
setting the TV’s color space on page 36.
• See the handbook for the high-definition equipment.
• If you notice scrolling images, wrong colors or no color, no picture or
even combinations of these on your screen, check to see if the connec-
tions have been done properly.
