Model 1082/C provides a V.35 interface on an M/34 female connector.
Model 1082/D provides an X.21 interface on a DB-15 female connector.
Line connection is made by an RJ-45 jack. Standard versions of Model
1082 are powered by a 100-240VAC (Universal) supply. The DC power
supply option supports any DC input between 36–72VDC.
2.3 1082 SNMP MANAGEMENT SOLUTIONS
The Model 1082 and Model 1082/144 are SNMP manageable when con-
nected to a rack-mounted Model 1092ARC (see Figure 1). SNMP manage-
ment is enabled through a 1001MC rack management card located in the
Patton Electronics Rack System.

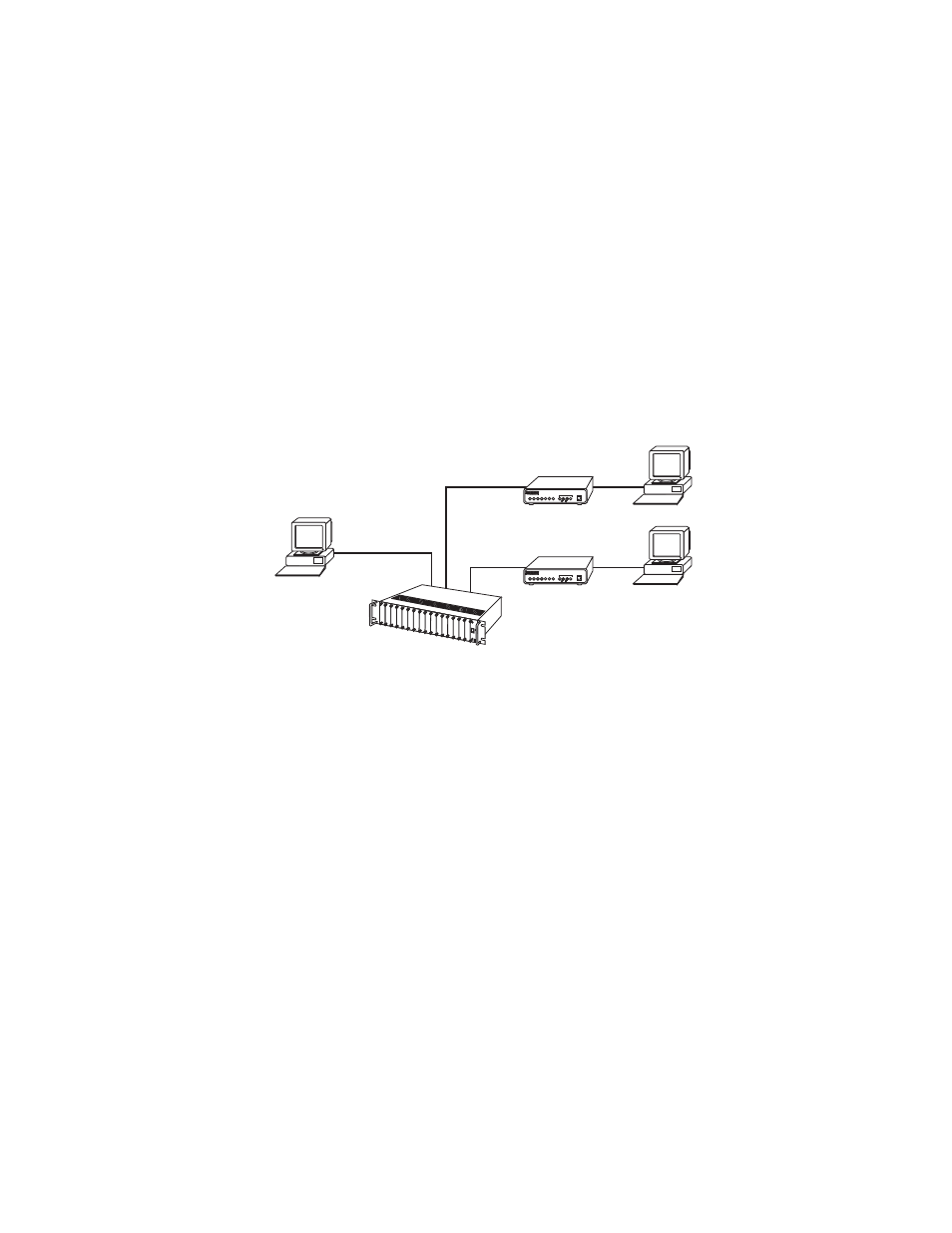

Figure 1. Typical application
HTTP/HTML Management
The 1001MC maintains HTML pages that can be viewed through a Web
browser. You can display remote statistics and configure Model 1082
parameters simply by entering the 1001MC’s IP address into the browser.
10Base-T
connection
to 1001MC
Management
Station
Rack-mounted
1092ARCs
2B1Q
connections to
remote 1082s
Model 1082
Model 1082
