The Model 1082 powers up as soon as it is plugged into an AC outlet--
there is no power switch.The Universal AC supply is equipped with a
male IEC-320
DC Power
The 36-60 VDC DC to DC adapter is supplied with the DC version of the
Model 1082. The black and red leads plug into a DC source (nominal
48VDC) and the barrel power connector plugs into the barrel power sup-
ply jack on the rear panel of the 1082. (See Figure 11).

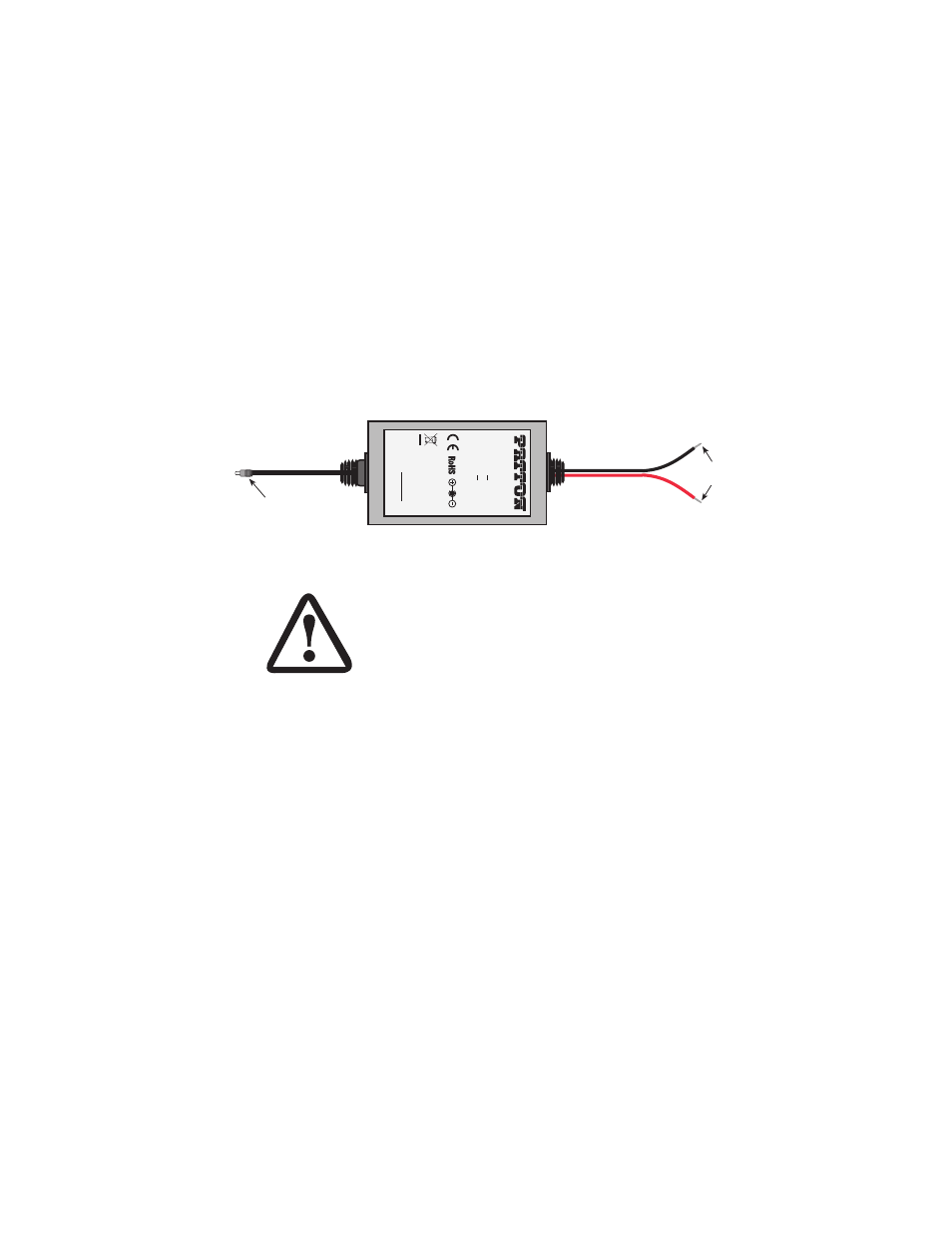

Figure 11. Connecting DC power to the 48V-PSM3 DC power supply
z
WARNING
There are no user-serviceable parts in the power supply
section of the Model 1082. Fuse replacement should only
be performed by qualified service personnel. Contact
Patton Electronics Technical support at +1 (301) 975-1007,
via our web site at www.patton.com, or by E-mail at
[email protected], for more information.
To Power
Supply Jack
To -48VDC
Source
-Vin
+Vin
SWITCHING POWER SUPPL
Y
MODEL
: SYD1
106-0505
INPUT
: 36-60V 0.2A
MAX
OUTPUT
: +5V 1.0A
OUTPUT
POWER : 5W MAX
S/N
: G01234567890 MADE IN CHINA
BY SUNNY
Black lead (-V)
Red lead (+V)
Barrel power connector
