The Panasonic KX-TDA 30 is
the perfect telephone system
for small to medium sized
businesses.
It offers a maximum of 12 trunks plus
4 IP channels and 52* extensions,
and can be easily expanded to suit
growing communication needs.
Key features
●
Caller ID on analogue lines with CLI
presentation to digital & SLT handsets
●
19” rack mountable (option)
●
Multi-tenancy operation
●
Advanced hotel features (v2.0)
●
Digital XDP - doubles the number
of digital extensions*
●
DISA with messages
●
VoIP enabled (trunks only)
●
Free hotel application interface
software
(HAI - see p21)
Voice mail options
KX-TDA 3192 - internal voice mail card
●
2ch voice message card
●
52 mailboxes
●
60 minutes recording time
●
Maximum 2 cards per system
●
Fits into available option slot
Alternatively the KX-TVM 50 or KX-TVM 200
voice mail systems can be used with this
system
(see p17) .

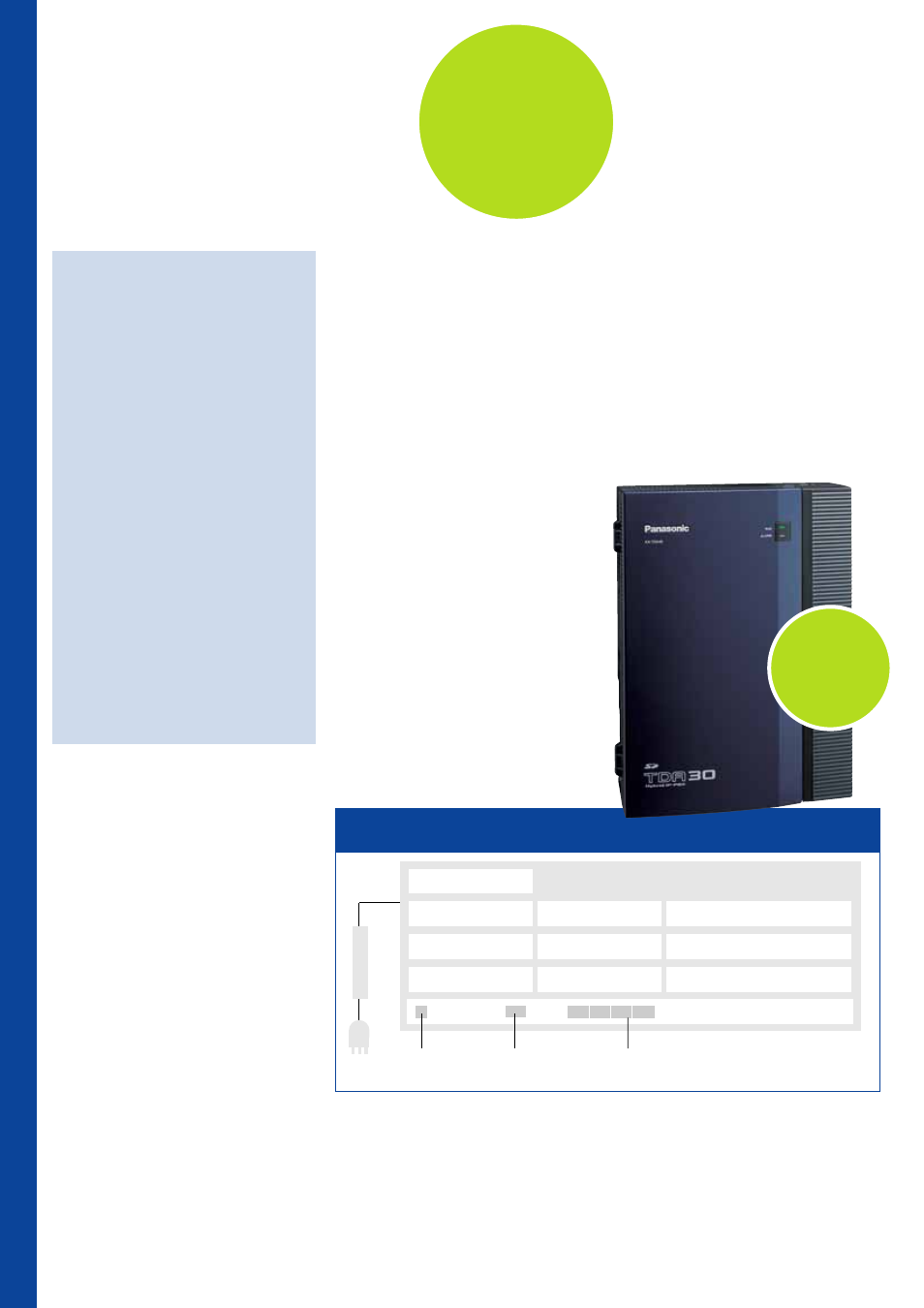

KX-TDA 30
Ideal for up to 52* users
Trunk options: Analogue, ISDN2, IP & SIP
AC adaptor
option slot
option slot
option slot
line card slot
**
line card slot
line card slot
8 extension card slot
4ch VoIP G/W card slot
8 extension card slot
Main board
option slot
USB port
for CTI / Prog Serial RS232 port
for SMDR / Prog 4 hybrid extns
1
(built-in)
Initial configuration
- 0 lines
- 12 extensions
(4 digital + 4 DXDP + 4 SLT)
Configuration without MEC (v2.0)
Extension total 28
Example:
Single line telephone
4
Proprietary telephone 24
Configuration guidelines
● 2nd power supply maybe required
Power requirements
System comes with PSU for up to
24 units. If more than 24 units required
a second PSU needs to be included. Each
extension type has a power consumption
as follows:
SLT - 1 PU (power unit)
KX-T 76 series handsets - 1 PU
S-bus extension - 2 PU
DECT cell station - 4 PU
Old KX-TD handsets - 4 PU
System configuration
Internal
voice mail
option
8
New
SIP IP card
now available
- see page
18 for
