KX-TDA 15
Ideal for up to 20 users
Trunk options: Analogue, ISDN2, IP & SIP

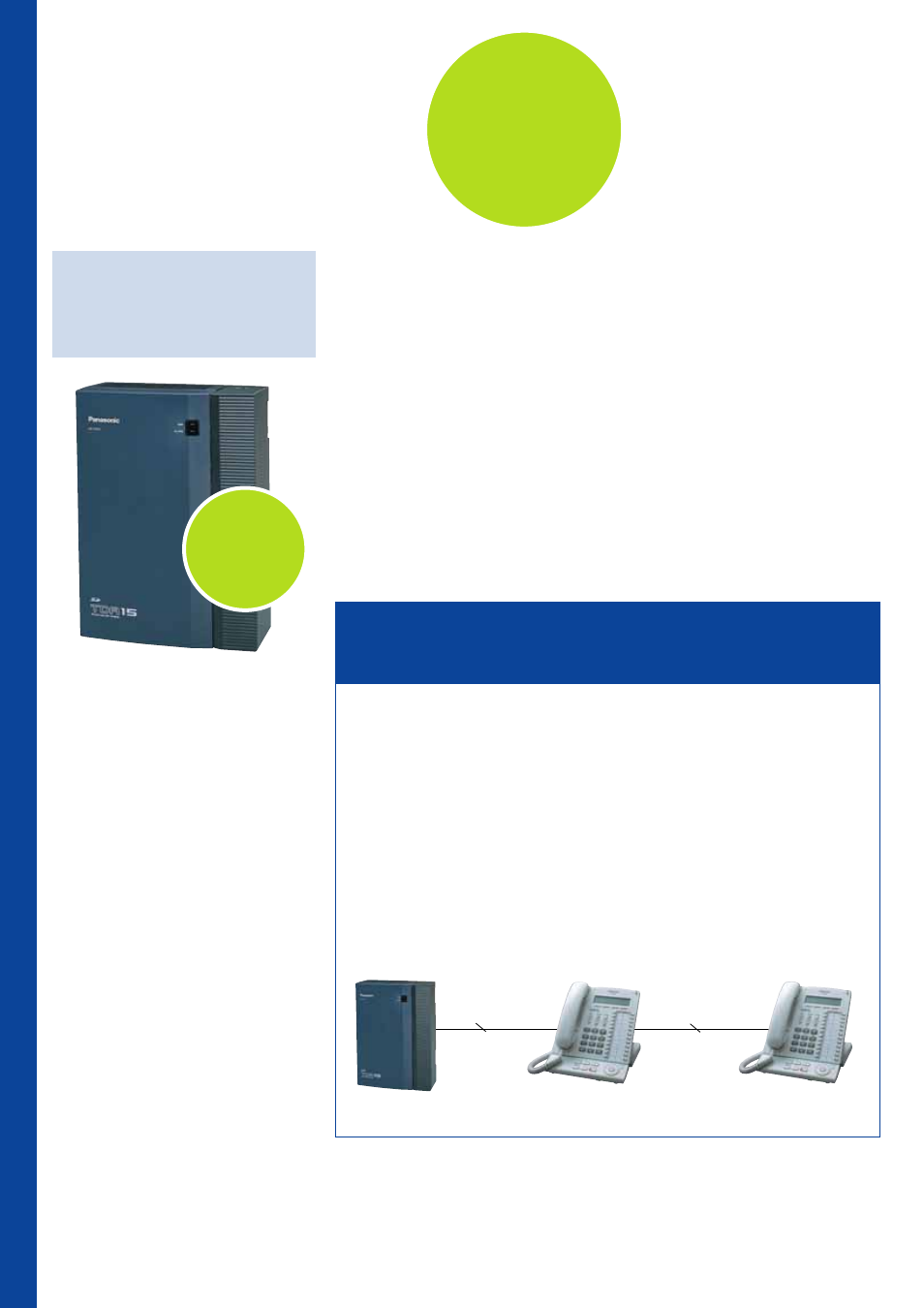

The Panasonic KX-TDA 15
combines PBX reliability with
IP technology offering an
efficient, simple and flexible
communication solution.
Key features
●
Supports CLI to 8 analogue extensions
●
19” rack mountable (option)
●
Multi-tenancy operation
●
Advanced hotel features
●
DISA with messages
●
VoIP enabled (trunks only)
●
Free hotel application interface
software
(HAI - see p21)
Voice mail options
KX-TDA 3192 - internal voice mail card
●
2ch voice message card
●
20 mailboxes
●
60 minutes recording time
●
Maximum 2 cards per system
●
Fits into available option slot
Alternatively the KX-TVM 50 or KX-TVM 200
voice mail systems can be used with this
system
(see p17) .
It is supplied with 4 ISDN channels built-in,
and provides an extremely cost effective
solution for smaller applications. KX-TDA 15
offers a maximum of 8 trunks plus 4 IP
channels and 20 extensions, and can be easily
expanded to suit a growing company’s needs.
Internal
voice mail
option
Each KX-T 7600 series digital keyphone
has a DXDP which allows an additional
keyphone to be connected to the system
giving users extra flexibility at no extra cost.
The KX-TDA 15 system requires the initial
keyphone to be connected to a hybrid
extension port.
The secondary handset is then connected
to a port on the master phone, providing
a totally separate extension (see diagram
below).
When connected to a hybrid port,
XDP is also available.
●
Each proprietary digital keyphone
(excluding the KX-T 7668) has an
Extra Device Port (XDP) which allows an
additional SLT to be connected to the
system
●
Each hybrid port can support both DXDP
and XDP
(i.e. 2 x 7600 series keyphones
+ 1 x SLT per hybrid extension port)
●
Each keyphone and SLT can have a
unique extension number
●
The SLT can be programmed in
parallel mode – primary keyphone
& SLT will ring as one
KX-TDA 15
Maximum
500m cable
Maximum
50m cable
T7636, T7633, T7630,
T7668
T7636, T7633, T7630,
T7668
Initial configuration
- 4ch ISDN2
- 12 extensions
(4 digital + 4 DXDP + 4 SLT)
Digital Extra Device
Port (DXDP) Extra Device Port
(XDP)
6
New
SIP IP card
now available
- see page
18 for
more info
