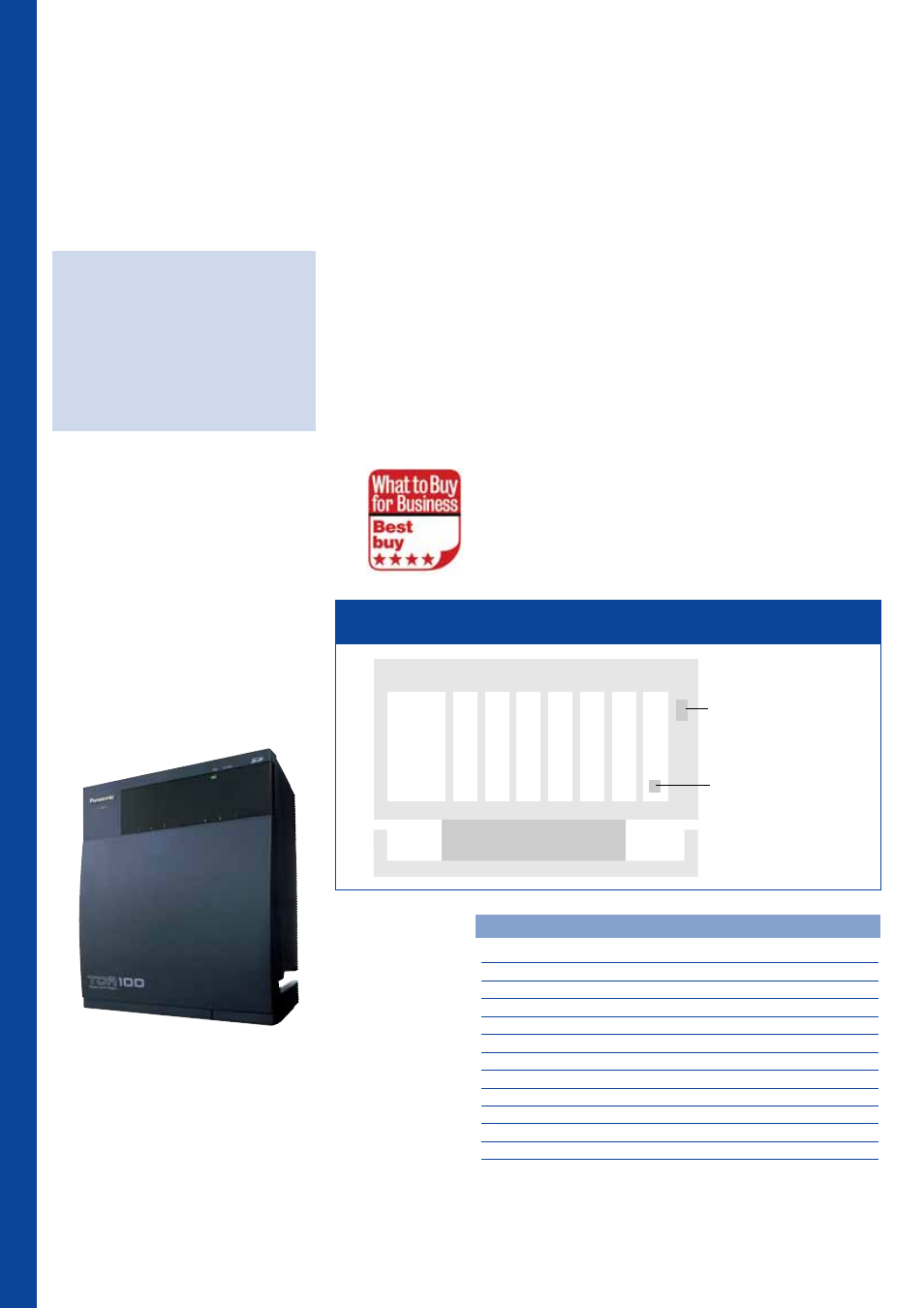

5 slots system configuration
KX-TDA 100
Ideal for up to 128* users
Trunk options: Analogue, ISDN2/30 & IP
An up-to-date business
communications system
that works seamlessly with
IT and combines voice
and data in one low cost,
next-generation, hybrid
IP-PBX solution. KX-TDA is a sophisticated combination
of PBX reliability and IP technology
offering efficient and flexible communication.
It can be configured to meet your present
needs and expand as your applications
grow or change, making it a cost effective
future-proof investment.
Extra system options available:
●
Voicemail / auto attendant
●
Call management software
●
Cordless telephony (DECT)
●
Integrated headsets
●
Computer Telephony Integration (CTI)
●
Remote branches and Home Worker
Solution
●
Email integration
power supply free slot free slot free slot free slot free slot option card slot
MPR (CPU)
USB port
for CTI / Prog
Serial RS232 port
for SMDR / Prog
1 2 3 4 5
Initial configuration
- 0 lines
- 0 extensions
Configuration without MEC (v2.0)
Extensions 64
Trunk ports 64
* Requires Memory Expansion Card (MEC) using DXDP
for maximum configuration - call sales for details
Award Winner,
February 2005
10
Central control units
22901 KX-TDA 100 CCU (KX-TDA 100) inc PSU £1155.00
Line cards
25893 4 channel VoIP trunk card KX-TDA 0484 £675.00
26835 16 channel VoIP trunk card KX-TDA 0490 £3000.00
22919 ISDN30 card KX-TDA 0290C £1250.00
22920 E1 card KX-TDA 0188C £1250.00
22921 8 channel ISDN2 card KX-TDA 0284C £630.00
22922 16 channel ISDN2 card KX-TDA 0288C £950.00
22923 8 port analogue line card KX-TDA 0180X £625.00
22924 16 port analogue line card KX-TDA 0181X £1100.00
22925 8 circuit E&M card KX-TDA 0184X £630.00
Code Description SSP ex VAT
Configuration guidelines
The system has 5 slots available for
expansion. These slots can be
populated with either line cards,
extension cards or IP cards. A maximum
4 extension cards or 4 line cards can be
added, to increase the capacity. The
system can accommodate up to 2
DECT interface cards.
Each analogue line card and extension
card requires an MDF cable. There is
also an option slot for adding features
such as doorphone, outgoing
messages and multi-party audio
conferencing.
