KX-TDA VoIP Options
A popular application for home
workers and branch offices; the
IP extension card allows remote
users to connect IP handsets to
a KX-TDA system giving them
the full feature set as if they
were in the office environment. By installing an IP extension card into the
KX-TDA system, up to 16 IP handsets can
be connected regardless of the location of
the users from head office.
●
A firewall requires a VPN tunnel back
to the PBX
IP Extension Card
●
16ch VoIP extension card (KX-TDA 0470)
Requires: IP handset (KX-NT 136)
(or KX-TDA 265 or NCS8100)
Optional: AC adaptor (KXA 237E )
Cost effective solutions for linking
branch offices and homeworkers
to their head offices.

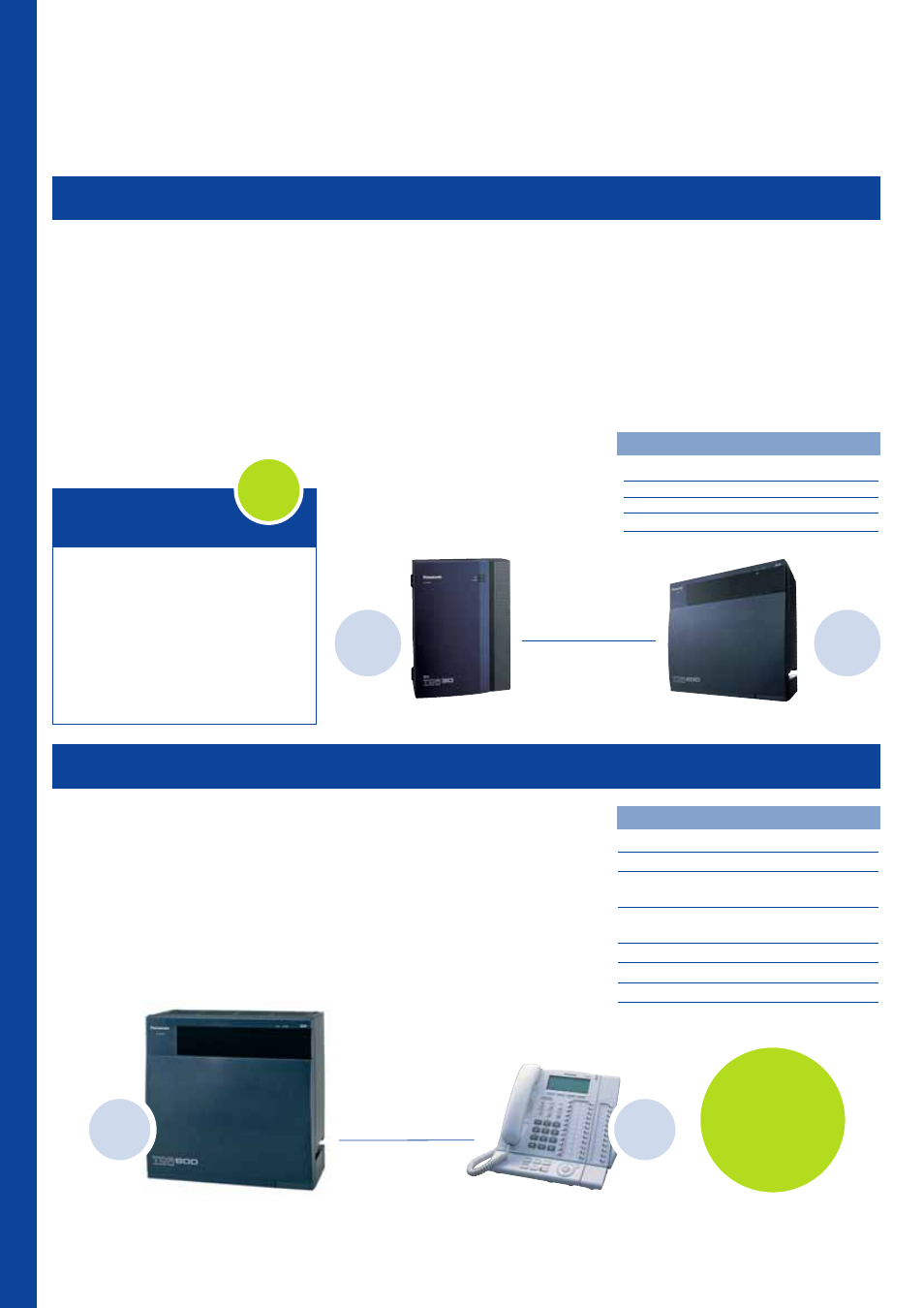

KX-TDA 30 with KX-TDA 3480 extn card KX-TDA 200with KX-TDA 0484 extn card
ADSL
Home
office
● A 512k ADSL connection - has a 512k
download and 256K upload speed
Normal ADSL connections at worst can be
shared between 20-50 other users.
In this situation it’s advisable to use an
uncontended ADSL connection, or SDSL for
home workers. For multiple users alternative
links may be required.
● SDSL connections - provides same
speed in both directions
31775 KX-3450x 4 ch SIP trunk card £405.84
31776 KX-3451x 4 ch SIP DSP card £202.92
24721 4 channel VoIP trunk card KX-TDA 3480 £675.00
25893 4 channel VoIP trunk card KX-TDA 0484 £675.00
26835 16 channel VoIP trunk card KX-TDA 0490 £3000.00
Head
office
Code Description SSP ex VAT
Code Description SSP ex VAT
31774 KX-TDA 3470x 4 ch IP extension card £581.10
26830 16 channel VoIP extension card KXTDA 0470 £535.00
26831 KXNT 136 IP handset - white £220.00
24 key 6 line backlit LCD
26832 KXNT 136 IP handset - black £220.00
24 key 6 line backlit LCD
30028 KXNT 265 IP handset - white 8 key 1 line £150.00
30029 KXNT 265 IP handset - black 8 key 1 line £150.00
30517 NCS8100 IP softphone (6pk) £660.00
26833 KXNT 136 power supply unit £29.00
IP handsets
(maximum 16)
eg. ADSL / SDSL,
private circuit
KX-TDA 600 with KX-TDA 0470
extension card
This feature allows users to seamlessly
connect multiple KX-TDA systems together,
regardless of what system is in each location.
By placing a VoIP trunk card in each KX-TDA
unit, your customers can make and transfer
calls between sites for free.
●
Up to 512 systems can be networked
together
●
A router is required when multiple
devices are at the end of a circuit
IP Trunk Cards
●
For the KX-TDA 15 & 30 install:
4ch VoIP trunk card (KX-TDA 3480)
●
KX-TDA 100 & 200:
4ch VoIP trunk card (KX-TDA 0484)
●
KX-TDA 100 & 200 (v2.0):
16ch VoIP trunk card (KX-TDA 0490)
System connectivity
Each call will utilise 13k of bandwidth,
therefore consideration must be given to
what type of connection (ADSL, SDSL, etc)
each individual will use to access the
KX-TDA system.
18
IP Networking
SIP Trunks for low
cost tariff VoIP calls
The SIP-GW4 is a brand new gateway
card enables the KX-TDA 15 & 30 to
connect SIP based Internet Telephony
Service Providers (ITSP).
This in turn provides low cost calls VoIP
calls over a broadband IP network.The
SIP-GW4 comes with 4 port SIP trunks
which can be increased to 8 ports with
the SIP-DSP4 (KX-TDA 3451) module.
Now
compatible
with KX
-TDA
15 & 30
IP Extensions - Ideal remote workers solution
Head
office
Branch
office
NEW
