Important
• The KURO LINK function name used on
the web and in catalogues is referred to
as HDMI Control in the operating
instructions and on the product.
• Depending on the type of Flat Screen TV,
some HDMI input terminals do not
support the HDMI Control function. For
details, see the operating instructions
supplied with your Flat Screen TV.
• To use the following functions, set this
unit’s HDMI Control to Off (page 118).
– When you use Auto Start Recording
(page 45).
– When you want this unit to
automatically switch off upon
completion of timer recording. (When
HDMI Control is set to On, this unit
does not automatically switch off if your
Flat Screen TV is switched on upon
completion of timer recording.)
– When using the Video Control function
of an external component.
– Child lock settings (page 43).
• HDMI Control may not operate properly
if you do not use a High Speed HDMI
cable.
• Controls may not function properly in
certain situations, such as immediately
after you have connect an HDMI cable,
turn this unit’s power off or remove the
power cable for this unit or the
connected component. If you experience
any problems, set HDMI Control to On
for all connected units, and then display
the pictures stored on this unit on your
Flat Screen TV to improve the situations.
• We cannot guarantee this unit will work
with HDMI control-compatible
components other than those made by
Pioneer.
Connecting other AV sources

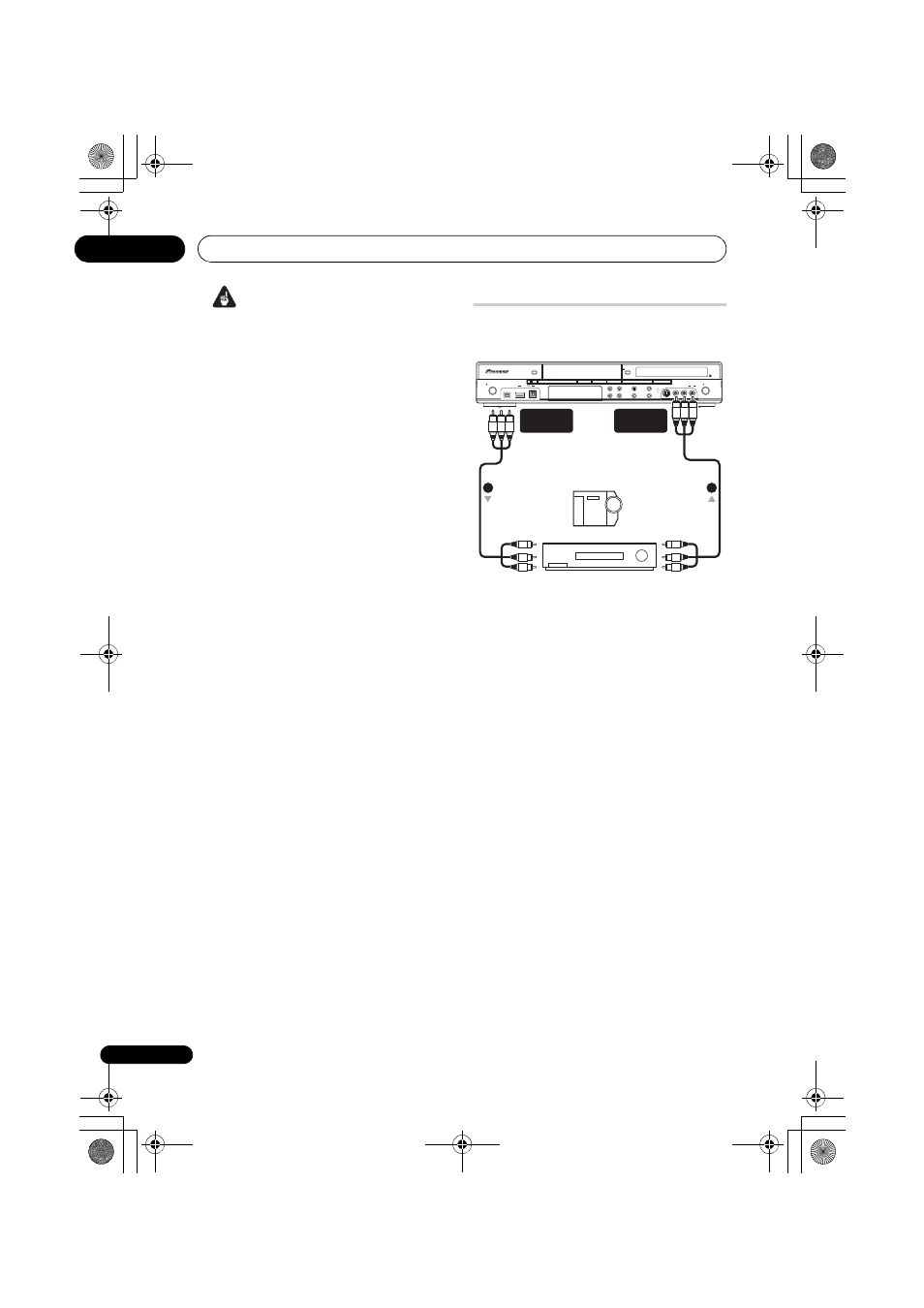

Connecting a VCR or analog
camcorder
1 Connect a set of audio and video
inputs of your VCR or camcorder to a set
of outputs on this recorder.
This enables you to record from this recorder
to your VCR or camcorder.
• You can use standard video or S-Video
cables for the video connection.
2 Connect a set of audio and video
outputs of your VCR or camcorder to a
set of inputs on this recorder.
This enables you to record tapes from your
VCR or camcorder.
• You can use standard video or S-Video
cables for the video connection.
• The front panel connections make
convenient connections for a camcorder
input.
• When connecting an external AV source
that only supports monaural sound, only
insert the left (white) audio jack to this
device. Doing so will allow the same
sound track to be recorded to both
channels. You must connect to the
INPUT 2 jack on the front panel.
Analog camcorder
VCR
DVD HDMI
OPEN/CLOSE
STANDBY/ON USB DV IN
CH INPUT SELECT
STOP REC ONE TOUCH COPY INPUT 2 VIDEO S-VIDEO L(MONO) R AUDIO REC
REC MODE
HDD
HDD/DVD
(Rear panel)
AUDIO/VIDEO
OUTPUT
(Front panel)
AUDIO/VIDEO
INPUT
1 2
From audio/
video output
To audio/
video input
