NAM

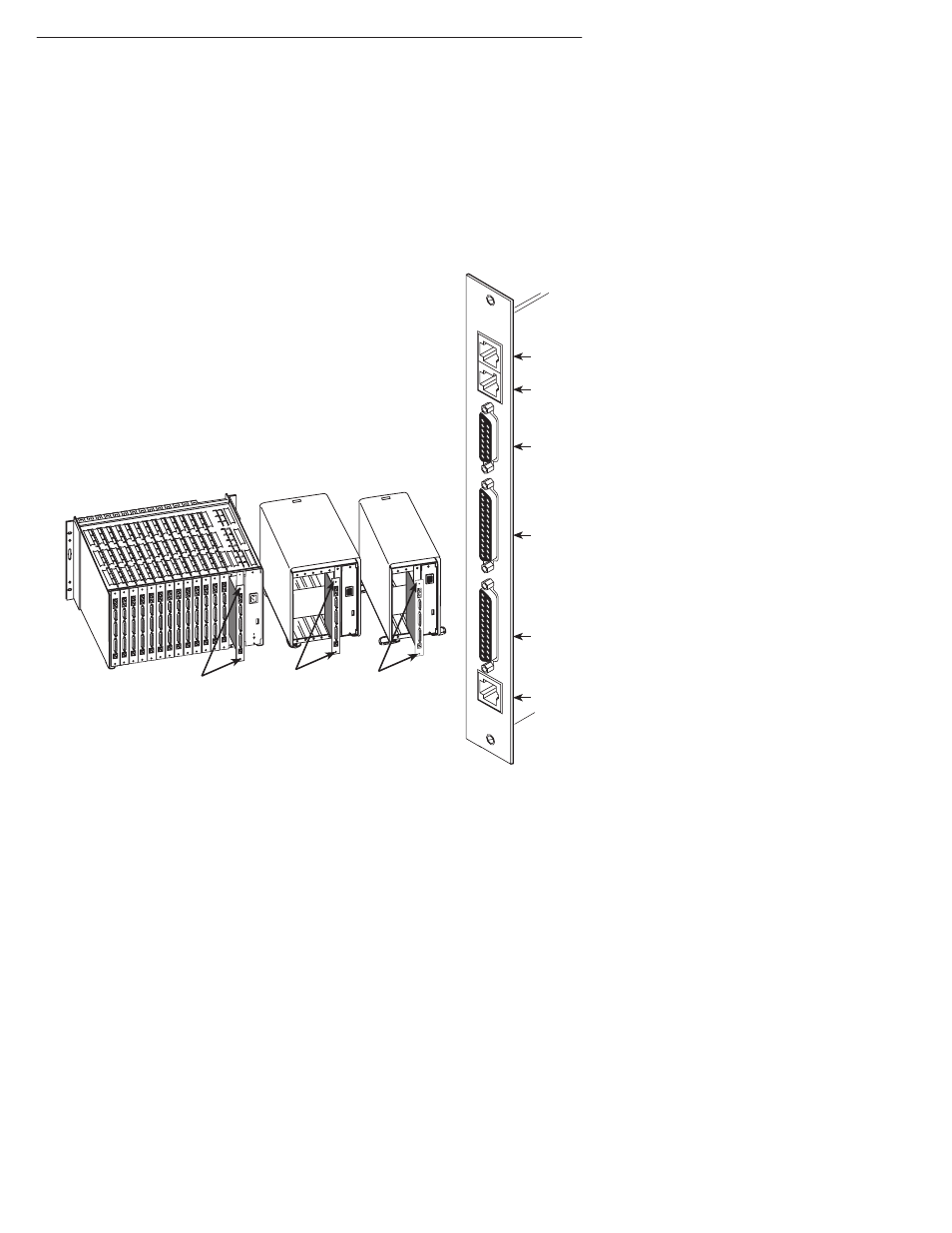

Rear Panel
SINGLE
T1 NAM
NET
DBM
DSX
PO
RT 1
PO
RT 2
COM
NET
DBM
(For
Future
Use)
DSX
Port 1
Port 2
COM
98-15050-03
4
Tools Required
H A small Phillips screwdriver (#1 or #2) to install the T1 NAM
H
A small, flat-blade screwdriver to install the:
— I/O card
— Cable connections
Installing the I/O Card
The NAM’s I/O card provides the COM port, network, DSX and
DTE connections. The I/O card inserts directly behind the NAM
that it supports. Slot numbers are identical (in this case, Slot 01)
to facilitate correct installation.
1. Remove the I/O card from the shipping box. Handle only
by the top and bottom edges to avoid damaging the card.
2. At the rear of the housing, align the I/O card with the
upper and lower tracks of the slot. Push gently towards
the midplane until it stops and you cannot push the card
any further.
97-15748a
Screws
Rear View
Screws
2-Slot 5-Slot
Screws
Access Carrier
3. There are two captive screws on the I/O card. Using a
screwdriver, alternately tighten each screw until the
screws are all the way in.
