How to install the 5-inch bay units (continued)
5

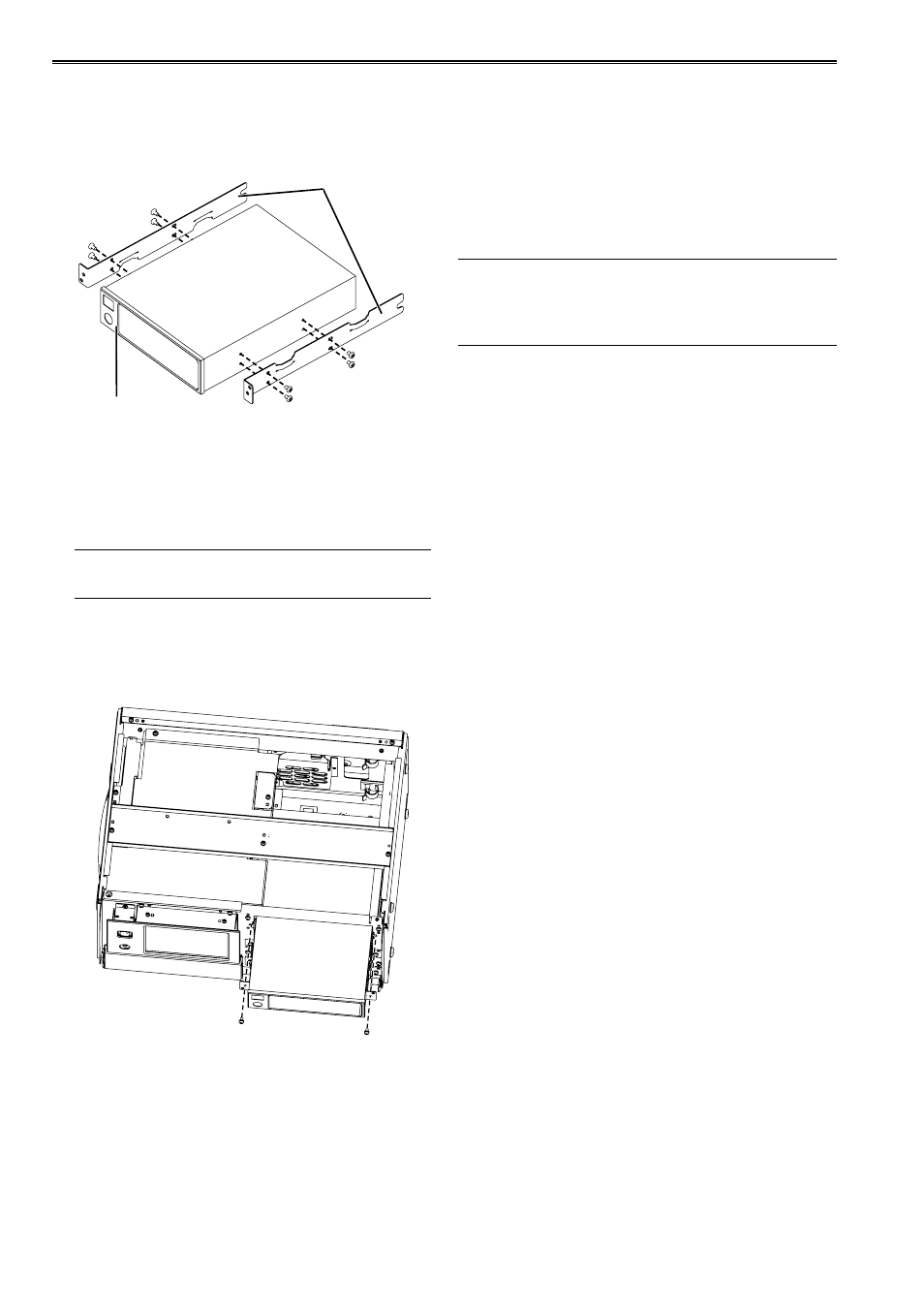

Install the removed brackets on the 5-inch
bay unit.
(Use the screws provided.)
5-inch bay unit brackets
5-inch bay unit to install
6
Insert each 5-inch bay unit on a shelf, and
then connect the wire harnesses to the power
connector and SATA signal connector on the
back of the bay unit.
For connection details, refer to the operating
instructions for the 5-inch bay units.
7
Anchor the 5-inch bay unit brackets to the
main unit using the left and right anchoring
screws.
8
Put the front panel back in its original
position (using the 4 screws).
9
Close the top panel, and tighten the top panel
screws (x2).
We recommend you to use the following HDD:
Connect IF:
SATA-2
Appearance: 3.5-inch internal type
Rotating number: above 7200
